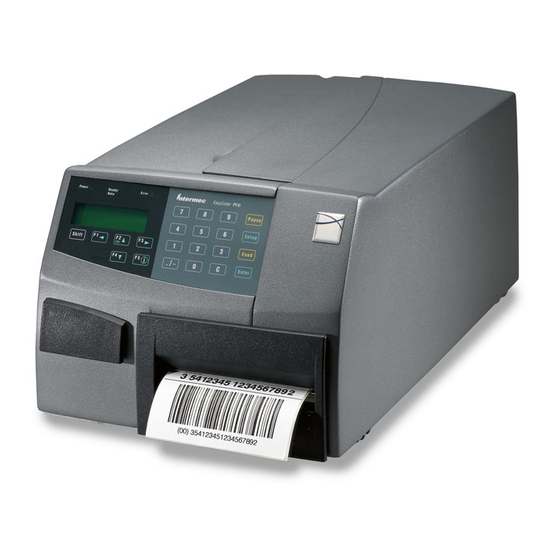

Intermec EasyCoder PF4i Install Manual

Use these instructions to install the tray onto the PF4i Cutter for the
EasyCoder PF4i Printer. The shipping box contains the tray, secure plate,
screws, washers and these instructions.
To install the tray
1 Attach the tray to the cutter by inserting the hinges of the tray into the
slots on the cutter.
Tray
2 Slide the flange at the rear of the secure plate into the slot between the
cutter and the front of the printer.
Screw
3 Align the alignment pins on both sides of the secure plate to the tray.
4 Insert and tighten the screws and washers to secure the tray to the secure
plate.
Cutter Tray Installation Instructions
Alignment pin
Secure plate
Screw
PF4i
