• The length setup creates an emergency stop, which works when
the printer is set up for "Label (w gaps)", "Ticket (w mark)", or
"Ticket (w gaps)." If the label stop sensor has not detected a gap or
mark within 150% of the set length, the media feed is automatically
stopped to avoid feeding out a whole roll of media, because of a sensor
malfunction.
By setting up the X-start, the Width, and the Length, you will create a
print window inside which the printing can be performed. Any object or
fi eld extending outside the print window in any direction will either be
clipped or cause an error condition (Error 1003 "Field out of label"), see
Intermec Fingerprint v8.xx, Programmer's Reference Manual.

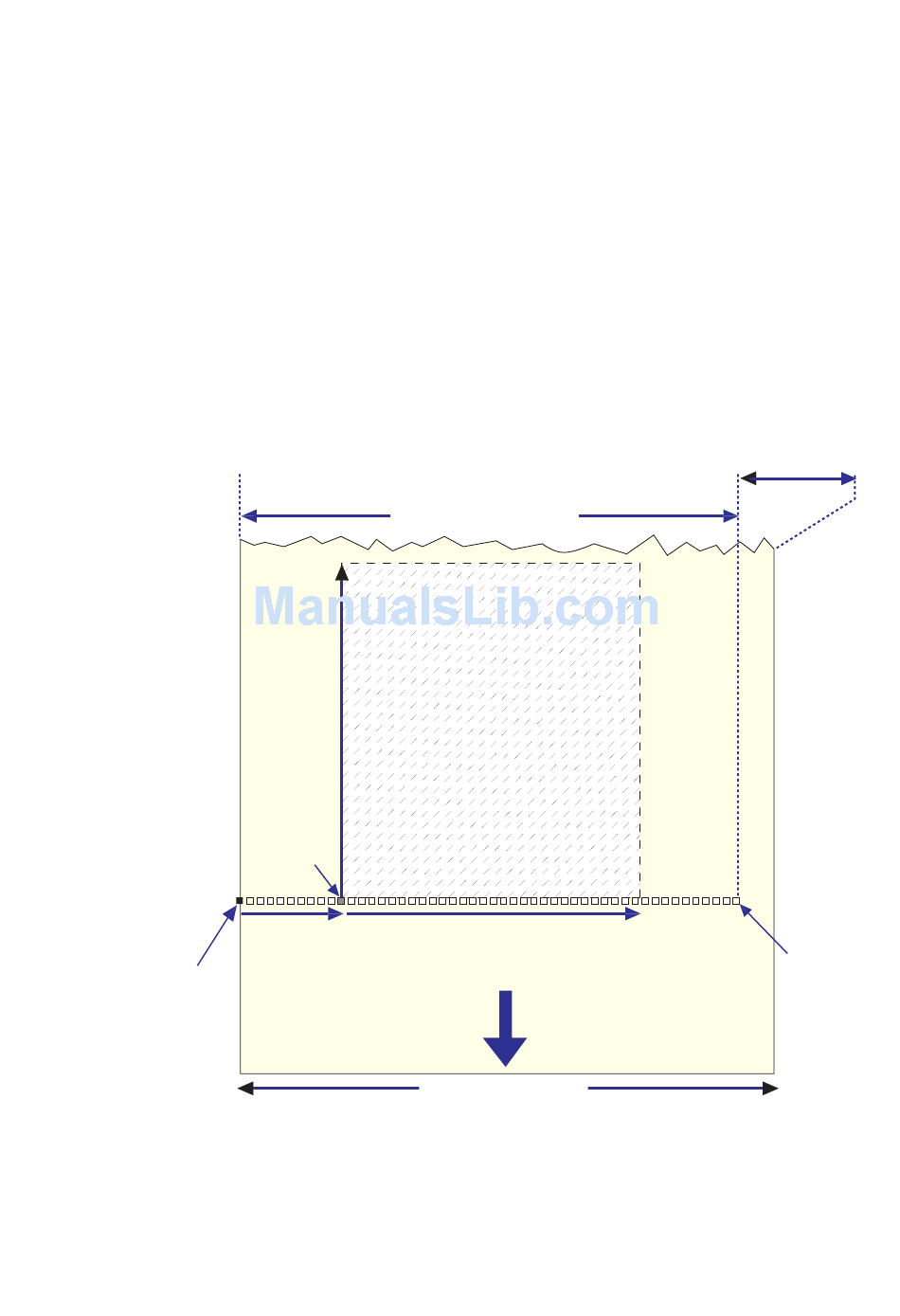

Print Window (8 dots/mm standard printhead)
Length
Origin
Dot-line
on printhead
X-start
Dot #0
Intermec offers a number of non-standard thermal printheads for the
EasyCoder PF4i, see Chapter 9.
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
max. 104.0 mm (4.095 in)
PRINT PRINT PRINT
WINDOW WINDOW WINDOW
Width (1-832)
FEED
DIRECTION
25-114.3 mm (1-4.5 in)
Chapter 6—Setting Up the Printer
10.3 mm (0.41 in)
Dot #831
