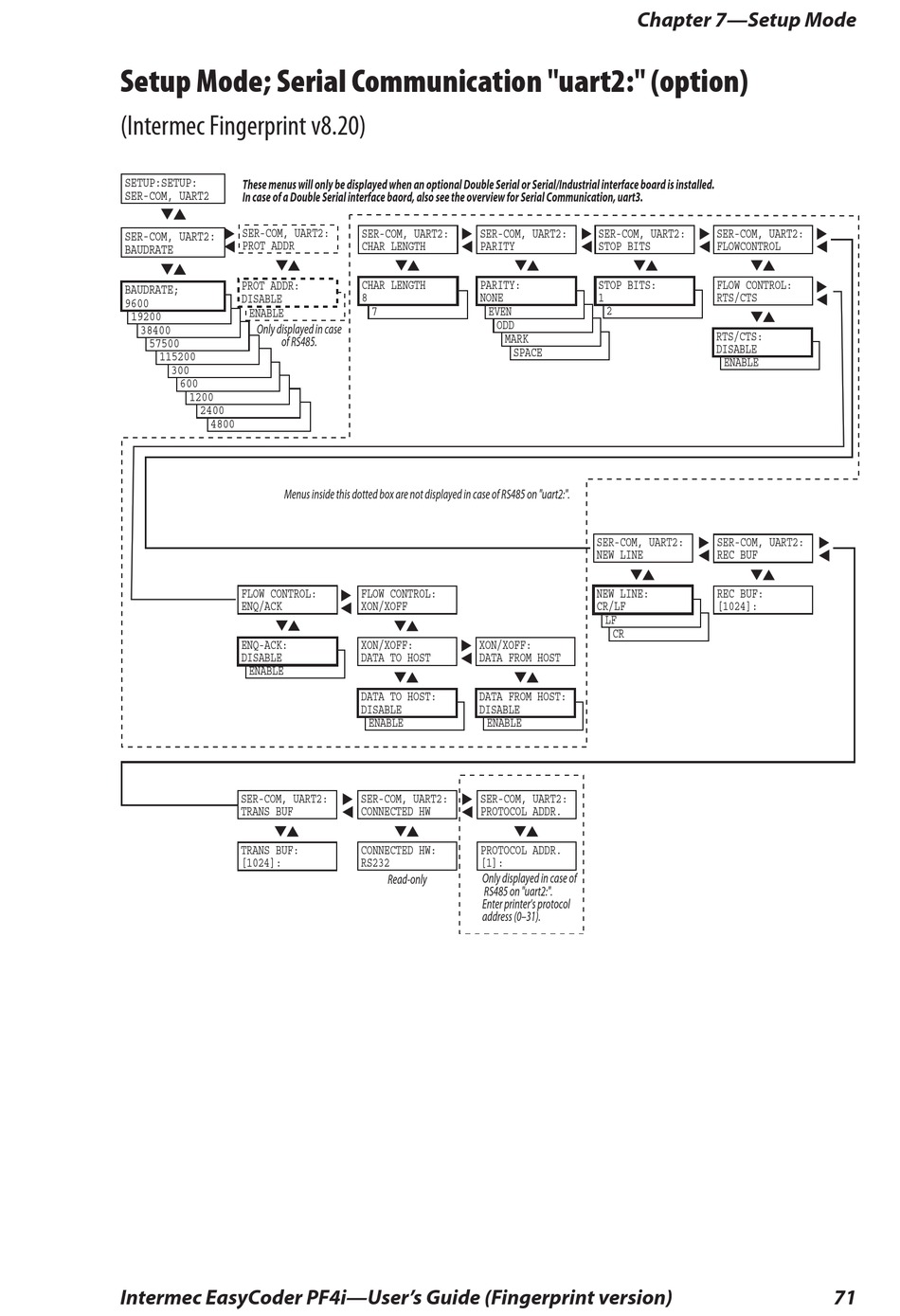

Setup Mode; Serial Communication "uart2:" (option)
(Intermec Fingerprint v8.20)
SETUP:SETUP:
These menus will only be displayed when an optional Double Serial or Serial/Industrial interface board is installed.
SER-COM, UART2
In case of a Double Serial interface baord, also see the overview for Serial Communication, uart3.
SER-COM, UART2:
SER-COM, UART2:
PROT ADDR
BAUDRATE
PROT ADDR:
BAUDRATE;
DISABLE
DATA TO HOST:
9600 BAUDRATE;
ENABLE
19200 BAUDRATE;
Only displayed in case
38400
BAUDRATE;
of RS485.
57500 BAUDRATE;
115200 BAUDRATE;
300 BAUDRATE;
600 BAUDRATE;
1200 BAUDRATE;
2400 BAUDRATE;
4800
Menus inside this dotted box are not displayed in case of RS485 on "uart2:".
FLOW CONTROL:
ENQ/ACK
ENQ-ACK:
DISABLE ENQ/ACK:
ENABLE
SER-COM, UART2:
TRANS BUF
TRANS BUF:
[1024]:
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
SER-COM, UART2: SER-COM, UART2:
CHAR LENGTH PARITY
CHAR LENGTH PARITY:
8 NONE
CHAR LENGTH PARITY:
7 EVEN
PARITY:
ODD
PARITY:
MARK
PARITY:
SPACE
FLOW CONTROL:
XON/XOFF
XON/XOFF: XON/XOFF:
DATA TO HOST DATA FROM HOST
DATA TO HOST: DATA FROM HOST:
DISABLE DISABLE
DATA TO HOST: DATA FROM HOST:
ENABLE ENABLE
SER-COM, UART2: SER-COM, UART2:
CONNECTED HW PROTOCOL ADDR.
CONNECTED HW: PROTOCOL ADDR.
RS232 [1]:
Only displayed in case of
Read-only
RS485 on "uart2:".
Enter printer's protocol
address (0–31).
