Appendix B — Media Specifications

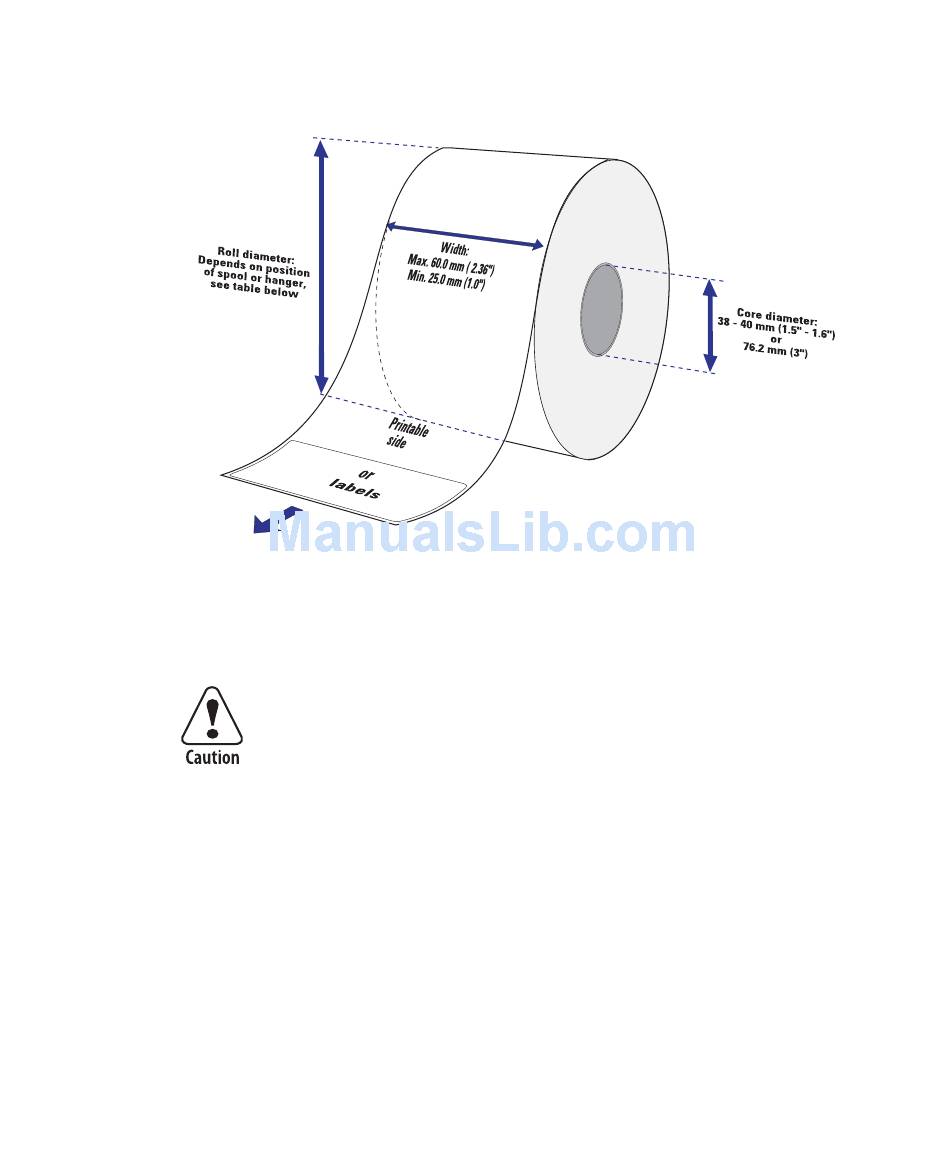

Media Roll Size

134 EasyCoder PF2i Bar Code Label Printer User's Guide (Fingerprint Version)
Core
Diameters: 38-40 mm (1.5 inches) or 76.2 mm (3 inches)
Width: Must not protrude outside the Media
The media must be wound up on the core in such a way that
the printer can pull the end free.
Roll
Max Diameter:
• Position 1: 152 mm (6.00 inches)
• Position 2: 203 mm (8.00 inches)
• Position 3: 213 mm (8.38 inches)
Max width: 60 mm (2.36 inches)
Min. width (standard): 25 mm (2.00 inches)
Min. width (quick-load): 40 mm (1.57 inches)
