Intermec EasyCoder PF4i User Manual page 86

Chapter 7—Setup Mode

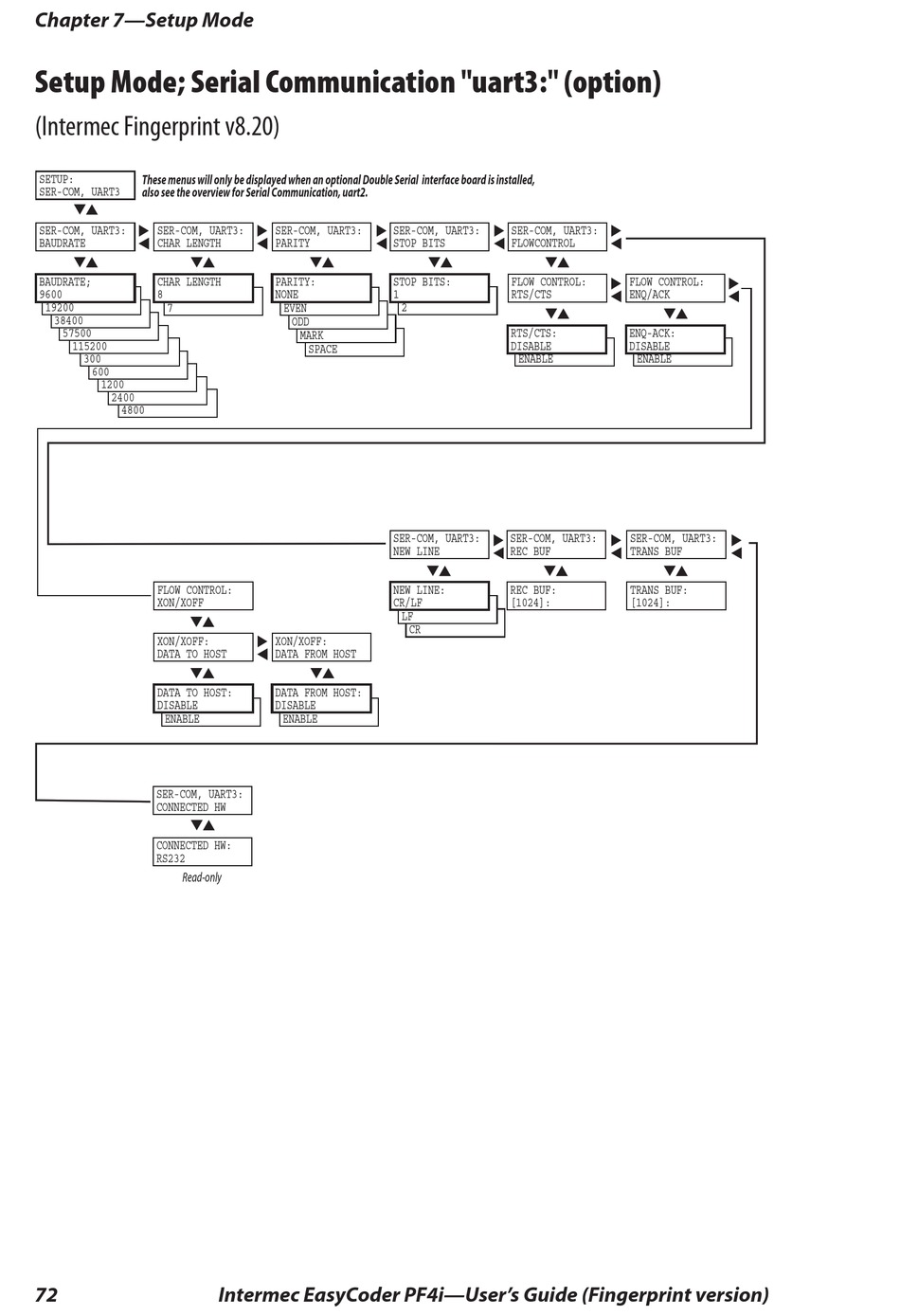

Setup Mode; Serial Communication "uart3:" (option)
(Intermec Fingerprint v8.20)
SETUP: These menus will only be displayed when an optional Double Serial interface board is installed,
also see the overview for Serial Communication, uart2.
SER-COM, UART3
SER-COM, UART3: SER-COM, UART3:
BAUDRATE CHAR LENGTH
BAUDRATE; CHAR LENGTH
9600 BAUDRATE; 8
CHAR LENGTH
19200 BAUDRATE; 7
38400
BAUDRATE;
57500 BAUDRATE;
115200 BAUDRATE;
300
BAUDRATE;
600 BAUDRATE;
1200 BAUDRATE;
2400
BAUDRATE;
4800
FLOW CONTROL:
XON/XOFF
XON/XOFF:
DATA TO HOST
DATA TO HOST:
DISABLE
DATA TO HOST:
ENABLE
SER-COM, UART3:
CONNECTED HW
CONNECTED HW:
RS232
Read-only
72
SER-COM, UART3:
PARITY
PARITY:
NONE
PARITY:
EVEN
PARITY:
ODD
PARITY:
MARK
PARITY:
SPACE
XON/XOFF:
DATA FROM HOST
DATA FROM HOST:
DISABLE
DATA FROM HOST:
ENABLE
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
SER-COM, UART3: SER-COM, UART3:
STOP BITS FLOWCONTROL
STOP BITS: FLOW CONTROL:
1 STOP BITS: RTS/CTS
2
RTS/CTS:
DISABLE ENQ/ACK:
ENABLE
SER-COM, UART3: SER-COM, UART3:
NEW LINE REC BUF
NEW LINE: REC BUF:
CR/LF [1024]:
NEW LINE:
LF
NEW LINE:
CR
FLOW CONTROL:
ENQ/ACK
ENQ-ACK:
DISABLE ENQ/ACK:
ENABLE
SER-COM, UART3:
TRANS BUF
TRANS BUF:
[1024]:
