Peel-Off , cont.

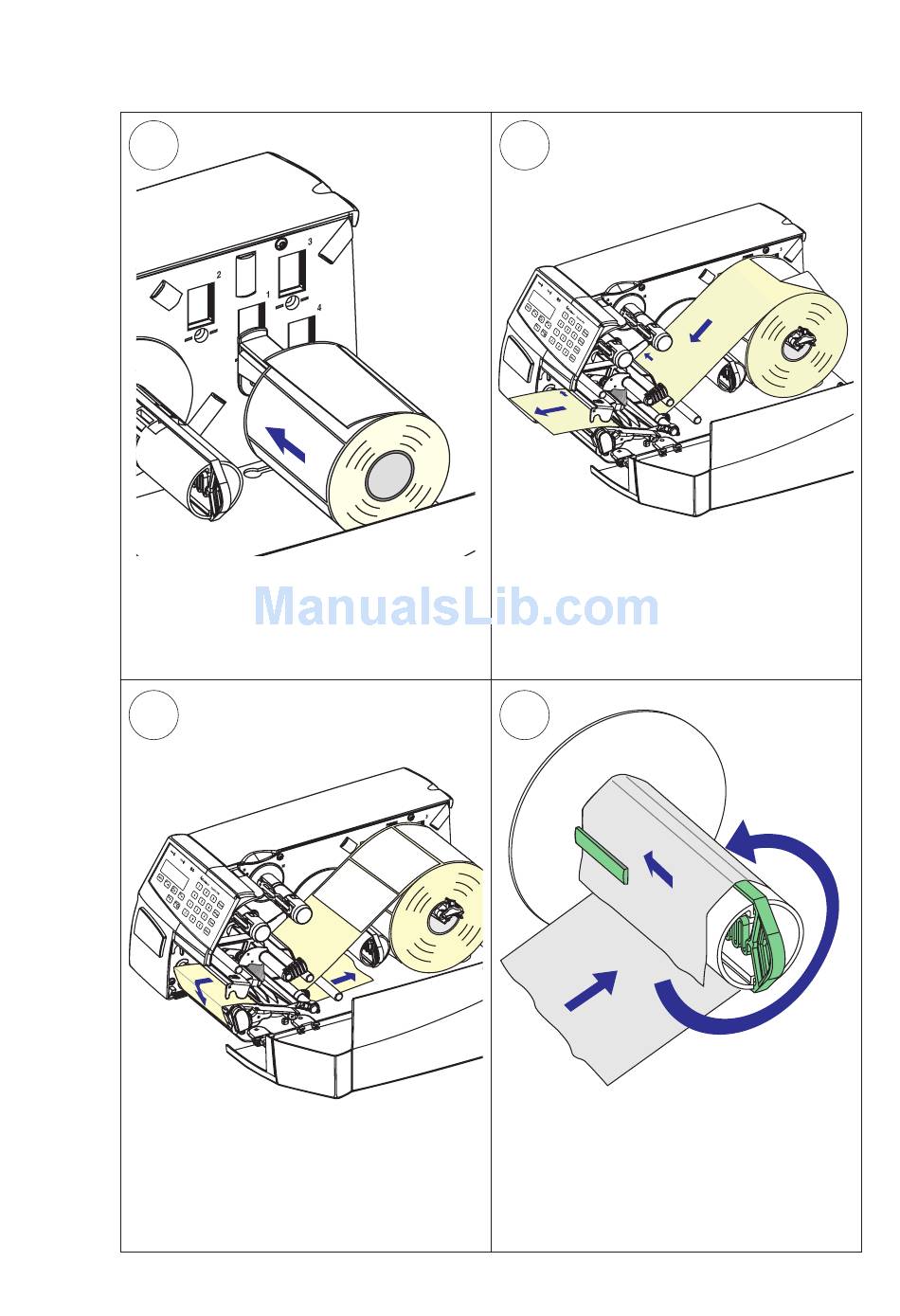

5
Fit a new roll of labels on the supply
post and adjust the edge guide so the
label roll becomes fl ush with the center
section.
7
Route the liner around the tear bar and
the liner drive roller and back under the
print mechanism and guide shaft.
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
Chapter 4—Media Load
6
Remove labels from the fi rst 50 cm
(20 inches) of the liner. Route the liner
through the print mechanism and push
it inwards.
8
Insert the start of the liner under the lip
of the takeup hub, then rotate the hub
counterclockwise a few turns to wind up
some of the liner.
35
