Chapter 4—Media Load
Tear-Off , cont.

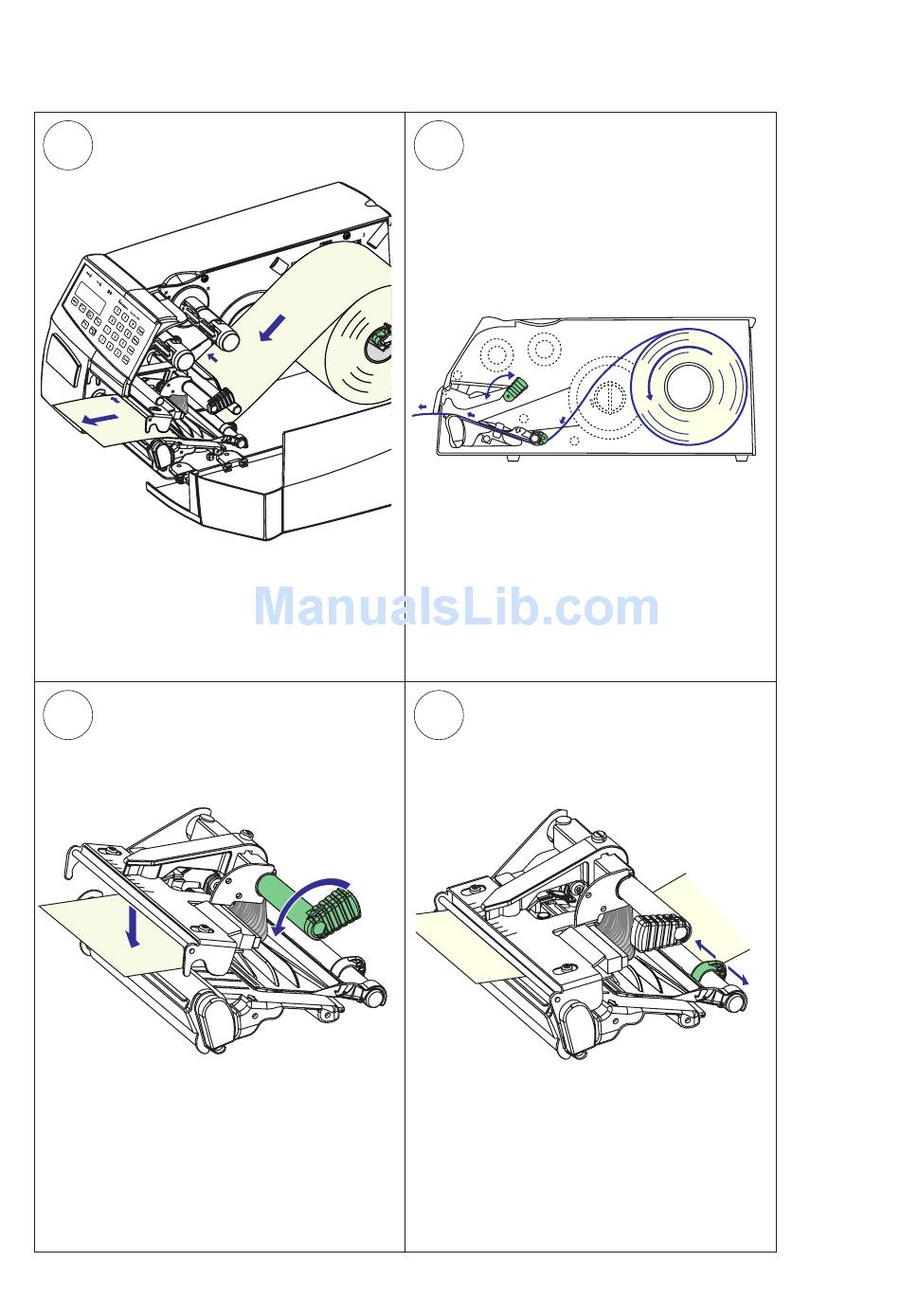

5
Route the media through the print
mechanism. Then push it inwards as far
as it will go.
7
Turn the printhead lift lever counter-
clockwise to engage the printhead.
24
Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
6
This diagram shows the media path.
8
Adjust the position of the green edge
guide so the media is guided with a
minimum of play.
