Chapter 2—Installation
The EasyCoder PF4i uses a media supply roll post that can be fi tted in
three different positions inside the media compartment. The position
depends on the type of side door (long or short) and whether the printer
is fi tted with an integral liner takeupor not. Alternatively, an external
media supply (for example a box of fan-folded tickets) behind the printer
can be used. A rotating media supply hub is also available as an option,
see Chapter 9, "Options."

Media Supply Roll Post

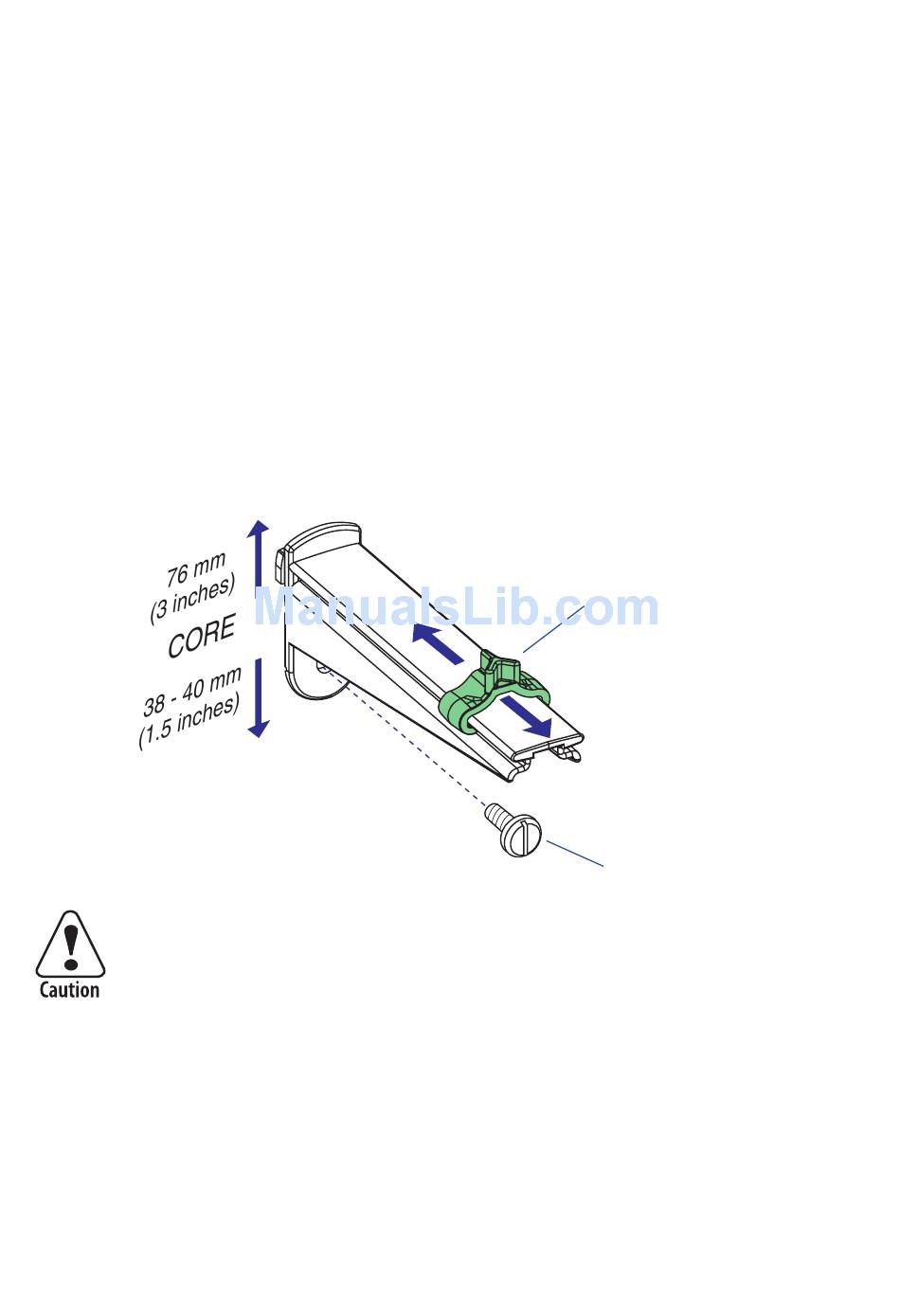

The media supply roll post fi ts both 38-40 mm (1.5 inches) and 76 mm
(3.0 inches) cores since it can be moved vertically in the slot in the center
section. The bottom position is intended for small cores and the top
position is for large cores. The post is locked by a straight-slot screw and
has a moveable edge guide to fi t various media widths.
Make sure to adjust the position of the post according to
the size of the media roll core. When the post is fi tted in
the top position, the head of the screw will interfere with
small (38 mm/1.5 inches) cores, causing media misalign-
ment.
To move the post to a different slot; remove the screw, twist the post a
quarter of a turn, and pull it out.
To fi t the post; rotate it a quarter of a turn, insert it into the appropri-
ate slot in the center section (see next page), and twist back so the lips
engage the cutouts in the sides of the slot. Move it up (large core) or
down (small core) as far as it goes and secure it with the screw.
10 Intermec EasyCoder PF4i—User's Guide (Fingerprint version)
Edge guide
Screw
