CONTROL COMMAND

I
Remote jack (CI-V) information

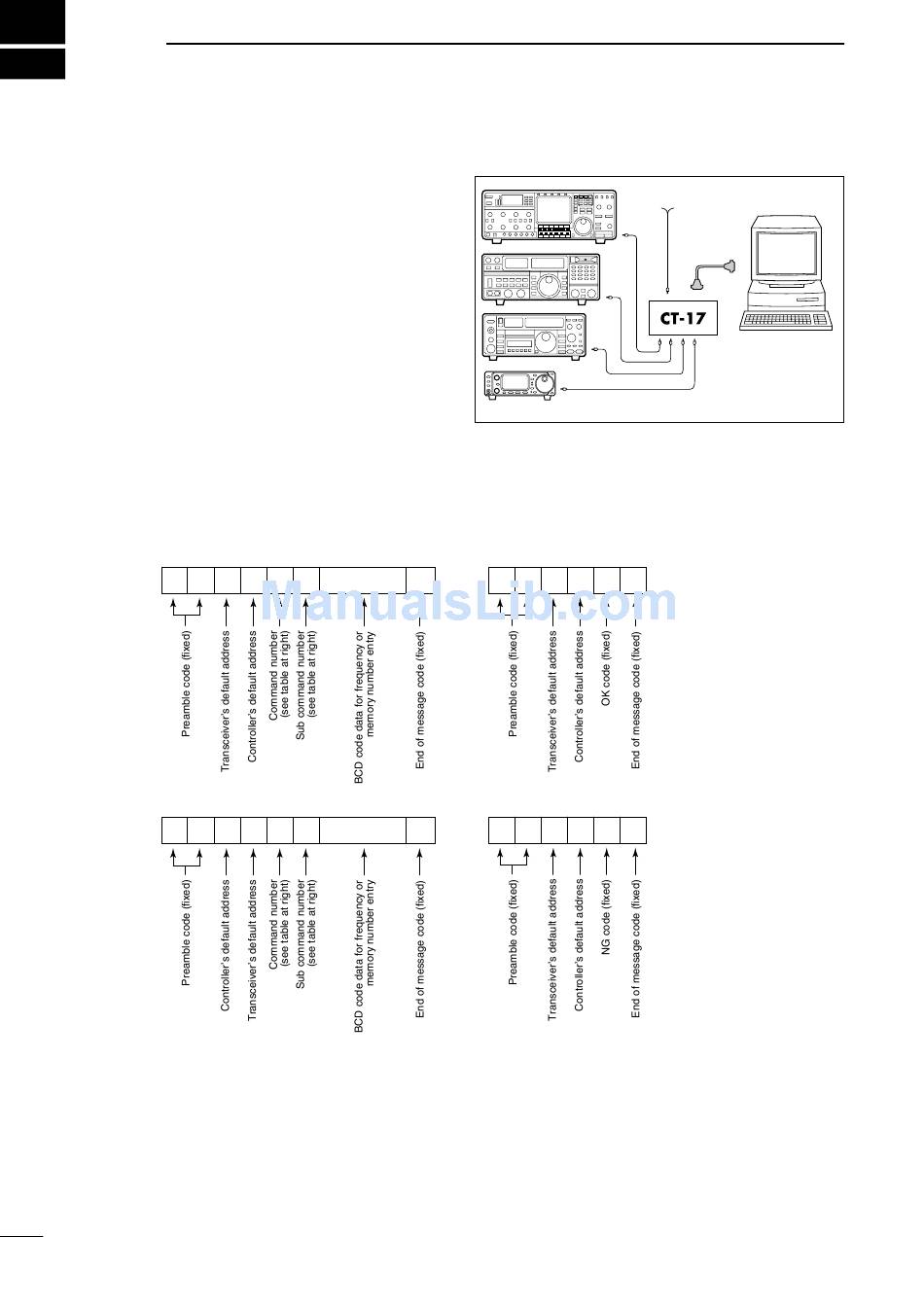

D CI-V connection example

The transceiver can be connected through an optional
CT-17 -
CI V LEVEL CONVERTER
equipped with an RS-232C port. The Icom Communi-
cation interface-V (CI-V) controls the following func-
tions of the transceiver.
Up to four Icom CI-V transceivers or receivers can be
connected to a personal computer equipped with an
RS-232C port. See p. 82 for setting the CI-V condition
using initial set mode.

D Data format

The CI-V system can be operated using the following
data formats. Data formats differ according to com-
mand numbers. A data area is added for some com-
mands.
CONTROLLER TO IC-703
FE FE 68 E0 Cn Sc
IC-703 TO CONTROLLER
FE FE E0 68 Cn Sc
71
to a personal computer
Data area FD
Data area FD
IC-703
OK MESSAGE TO CONTROLLER
FE FE 68 E0 FB FD
NG MESSAGE TO CONTROLLER
FE FE 68 E0 FA FD
9–15 V DC
Personal
computer
