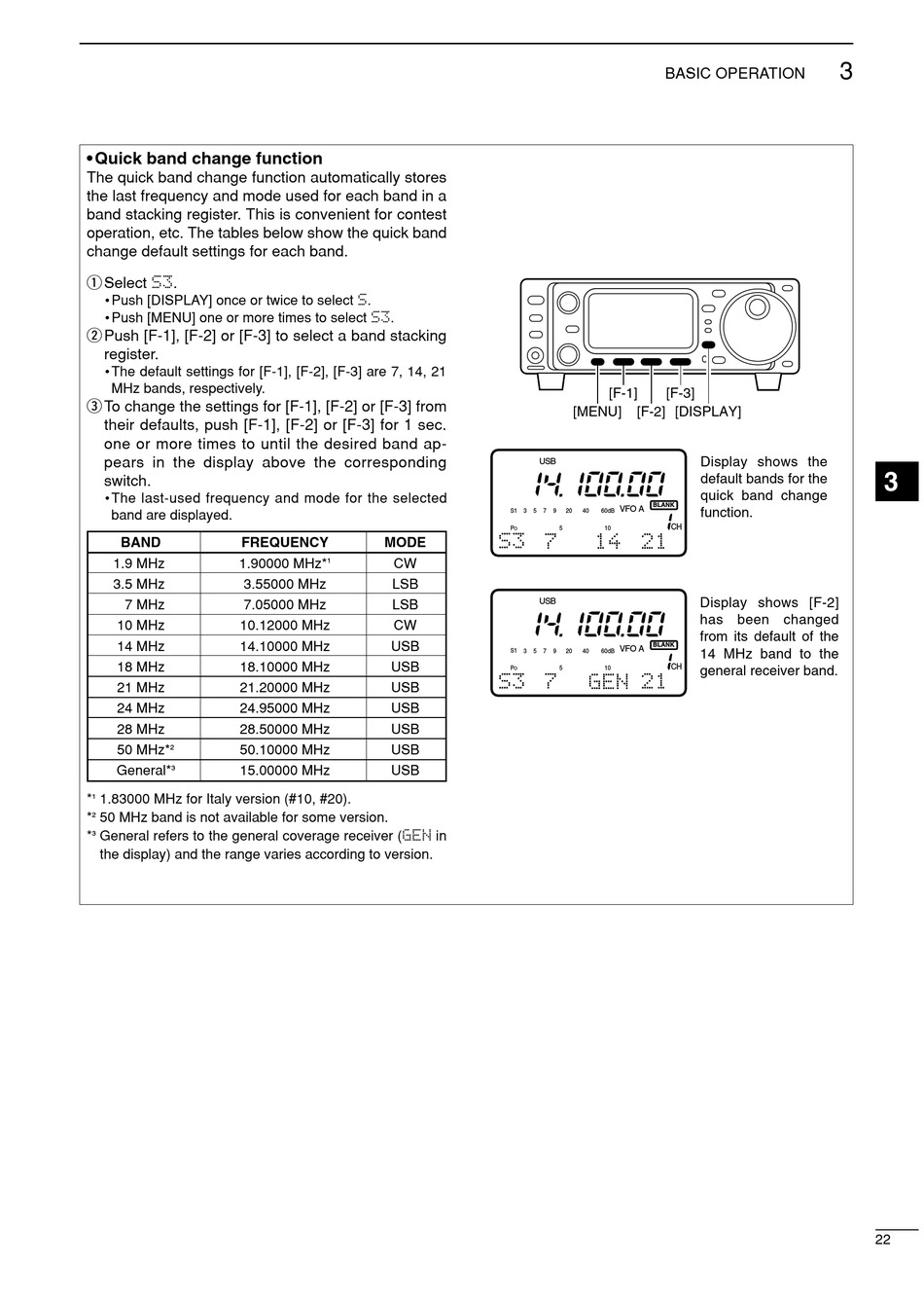

• Quick band change function
The quick band change function automatically stores
the last frequency and mode used for each band in a
band stacking register. This is convenient for contest
operation, etc. The tables below show the quick band
change default settings for each band.
q Select
.
• Push [DISPLAY] once or twice to select .
• Push [MENU] one or more times to select
w Push [F-1], [F-2] or [F-3] to select a band stacking
register.
• The default settings for [F-1], [F-2], [F-3] are 7, 14, 21
MHz bands, respectively.
e To change the settings for [F-1], [F-2] or [F-3] from
their defaults, push [F-1], [F-2] or [F-3] for 1 sec.
one or more times to until the desired band ap-
pears in the display above the corresponding
switch.
• The last-used frequency and mode for the selected
band are displayed.
BAND FREQUENCY
1.9 MHz 1.90000 MHz*
3.5 MHz 3.55000 MHz
7 MHz 7.05000 MHz
10 MHz 10.12000 MHz
14 MHz 14.10000 MHz
18 MHz 18.10000 MHz
21 MHz 21.20000 MHz
24 MHz 24.95000 MHz
28 MHz 28.50000 MHz
50 MHz* 2 50.10000 MHz
General* 3 15.00000 MHz
* 1.83000 MHz for Italy version (#10, #20).
1
* 2 50 MHz band is not available for some version.
* 3 General refers to the general coverage receiver (
the display) and the range varies according to version.
.
MODE
1 CW
LSB
LSB
CW
USB
USB
USB
USB
USB
USB
USB
in
BASIC OPERATION
[F-1] [F-3]
[MENU] [F-2] [DISPLAY]
USB
BLANK
VFO A
S1
3 5 7 9 20 40 60dB
CH
P 5
10
O
USB
BLANK
VFO A
S1 3 5 7 9 20 40 60dB
CH
P 5 10
O
3
Display shows the
default bands for the
quick band change
function.
Display shows [F-2]
has been changed
from its default of the
14 MHz band to the
general receiver band.
