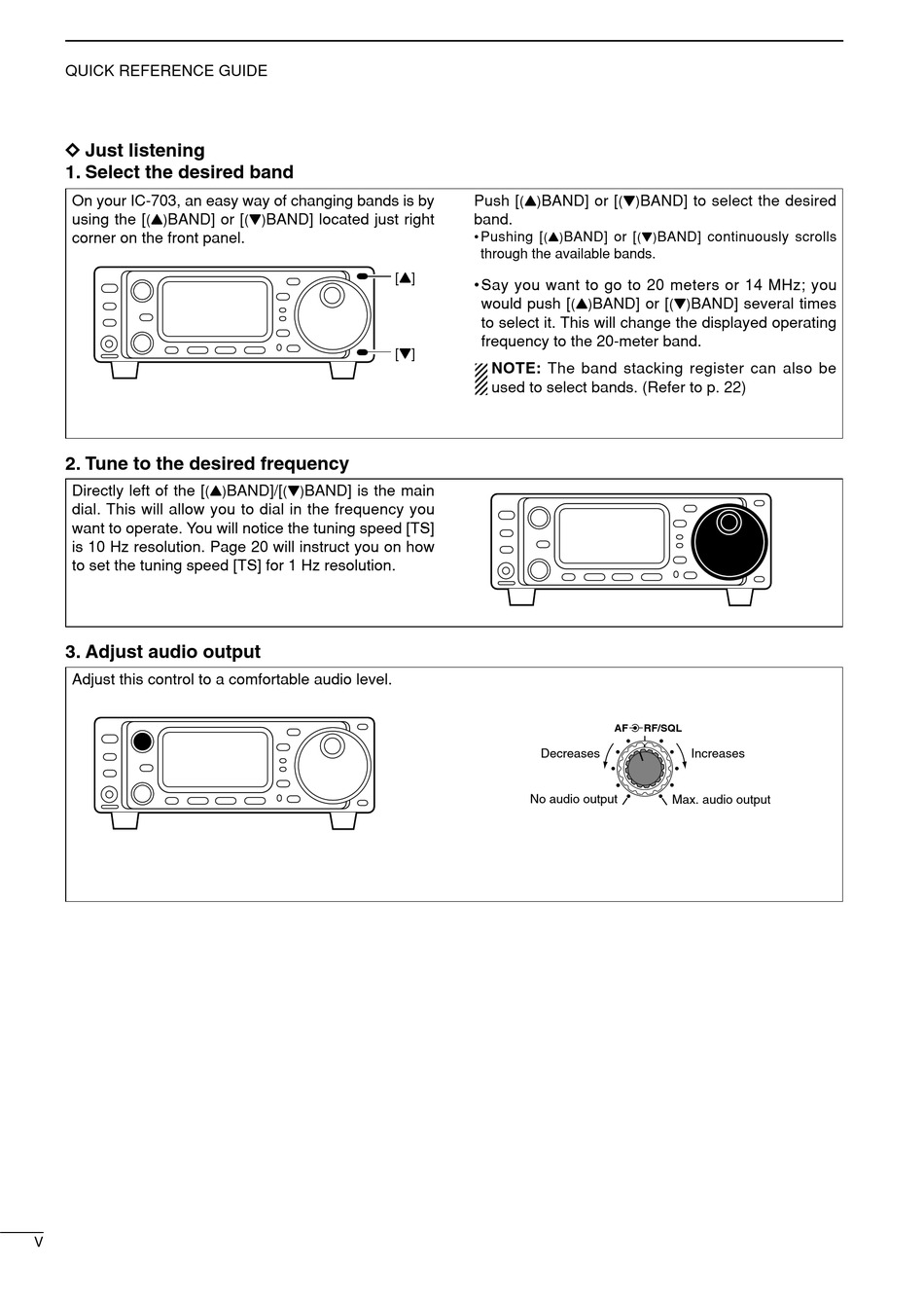

QUICK REFERENCE GUIDE
D D Just listening

1. Select the desired band

On your IC-703, an easy way of changing bands is by
using the [ BAND] or [
(Y)
corner on the front panel.

2. Tune to the desired frequency

Directly left of the [
(Y)
dial. This will allow you to dial in the frequency you
want to operate. You will notice the tuning speed [TS]
is 10 Hz resolution. Page 20 will instruct you on how
to set the tuning speed [TS] for 1 Hz resolution.

3. Adjust audio output

Adjust this control to a comfortable audio level.
V
BAND] located just right
(Z)
[Y]
[Z]
BAND]/[ BAND] is the main
(Z)
Push [ BAND] or [ BAND] to select the desired
(Y) (Z)
band.
• Pushing [ BAND] or [
(Y) (Z)
through the available bands.
• Say you want to go to 20 meters or 14 MHz; you
would push [ BAND] or [
(Y)
to select it. This will change the displayed operating
frequency to the 20-meter band.
NOTE: The band stacking register can also be
used to select bands. (Refer to p. 22)
AF RF/SQL
Decreases
No audio output
BAND] continuously scrolls
BAND] several times
(Z)
Increases
Max. audio output
