I Frequency Setting - Icom IC-703 Instruction Manual

3
BASIC OPERATION

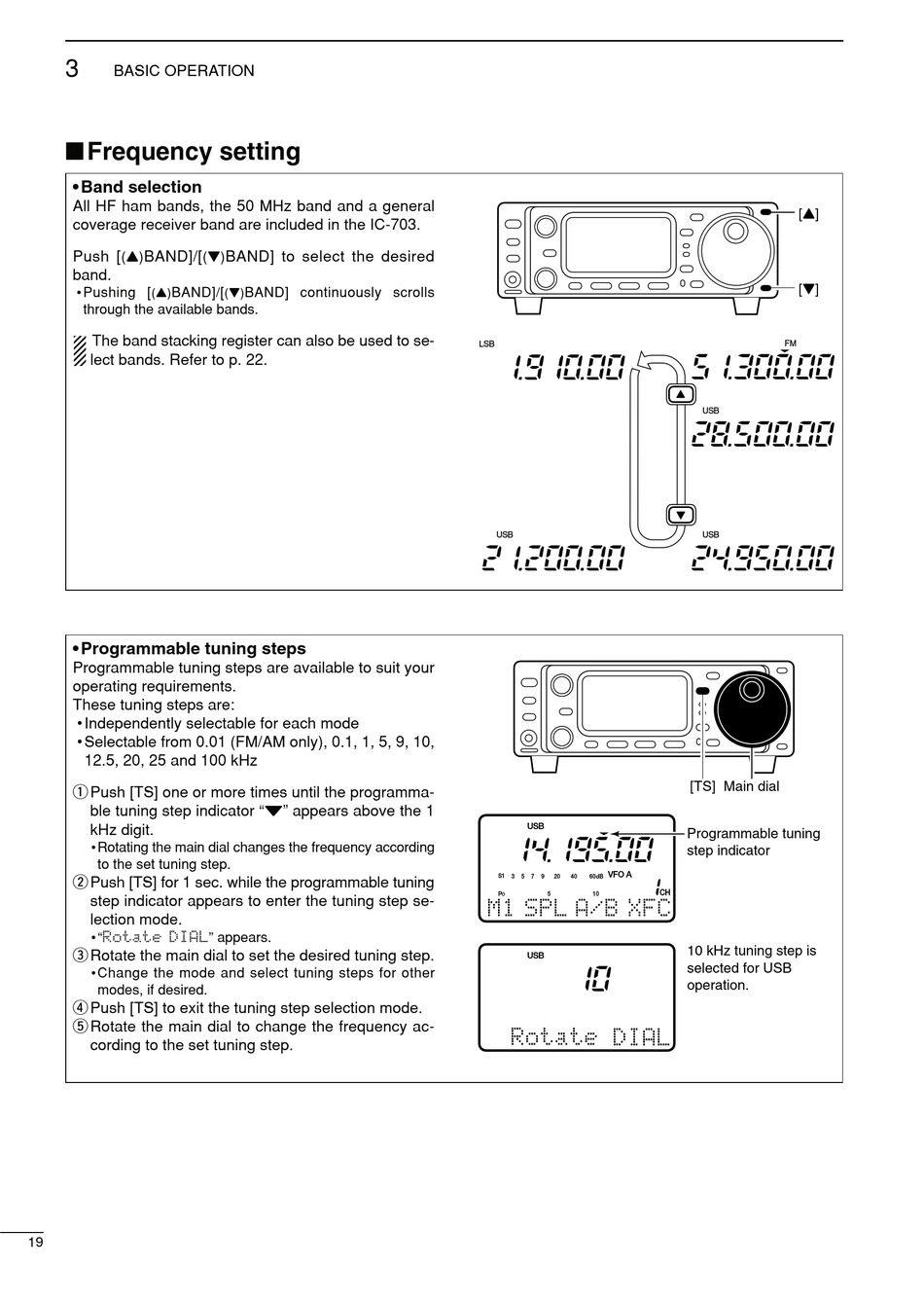

I Frequency setting

• Band selection
All HF ham bands, the 50 MHz band and a general
coverage receiver band are included in the IC-703.
Push [ BAND]/[
(Y)
band.
• Pushing [ BAND]/[
(Y)
through the available bands.
The band stacking register can also be used to se-
lect bands. Refer to p. 22.
• Programmable tuning steps
Programmable tuning steps are available to suit your
operating requirements.
These tuning steps are:
• Independently selectable for each mode
• Selectable from 0.01 (FM/AM only), 0.1, 1, 5, 9, 10,
12.5, 20, 25 and 100 kHz
q Push [TS] one or more times until the programma-
ble tuning step indicator "
kHz digit.
• Rotating the main dial changes the frequency according
to the set tuning step.
w Push [TS] for 1 sec. while the programmable tuning
step indicator appears to enter the tuning step se-
lection mode.
• "
e Rotate the main dial to set the desired tuning step.
• Change the mode and select tuning steps for other
modes, if desired.
r Push [TS] to exit the tuning step selection mode.
t Rotate the main dial to change the frequency ac-
cording to the set tuning step.
19
BAND] to select the desired
(Z)
BAND] continuously scrolls
(Z)
Z
" appears above the 1
" appears.
LSB
USB
USB
VFO A
S1
3 5 7 9 20 40 60dB
P 5
O 10
USB
[Y]
[Z]
FM
Z
USB
Z
USB
[TS] Main dial
Programmable tuning
step indicator
CH
10 kHz tuning step is
selected for USB
operation.
