Jasic EVOLVE 200 Operator's Manual page 60

OPERATION MIG
Before starting any welding activity ensure that you have suitable eye protection and
protective clothing. Also take the necessary steps to protect any persons within the welding
area.

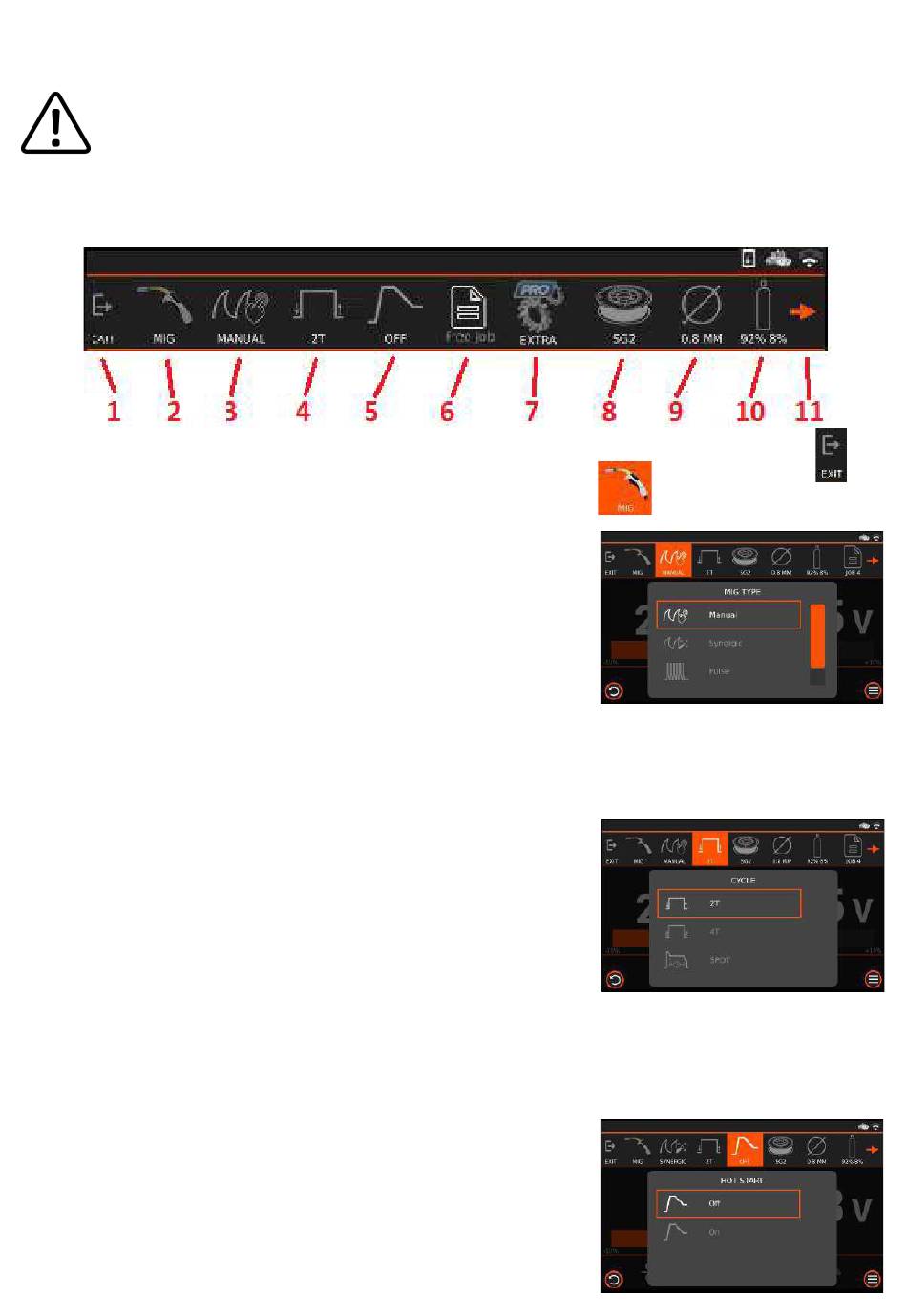

Display Area Top Bar - MIG Mode
This multi icon bar shows the operator a quick view of MIG options and settings. The icons shown will
change depending on MIG background settings. Pressing the icons will allow entry to chosen setting.
1. Pressing the EXIT button on the top bar menu will take you back to the MIG welding screen.
2. MIG Mode: The selected welding process icon and screen button.
3. MIG Manual, Synergic, Pulse or Double Pulse selection button.
Pushing the button will allow you to change from manual MIG to
Synergic MIG and Pulse MIG welding modes and upon selecting your
chosen mode, the corresponding indicator will be shown in the top
menu bar.
•
Manual: Selects standard MIG welding mode.
•
Synergic TIG software will calculate the optimal settings based on
the operators selected wire, gas and material thickness.
•
Pulse MIG: MIG welding with pulse that alternates between the peak and the base current.
•
Double Pulse: MIG welding with double pulse that alternates between the peak and the base current.
4. MIG Torch Trigger mode selection icon and button.
Pushing this icon button allows access to change the MIG torch
trigger mode from 2T, 4T and spot welding mode, when chosen the
corresponding indicator will be shown in the top menu bar.
•
2T (2 touch): You need to press and hold the button down on your
MIG torch to weld, releasing will stop welding.
•
4T (4 touch/latch): You only need to press the button to initiate
welding, release to continue welding and to stop welding, press
and release again and welding will stop.
•
Spot: Spot welding mode give consecutive, evenly timed welds that offers perfectly even tacks and
small welds.
See page 86 for further details on trigger mode instructions.
5. Hot Start: (Synergic and Pulse Mode Only)
Pushing the button allows access to selecting hot start mode, which
offers an initial burst of current, improving initial the arc ignition.
•
Hot Start Off
•
Hot Start On
Please Note:
Depending on machine software version installed, the icon order and
selection may differ.
60
