TIG Series
|
TIG 180 (JT-180)
|
TIG 200 (JT-200)
Operator Manual
|
TIG 180 Dual Voltage (JT-180DV)
|
TIG 200 Dual Voltage (JT-200DV)
www.jasic.co.uk
|
|

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIG 200 Dual Voltage and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Jasic TIG 200 Dual Voltage

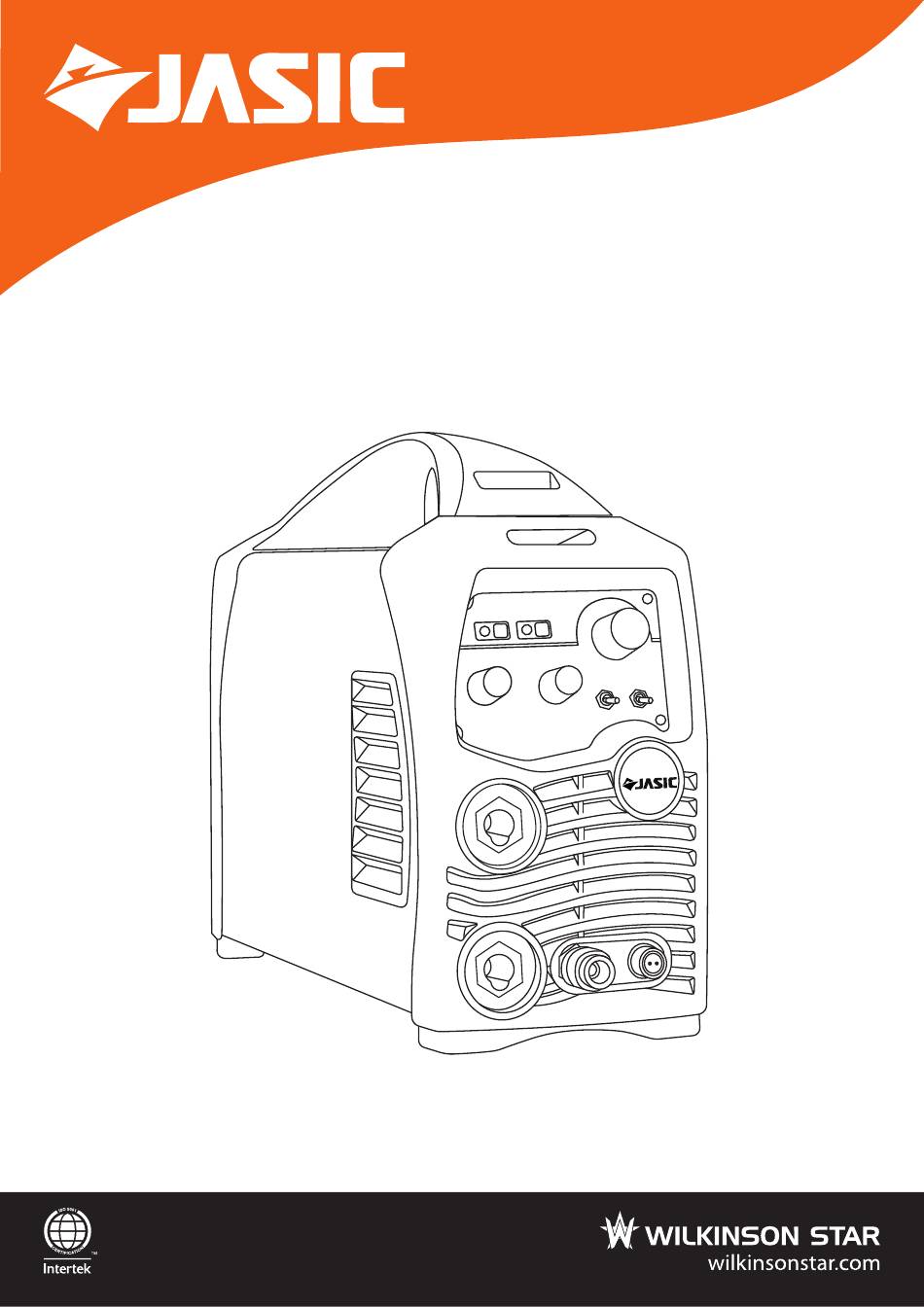

  • Page 1 TIG Series TIG 180 (JT-180) TIG 180 Dual Voltage (JT-180DV) TIG 200 (JT-200) TIG 200 Dual Voltage (JT-200DV) Operator Manual...
  • Page 2 Your new product Thank you for selecting this Jasic Technology, Wilkinson Star product. This product manual has been designed to ensure that you get the most from your new product. Please ensure that you are fully conversant with the information provided paying particular attention to the safety precautions. The information will help protect yourself and others against the potential hazards that you may come across.
  • Page 3: Safety Precautions

    Safety Precautions These general safety norms cover both arc welding Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent any physical contact machines and plasma cutting machines unless with the work ground. otherwise noted. Never touch the electrode if you are in contact with the work The equipment must only be used for the purpose it was ground, or another electrode from a different machine.
  • Page 4 Do not weld on coated metals, unless the coating is Replace the coverings and protections and close all doors removed from the weld area, the area is well ventilated, and when the intervention is finished, and before starting the while wearing an air-supplied respirator. The coatings on equipment.
  • Page 5 Keep your head and face away from the cylinder valve outlet RF Declaration when opening the cylinder valve. Equipment that complies with directive 2004/108/EC Always secure the cylinder safely concerning electromagnetic compatibility (EMC) and the technical requirements of EN60974-10 is designed for use in Never deface or alter any cylinder industrial buildings and not those for domestic use where electricity is provided via the low voltage public distribution...
  • Page 6: Product Overview

    Product Overview The unique electronic structure and air channel design in this series of machines provides efficient cooling of the power devices as well as improving the duty cycles of the machines. The design of the forced air-cooling system channel can effectively prevent the power devices and control circuits from being damaged by the dust introduced into the machine by the fan.
  • Page 7: Technical Data

    Technical data Model Model Model Model Model Model Technical Parameter Technical Parameter Technical Parameter Technical Parameter Unit Unit TIG180 (JT-180) TIG 200 (JT-200) TIG180DV (JT-180DV) TIG180DV (JT-180DV) TIG 200DV (JT-200DV) TIG 200DV (JT-200DV) AC230V±15% AC230V±15% AC115V±15% AC230V±15% AC115V±15% AC230V±15% Rated input voltage Rated input voltage 50/60HZ 50/60HZ...
  • Page 8 Controls Front view Overheating LED to indicate overheating. Power LED to indicate the power is on. Downslope time control: 1~10s. Post-flow time control: 1~10s. "+" output terminal: To connect the work clamp. "-" output terminal: To connect the TIG torch. Torch switch plug connection.
  • Page 9: Installation

    Installation Unpacking MMA welding Check the packaging for any signs of damage. Insert the cable plug with electrode holder into the “+” Carefully remove the machine and retain the packaging until socket on the front the installation is complete. p a n e l o f t h e welding machine, Location a n d t i g h t e n i t...
  • Page 10 Operation stops with gas kept flowing for the post-flow time, and Before starting any welding activity ensure that you have welding ends. suitable eye protection and protective clothing. Also take the necessary steps to protect any persons within the area. Adjust the downslope time potentiometer to change the time according to the welding process requirements.
  • Page 11 Electrode type Type Mode Colour Thoriated 2% DC welding of steel, stainless steel and copper Ceriated DC welding of steel, stainless steel and copper Grey Lanthanated DC welding of steel, stainless steel and copper Black The corresponding relationship between gas nozzle diameter and electrode diameter Gas nozzle diameter/mm Electrode diameter/mm 1.6 or 2.4...
  • Page 12: Maintenance And Troubleshooting

    Maintenance and troubleshooting The following operation requires sufficient professional Troubleshooting knowledge on electric aspects and comprehensive Before arc welding machines are dispatched from the safety knowledge. Make sure the input cable of the factory, they have already been checked thoroughly. The machine is disconnected from the electricity supply and machine should not be tampered with or altered.
  • Page 13 Symptom Cause Solution The arc ignition current is too low or the arc Increase the arc ignition current or prolong the arc starting Difficult to ignite the arc ignition time is too short. time. Phase failure of the mains power supply or Solve the phase failure problem or reconnect the mains supply No arc can be started the mains supply cable is not connected.
  • Page 14: Electrical Schematic

    Electrical schematic...
  • Page 15: Parts List

    Parts list...
  • Page 16 Part no Description Part no Description 10004949 Power switch 10041436 Thermal Switch 10041432 Power line 10037134 Switching mode power supply transformer 10042342 Connector for input gas 10006477 12V Electric Relay 10044817 TIG180/TIG180 Dual Voltage Fan 10037146 TOP266KG 10044009 TIG200 Fan 10006673 KA7915 10043460...
  • Page 17 JT DC TIG Series DC TIG/MMA WELDING MACHINE Order code ! TIG180(JT-180 / TIG200 (JT-200) TIG180(JT-180DV / TIG200 (JT-200DV) © Wilkinson Star Limited Issue 1 January 2014 Product is subject to change without notice...
