DESCRIPTION OF CONTROL PANEL - JASIC EVOLVE 200

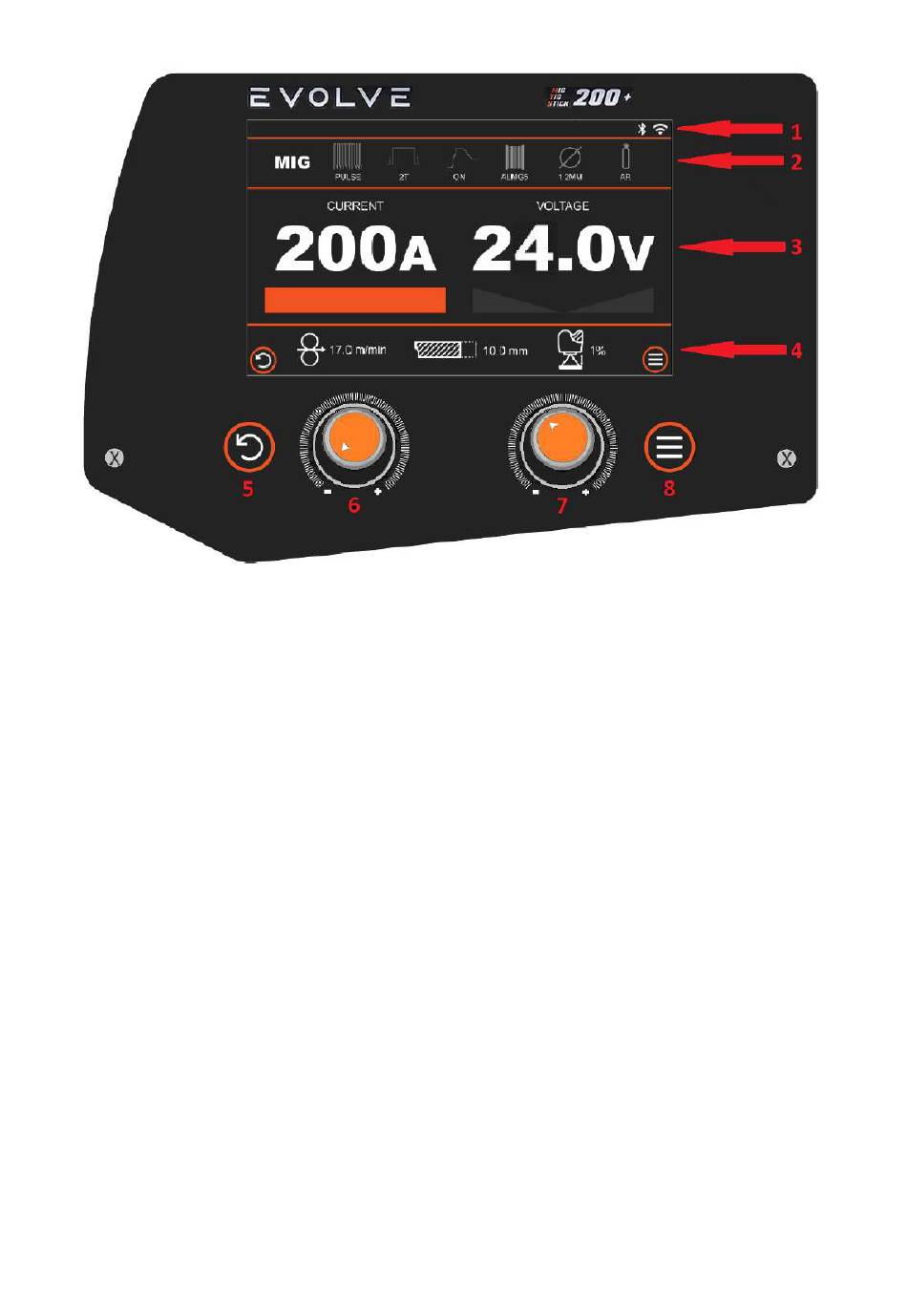

Front control panel Jasic Evolve 200
The digital users control screen is a 5" touch screen which can easily be used to navigate the various
welding process menus and parameters to select and adjust said values.
1. In the top right display, icons located here will inform the operator the functional state of Wi-Fi, JTE
Cloud, Bluetooth connections and if any new firmware is available.
2. This top bar section line displays the welding process the machine is currently in and the various
adjustable welding parameters. These commands can be controlled either by the touch screen or by
the control knobs.
3. This area of the screen will display your chosen welding settings and during welding will display the
real time actual output current and voltage. At the end of the welding process, this area will display
and hold the late welding values of the output current and voltage until one of the control panel dials
of the screen is touched or adjusted..
4. In the bottom display area will be shown the welding process data and this data will be different
depending on which welding process is chosen.
5. Back or return button, Pressing this button will return you to the previous page. This button can also
be pressed to exit a pop up menu. See page 19 for further details.
6. The left control dial will adjust various parameters such as amps, wire feed speed and scrolling. See
page 19 for further details.
7. The right control dial will adjust various parameters depending on welding mode selected. See page
19 for further details.
8. Menu button, Pressing this button will take you to the machine settings menu. See page 19 for further
details.
14
