MACHINE POWER UP - MACHINE CONTROL SETTING
Boot Up Sequence

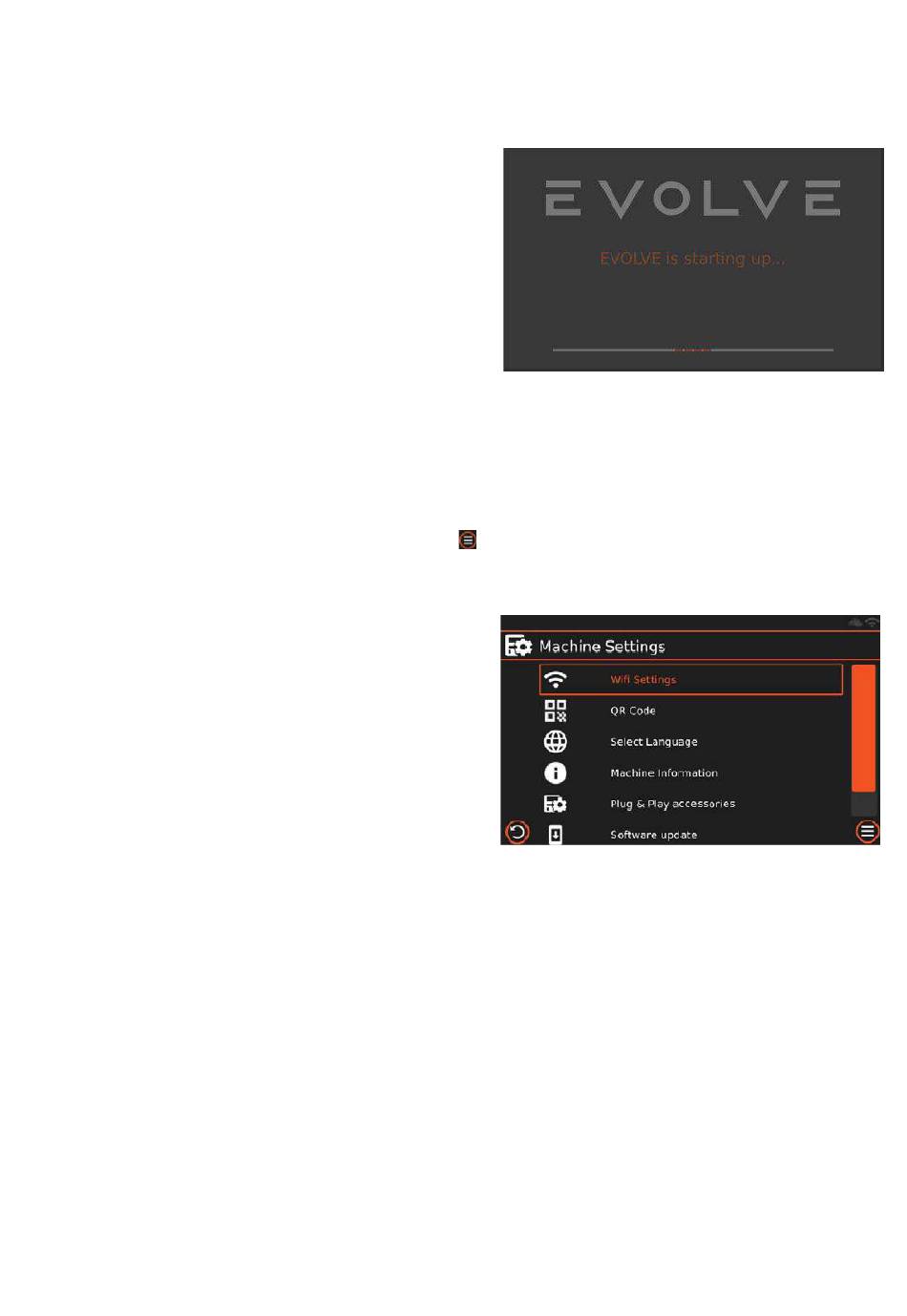

Upon switching the machine ON, the control panel has a boot up time of about 20 seconds, following the
boot time the display shown will be the previous welding
mode setup the last time the machine was used.
During boot up, the cooling fan is activated for a short
period of time in order to load up the power supply of
the inverter and allow the initial self-test.
The initial self-test allows the diagnostic system to check
the inverter, the wire feeder motor driver, the auxiliary
power supply for the machine and check on the mains
cabling of the machine.
If any errors are noted during the self-test, the corresponding error code will be shown in the display with
a short description of the error. The error chart on page 108 lists all error codes.
During the initial self-test, if any 'fatal' errors are encountered then an alarm will also be heard which will
not allow the machine to continue and again the screen will display the noted error code and description.
Machine Settings
Once the machine has fully powered up, pressing the
or the on screen icon, you will enter the main menu screen as shown below.
Please Note: Depending on the machine software version number, the order or terminology may differ.
The following options are available in the menu.
1. Wi-Fi Settings, where you can select or change your
Wi-Fi network choices. On pressing this option the
machine will instantly look for available networks,
then you can select your chosen Wi-Fi network and
then follow the prompts to connect to your network.
If required, you will need to enter the Wi-Fi network
password. The display screen will then show a touch
screen keyboard which will allow you to input the
password as required.
See the following pages for further information.
2. The QR Code enables fast identification of your machine, pressing this option will display the unique
machine QR code. The QR code also enables quick linkup with the mobile app.
3. Select Language, allows the operator to choose from a selection of languages other than English from
this menu. Selecting this option will display the available languages.
4. Machine Information, from here you can view your machine identification information, including:
Serial Number, Machine Model, Firmware Version and Variant. See the following pages for further
information.
5. Plug and Play accessories, this option allows the operator to enable and disable additional torch
modules, Selecting this option will display the available connected devices.
6. Software update, this option will check and update any available Firmware and variant Firmware.
•
Selecting this option will check for the latest updates (the machine needs to be connected to
a Wi-Fi network to receive updates.
•
If a new update is available, select Update to initiate a firmware update.
•
If you are experiencing issues after updating firmware, select Recovery Firmware to restore
the firmware to an earlier version.
For further information on how to connect the machine to your Wi-Fi, see page 18.
