OPERATION TIG
Before starting any welding activity ensure that you have suitable eye protection and
protective clothing. Also take the necessary steps to protect any persons within the welding
area.
Display Area Top Bar - TIG (continued)

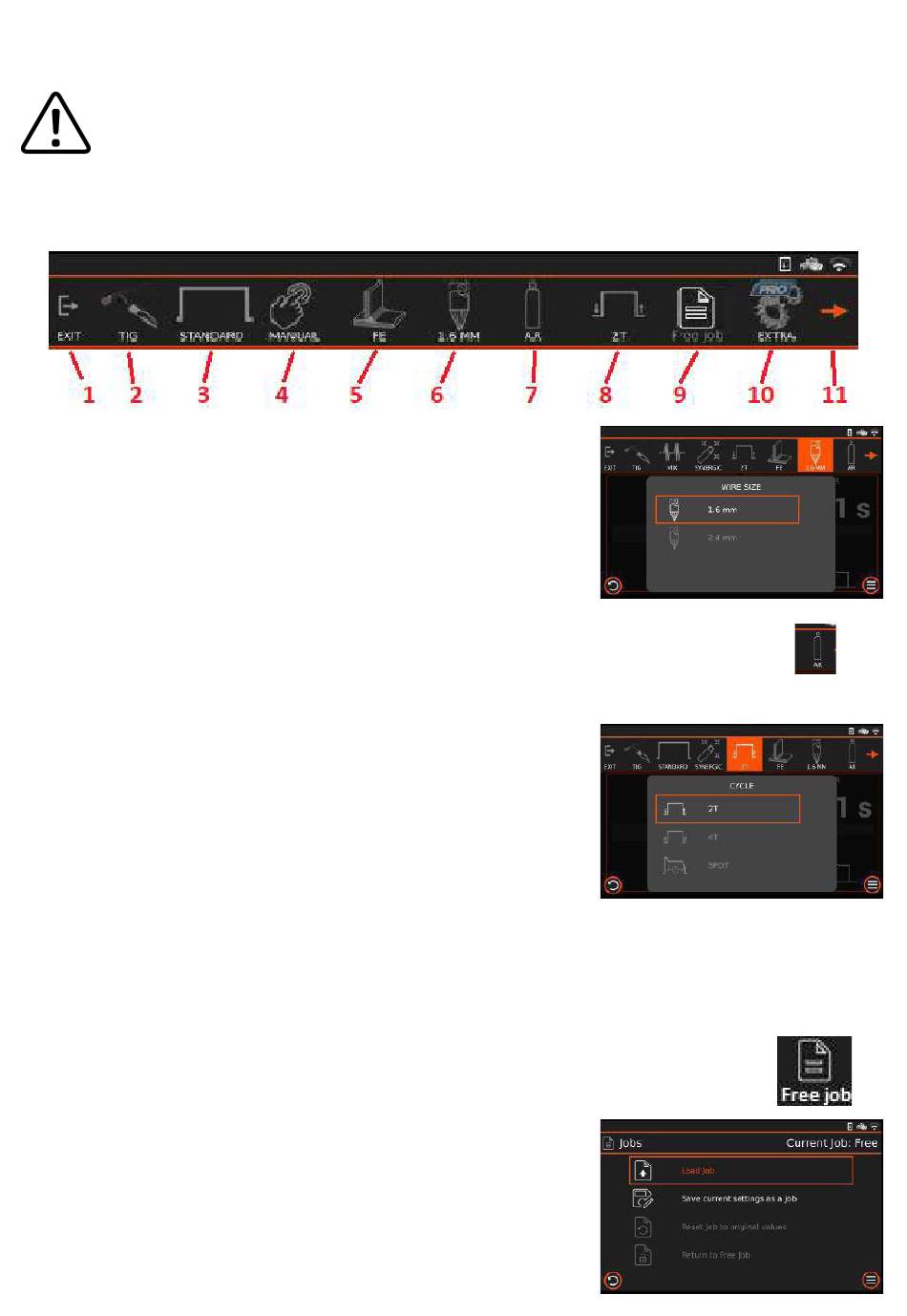

This multi icon bar shows the operator a quick view of TIG options and settings. The icons shown will
change depending on TIG background settings. Pressing the icons will allow entry to chosen setting.
6. TIG Tungsten size selection button. (Synergic Mode Only)
Pushing the icon button allows the operator to change the TIG
tungsten size being used, upon selecting your chosen size, the
corresponding indicator icon will be shown in the top menu bar.
•
1.6mm
•
2.4mm
7. TIG welding gas: (Synergic Mode Only)
Pressing the gas selection icon button allows the operator to change the TIG welding gas, the
chosen gas corresponding icon will be shown in the top menu bar, as shown right.
8. TIG torch trigger mode:
Pushing this icon button allows access to change the TIG torch trigger
mode from 2T, 4T and spot welding mode, when chosen the
corresponding indicator will be shown in the top menu bar.
•
2T (2 touch) You need to press and hold the button down on your
TIG torch to weld, releasing will stop welding.
•
4T (4 touch/latch) You only need to press the button to initiate
welding, release to continue welding and to stop welding, press
and release again and welding will stop.
•
Spot: Spot welding mode give consecutive, evenly timed welds that offers perfectly even tacks and
small welds.
See pages 44 - 46 for further details on trigger mode functionality.
9. Memory function:
The Evolve 200 is capable of storing 100 TIG Jobs in it's memory and the jobs menu can be
accessed from pressing the job menu icon as shown left. If a Job is selected, the reference
number of the Job is showing in the icon display. If Free Job shows, this indicate that no job
is selected.
•
Load job
•
Save Current Settings as a Job
•
Reset Job to original values
•
Return to Free Job
See page 20 for further details on saving and recalling jobs.
