DESCRIPTION OF 'LCD' CONTROL PANEL

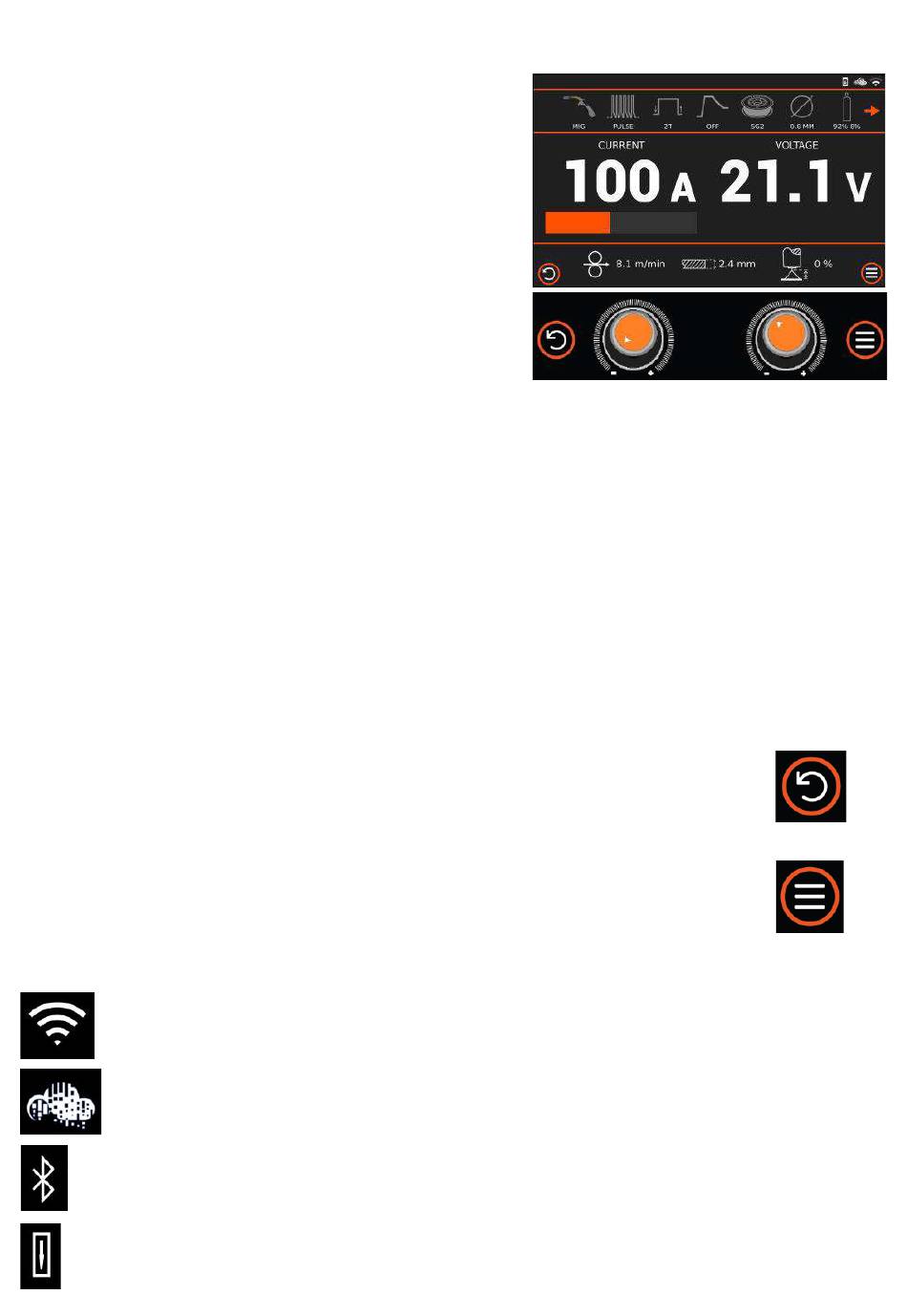

Display screen
The display screen offers the operator a wealth of information
including operation modes, a vast array of MIG, TIG DC and
MMA parameters. The example screen is shown right and
using the adjustment dials or touching the screen allows you
to navigate through the machines options and the following
pages will explain in greater details these features.
Parameter adjustment knobs
Rotating the control dials A or B clockwise or anti-clockwise
allows the operator to scroll though the functions of the
machine, increases or decreases parameter values including
welding current and when these parameters are adjusted the values are shown in the display screen.
Pressing the dials will also allow access to further information or settings.
A. The left control dial will adjust various parameters such as amps, wire feed speed and scrolling.
•
Rotating this control dial for digital screen navigation and cycling through menu options.
•
Press this control dial to confirm selected actions for weld screen options & menu parameters.
•
In MMA/TIG welding mode this control dial can be used to adjust current.
•
In MIG Manual welding mode this control dial will adjust wire speed.
•
In MIG Synergic and Pulse welding mode this control dial will adjust material thickness.
B. The right control dial will adjust various parameters depending on welding mode selected.
•
In TIG mode this knob can be used to adjust weld cycle parameters.
•
In MIG Manual mode this knob is used to adjust voltage.
•
In MIG Synergic / Pulse mode this can be used to adjust arc length.
•
In MMA mode this knob can be used to adjust Arc Force.
Return Button
The return button will take you back to the previous screen and the 'upper' level of the
function you were within. This button when pressed will exit you from a pop up menu.
Menu Button
Pressing the menu button at any time will take you directly to the machine settings which
will show on screen a number of options including: Wi-Fi settings, Language options,
Connecting accessories and software updates.
Screen Icon - Top Right Corner
The Wi-Fi icon, if the machine is not connected to your Wi-Fi this icon will be greyed out,
when connected to your local Wi-Fi network the icon will be white.
When wi-fi is connected the machine will automatically connect the JTE Cloud, when not
connected the icon is greyed out, when connected to your wi-fi the icon will be white.
If you have installed the JTE app on your mobile phone and connect the app to the machine, it
will connect via Bluetooth. When the app is not connected the Bluetooth icon is greyed out, if
the machine is connected to your phone the icon will be white.
This icon will appear if there is a firmware download is available or that the machine is in the
process of downloading updated firmware. This feature will only function if the machine is
connected to your local wi-fi.
