DESCRIPTION OF CONTROLS - JASIC EVOLVE 200

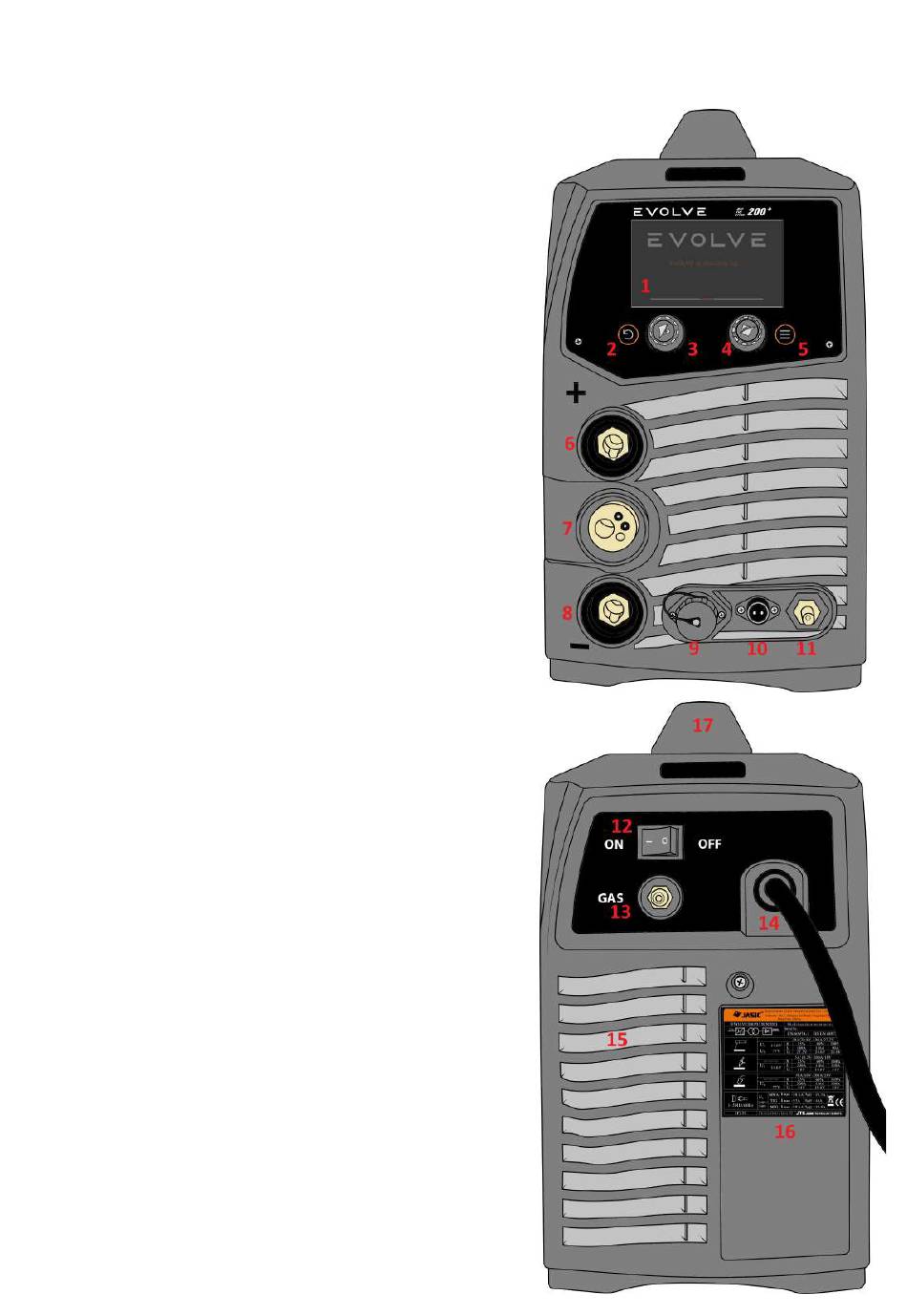

Front view Jasic Evolve 200+
1. 5" Digital touch screen (see page 14 For further information)
2. Back 'control' button
3. Left control dial and switch
4. Right control dial and switch
5. Menu control button
6. "+" Output terminal, The connection for the torch in
MIG mode *
7. MIG torch outlet, The connection used to connect the
euro style MIG torch
8. "-" Output terminal, The connection for the work return
lead in MIG mode *
9. Wired remote control connection (12 pin socket)
10. TIG torch switch connection (2 pin socket)
11. TIG torch Shielding gas outlet connection, (quick connect/
release fitting type)
* Panel socket size is 35/50mm
Rear view Jasic Evolve 200+
12. ON/OFF power switch
13. Shielding gas inlet (quick connect/release fitting type)
14. Input power cable
15. Cooling air vents
16. Machines technical specification plate
17. Carry handle
