OPERATION TIG
Before starting any welding activity ensure that you have suitable eye protection and
protective clothing. Also take the necessary steps to protect any persons within the welding
area.

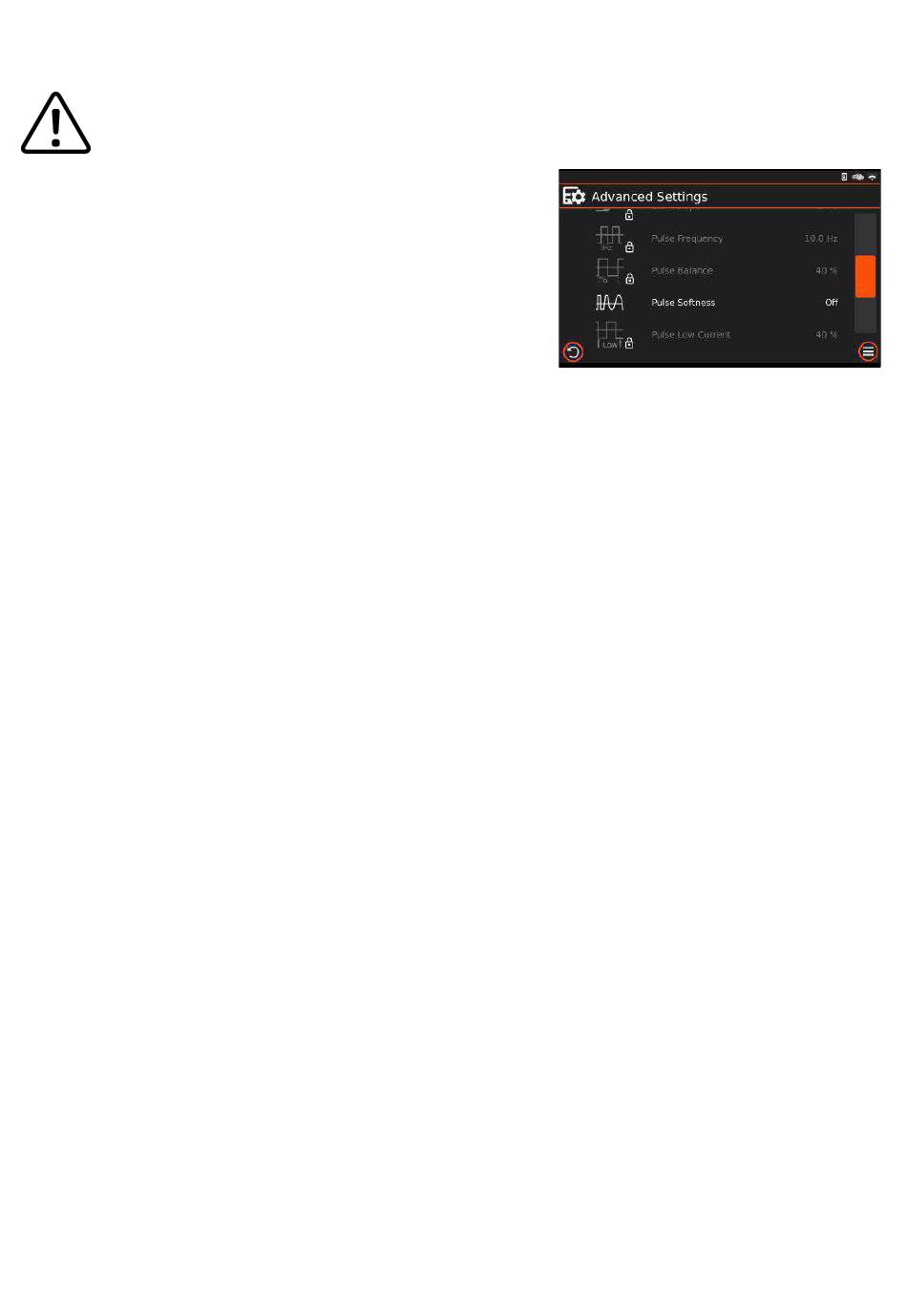

TIG - Advanced settings menu (continued)
Please Note:
The advanced options listed will depend on a number of factors,
If for example you have TIG Pulse, TIG Mix or Spot mode
selected you would see additional options listed than if you had
TIG standard selected. You may also note that some functions
and locked, this is because some settings will only adjust in
manual mode rather than in Synergic mode.
The list below details all option possible regardless of what TIG mode or options are selected.
HF Switch:
TIG starting mode selection switch (contact or non contact ignition): When you select this setting, you
can either select HF arc start ignition or lift arc ignition in TIG mode. Pressing and the rotating the left
dial will allow you to select HF or Lift TIG mode.
Pregas Timer:
Select the pre flow time setting function by rotating the left control dial until pre gas is highlighted,
pressing and then rotating the left dial will allow you to adjust and set the pre flow time in seconds.
Start Current:
Select the initial current setting function by rotating the left control dial until start current is highlighted,
pressing and then rotating the left dial will allow you to adjust and set the initial current.
Start Timer:
Select the start timer setting function by rotating the left control dial until start timer is highlighted,
pressing and then rotating the left dial will allow you to adjust and initial current time in seconds.
Start Slope: (Up slope)
Select the upslope time setting function by rotating the left control dial until start slope is highlighted,
pressing and the rotating the left dial will allow you adjust the slope up time in seconds.
Pulse Frequency:
When in TIG pulse mode, Select pulse frequency setting function by rotating the left control dial until
pulse frequency is highlighted, pressing and the rotating the left dial will allow you adjust pulse frequency
in Hz.
Pulse Balance:
When in TIG pulse mode, Select pulse balance setting function by rotating the left control dial until pulse
balance is highlighted, pressing and the rotating the left dial will allow you adjust pulse balance in
percentage.
Pulse Softness:
When in TIG pulse mode, Select pulse softness setting function by rotating the left control dial until pulse
softness is highlighted, pressing and the rotating the left dial will allow you to turn on/off pulse softness
mode.
Pulse Low Current:
When in TIG pulse mode, Select pulse balance setting function by rotating the left control dial until pulse
balance is highlighted, pressing and the rotating the left dial will allow you adjust pulse balance in
percentage.
