OPERATION - SYNERGIC MIG
Before starting any welding activity ensure that you have suitable eye protection and
protective clothing. Also take the necessary steps to protect any persons within the welding
area.
MIG/MAG Synergic Welding Mode:
Advanced Settings Menu (Continued)

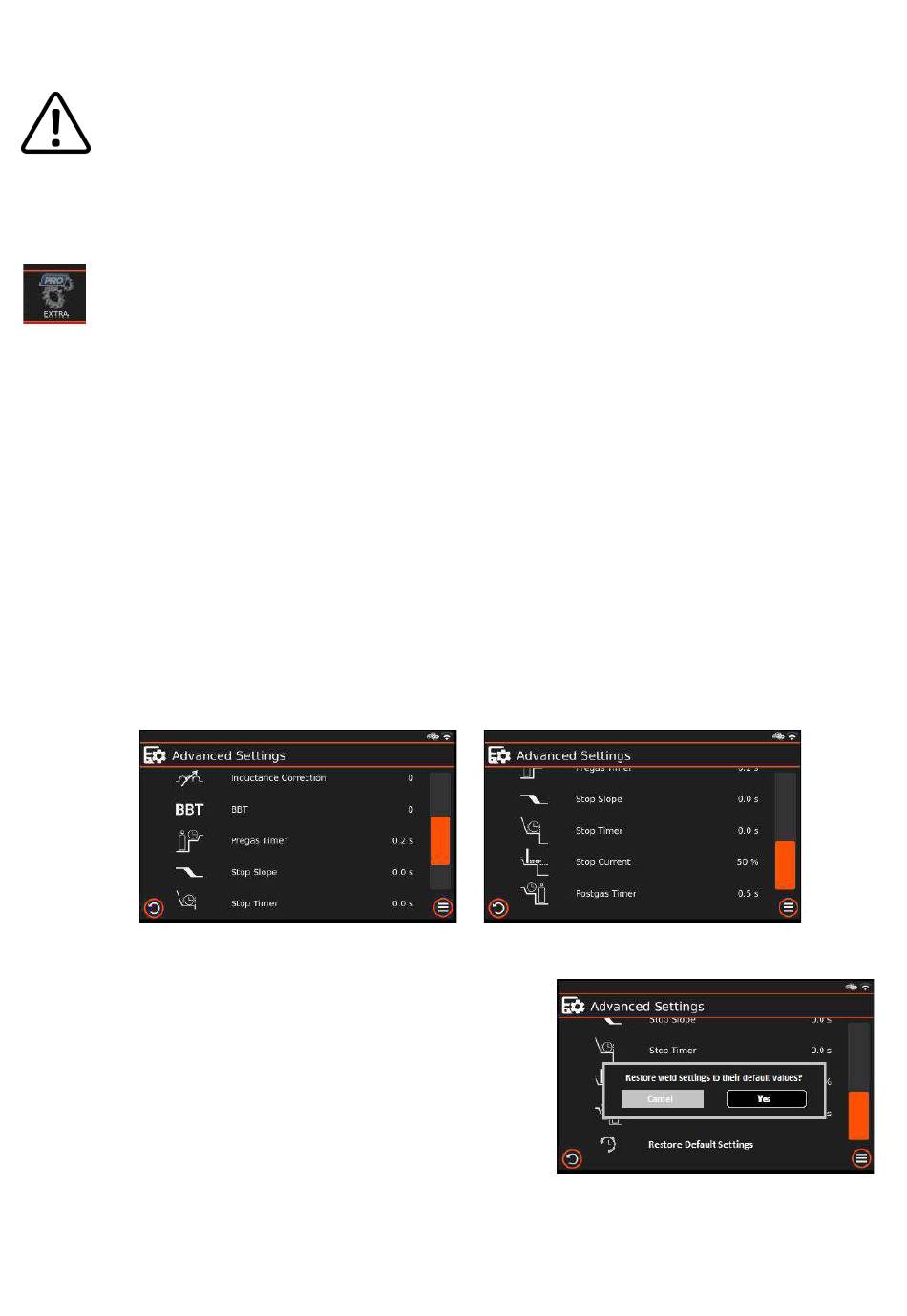

On entering the 'extra' option in Synergic MIG mode, the 'Advanced settings' drop down
selection list is quite extensive and using the touch screen you can slide the orange bar down
to see and then access further adjustment parameters.
You can either rotate the left control dial to scroll through the selection and press the left control dial
to access the required parameter or use the touch screen to select your chosen setting.
Pregas Time:
Inductance:
Burnback Time:
Stop Slope:
Stop Current:
Stop Timer:
Postgas Timer:
GLICK Level:
Restore Settings:
Resetting MIG parameters to factory settings.
This option will restore MIG synergic parameters back to factory
settings.
Upon selecting synergic MIG Restore Default Settings option,
a pop up window will be activated which will that allows the
operator to restore synergic MIG parameters to the factory
settings by selecting 'yes' as shown right.
Once confirmed, your choice is saved and you will be returned
back to the advanced settings screen.
Pressing the cancel option will return you back to the previous screen and no changes will have been
saved.
Initial gas time adjustment range is 0.1 to 10 Seconds.
Inductance adjustment range is -10 to +10.
Burnback time adjustment range is -10 to +10.
Slope down time, (peak to stop ) current, adjustment range is 0.1 to 10 Seconds.
Stop (final) current value, adjustment range is 20 to 80% of peak value.
Stop (final) current time, adjustment range is 0 to 10 Seconds.
Final gas time adjustment range is 0.1 to 3 Seconds.
If 4T trigger mode is selected then Glick Level will also be highlighted and can be
adjusted from 20 to 90% and off.
