EVOLVE 200 MACHINE WELDING MODES
Welding modes available
The Jasic Evolve 200 welding modes are as follows:
•
MMA mode (DC Only)
(Manual and Synergic function is also available)
•
TIG HF mode (DC Only)

Standard

Pulse

Mix
(Manual or Synergic function is also available in each TIG mode)
•
MIG mode (DC Only)

Manual

Synergic

Pulse

Double pulse
Once the machine is powered up and the boot up sequence is complete, you will be able to select the
required welding mode via the top left menu icon of either MMA, TIG or MIG.
To access these options, you can either rotate the left hand control dial and confirm by pressing the
same control dial OR by pressing the touch screen and sliding your finger to select the required choice.
An alternative to using the screen to change welding mode is for example, if the machine is set in MMA
mode and the operator wants to weld in MIG, it is sufficient enough (if the MIG torch is connected) that
pressing the MIG torch trigger will automatically place you into MIG welding mode without requiring
the operator to access the control screen, you will also be returned to the last MIG settings used. The
same thing will happen if pressing a TIG torch switch, (if the TIG torch is connected).
To access MMA, from either MIG or TIG mode, you must use the control screen.

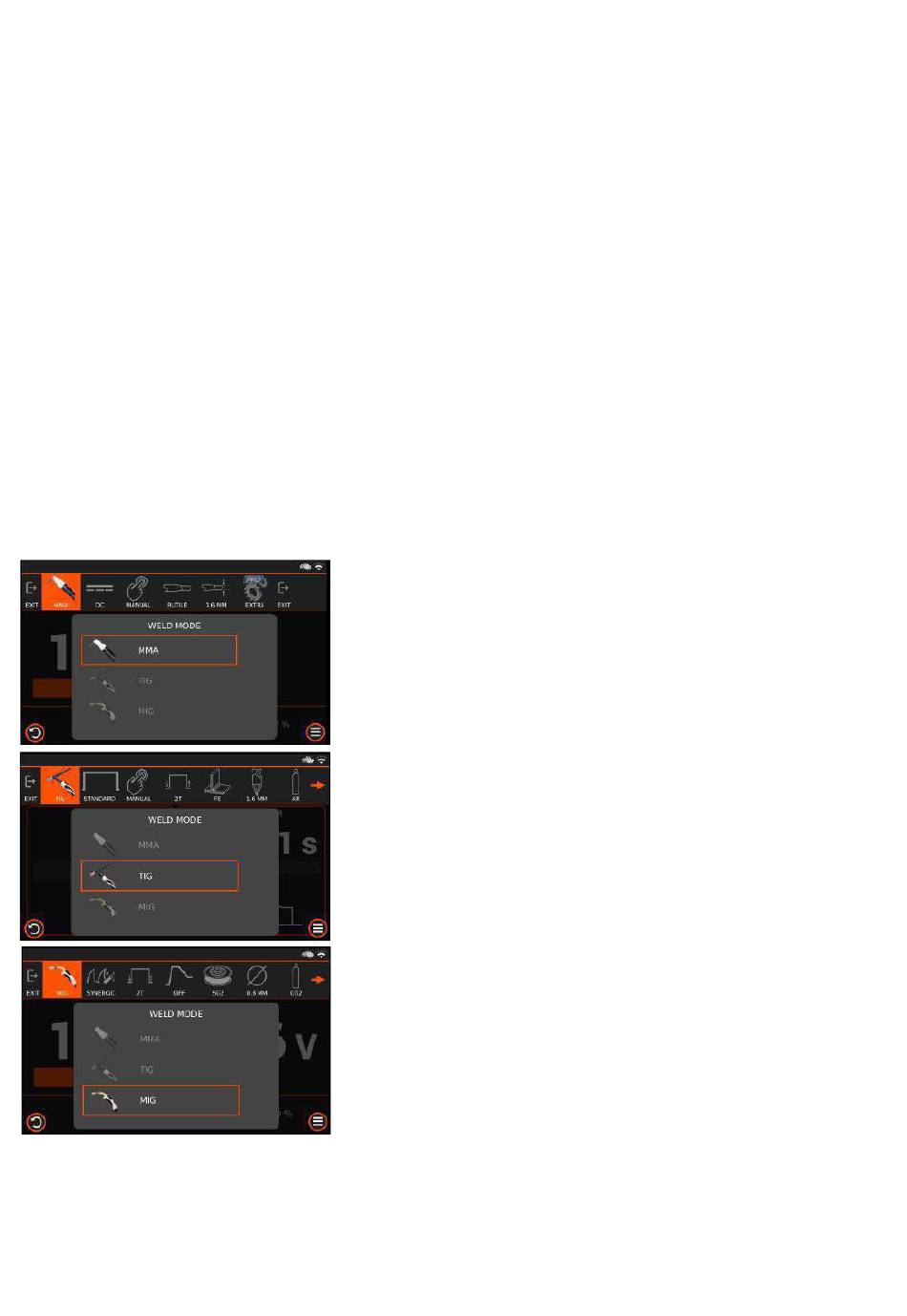

For MMA, select the weld mode icon by either rotating and
pressing the left control dial or touching the weld mode
icon to confirm the required selected welding mode.
For MMA setup instructions, please go to page 23.
For TIG, select the weld mode icon by either rotating and
pressing the left control dial or touching the weld mode
icon to confirm the required selected welding mode.
For TIG setup instructions, please go to page 36.
For MIG, select the weld mode icon by either rotating and
pressing the left control dial or touching the weld mode
icon to confirm the required selected welding mode.
For MIG setup instructions, please go to page 59.
