Jasic EVOLVE 200 Operator's Manual page 82

SET-UP GUIDE
Standard MIG welding, set up as below and select 2T/4T trigger mode dependant on user requirements.
Material type and wire size selection will have no effect in standard MIG/MAG mode.

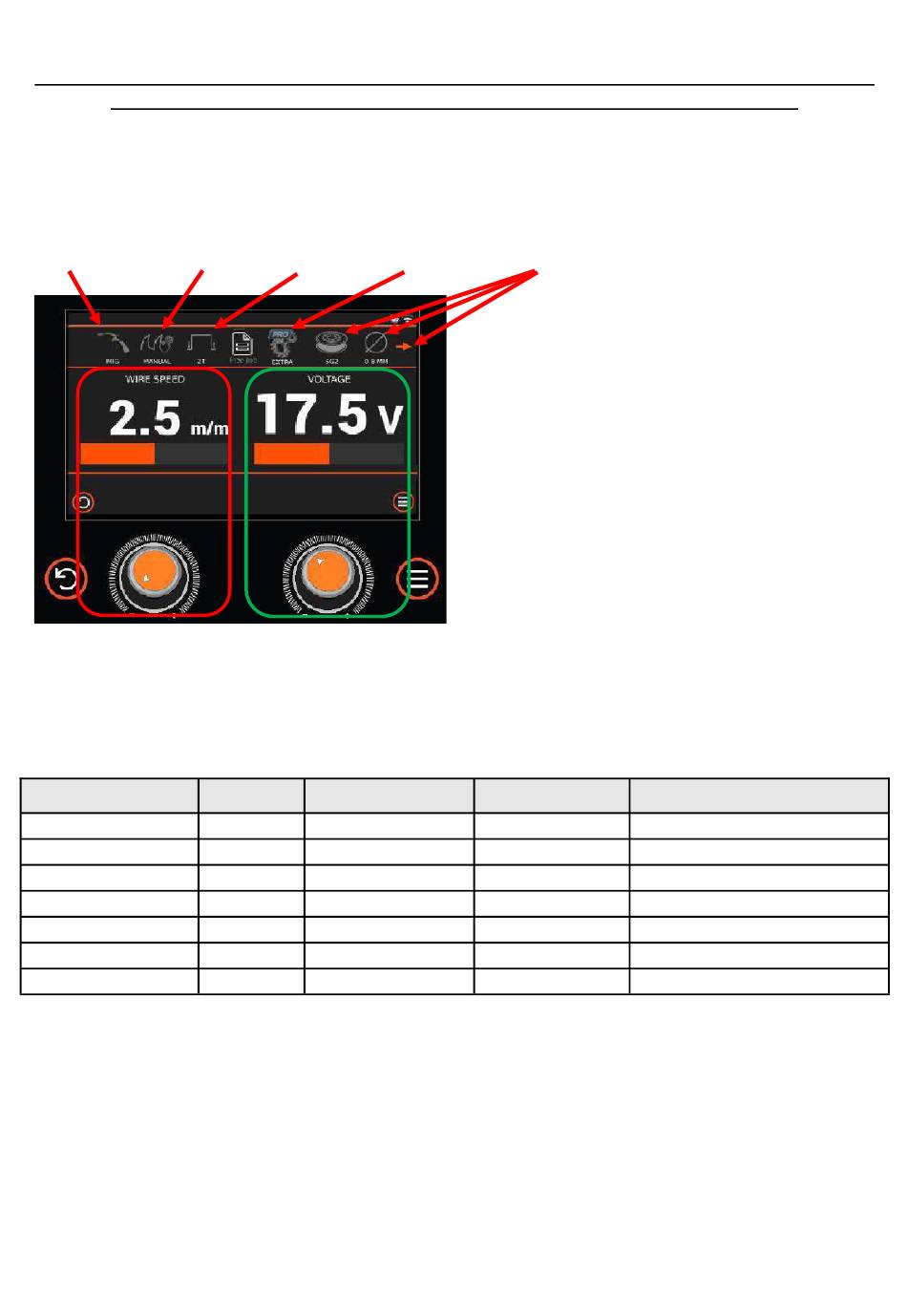

This multi icon bar shows the operator a quick view of MIG options and settings.
The icons shown will change depending on MIG background settings.
Pressing the icons will allow entry to chosen setting.
MIG Mode Manual Mode
The control dial and display area left that is highlighted red when rotated clockwise or anti-clockwise in
standard MIG mode gives the operator the ability to control wire feed speed.
The control dial and display area left that is highlighted green when rotated clockwise or anti-clockwise
in standard MIG mode gives the operator the ability to control welding voltage.
Parameter
Job/Material
PRE-GAS TIME
INDUCTANCE
BURNBACK TIMER
POST-GAS TIME
Wire Feed Speed
Voltage
* Depends on a number of factors, including: material type, weld prep and material thickness will
determine the settings of voltage and wire feed speed.
2T Mode Extra Menu
Units Adjustable Range
--- ---
Seconds 0 ~ 10
- -10 ~ +10
- -10 ~ +10
Seconds 0.1~ 10
m/m 0.8 ~ 18
V 12 ~ 35
STANDARD MIG/MAG
Set Accordingly
Pressing the EXTRA icon will open up the advanced
settings menu, from here you can select various
additional MIG options as shown in the below
table.
Rotating and pressing the left control dial will allow
you to select, adjust and save MIG parameter
settings. You can also use the touch screen to
navigate through and adjust settings as
recommended below.
Guide Setting
---
0.5
0
0
2.0
User Defined *
User Defined *
82
