EVOLVE 200 PRODUCT OVERVIEW

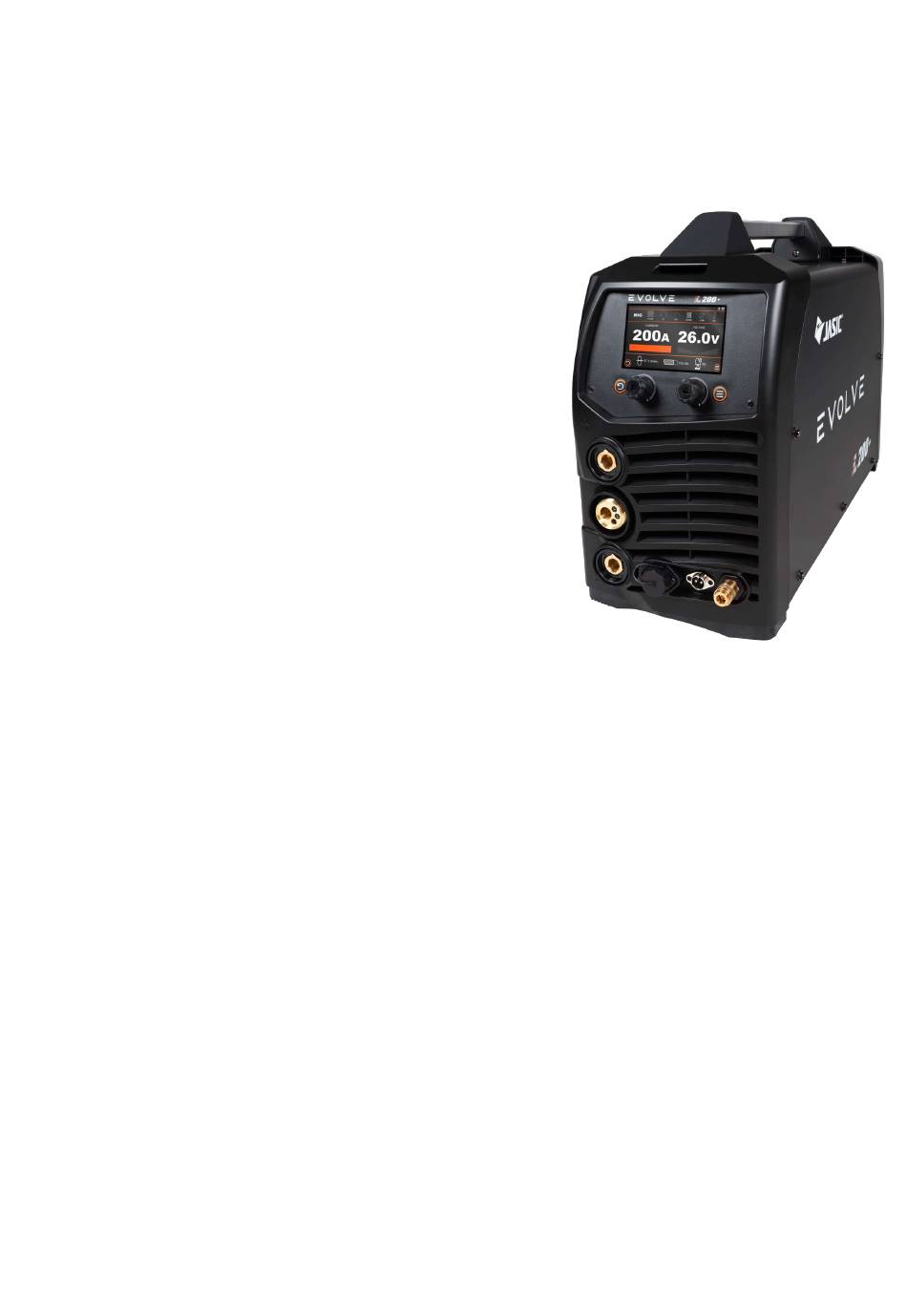

This digital Evolve 200 inverter welding machine feature advanced technology that provides excellent
welding performance along with user experience. The Evolve offers a stable arc that is ideal for MIG,
DC TIG and MMA which can weld carbon steel, low alloy steel, stainless steel and other materials.
Moreover, they offer many adjustable MIG, TIG and MMA functions and features that makes this
Machine very durable and robust machines for a wide range of welding applications.
The unique electrical structure and air passage design inside the
machine increases the dissipation of heat generated by power
devices, thus improving the duty cycle of the machine.
Benefitting from the tunnel air passage, the equipment can
effectively prevent damage to power devices and control
circuits from dust drawn in by the fan, thus greatly improving
the reliability of the equipment.
The 5" touch screen display offers the operator clear and
informative data for the welding processed offered.
Features and functions that include:
•
3 welding processes: MIG Standard, MIG Synergic, MIG pulse ,
and MIG double pulse. TIG DC HF/Lift, TIG Synergic, TIG Pulse,
TIG MIX and MMA.
•
100+ built-in synergic programs
•
The Evolve 200 range offers a robust and industrial look with
ergonomic design that includes tunnel cooling design.
•
5" LCD Touch Screen Display, Selecting weld parameters or changing your settings is easier with the
large 5" touch screen display which offers is clear, easy to navigate interface.
•
230V mains input with auto compensation for mains voltage fluctuation also being generator friendly.
•
MIG features that include 4 roll drive system, standard, pulse and Synergic MIG modes which allows
for dialing in plate thickness, material, gas and wire size selection.
•
Digital MIG torch option allows the operator to adjust amps or voltage from the torch handle.
•
TIG features that include, synergic, pulse, mix, pre/post gas timers, down slope control and 2T/4T
trigger modes plus many more.
•
Digital TIG torch option allows the operator to adjust amps or voltage from the torch handle.
•
Machine features such as, factory reset functions and voltage reduction device (VRD).
•
Fan on-demand, circuitry that assists in prolonging the life span of the internal fan which reduces the
accumulation of grinding dust inside the machine.
•
Overcurrent and overheat protection.
•
MMA features that include, arc force, hot start current and anti-stick that offer easy arc starting, low
spatter, stable current which offers good weld bead shape making this machine ideal for a wide range
of electrodes.
•
Ability to save up to 100 welding programs with welding parameters automatically saved on machine
shutdown which are restored automatically upon restarting the machine.
•
A range of optional wired remote controls are available (via front panel mounted 12 pin socket).
•
MIG spool gun compatible.
•
High quality finish to product mouldings with Heavy duty 35-50mm dinse output sockets.
