REMOTE CONTROL
Before starting any welding activity please ensure that you have suitable eye protection and
protective clothing. Always take the necessary steps to protect any persons within the welding
area.
Remote control application and function
1) Any type of TIG torch switch can be connected to the 2 pin remote socket. Trigger action can be
chosen between 2T, 4T and Spot. The current is adjustable via control panel dial and the orange bar
graphic indicates the graphic level external analog control with 5Kohm potentiometer connected to
the CAD connector which can adjust the welding current, the current bar graph change into double
indication with two colours, the yellow bar graph indicates the maximum set current and its digital
values are reported only during the adjustment by the front panel knob with digits that change colour
into yellow the adjustment from the connected analog control is shown with a orange bar graph and
digital mode over the digits in white colour (Note: the analog control can be also the foot control
without the switch connected).
2) Any type of analog torch (as TER configuration), the cycle can be chosen between 2T, 4T and Spot,
the current set is adjustable by panel knob and orange bar graph indicates the graphic level the
current set can be adjustable also by the push buttons of the analog torch in parallel to the knob of
the front panel the adjustment from the torch can be used also in welding mode when the torch cycle
is set at 4T external analog control with 5Kohm potentiometer connected to the CAD connector can
modulate the welding current, the current bar graph change into double indication with two colours,
the yellow bar graph indicates the maximum set current and its digital values is reported only during
the adjustment by the front panel knob with digits that change colour into yellow the adjustment
from the connected analog control is shown with a orange bar graph and digital mode over the digits
in white colour (note that the analog control can be also the foot control without the switch
connected).
3) Evolve Smart torch connected to the two pole torch switch the Cycle can be chosen between 2T, 4T
and Spot also from the torch the current set is adjustable by panel knob and orange bar graph
indicates the graphic level, the same adjustment can be done also from the smart control of the torch
external analog control with 5Kohm potentiometer connected to the CAD connector can modulate
the welding current, the current bar graph change into double indication with two colours, the yellow
bar graph indicates the maximum set current level and its digital values is reported only during the
adjustment by the front panel knob with digits that change colour into yellow the adjustment from
the smart torch is for maximum set (as for the knob), can be checked in the smart module as value,
but in the front display only the yellow bar graph indicates the changes, the digits show in white
colour the set from remote control. the adjustment from the connected analog control is shown
with a orange bar graph and digital over the digits in white colour (note that the analog control can
be also the foot control without the switch connected).

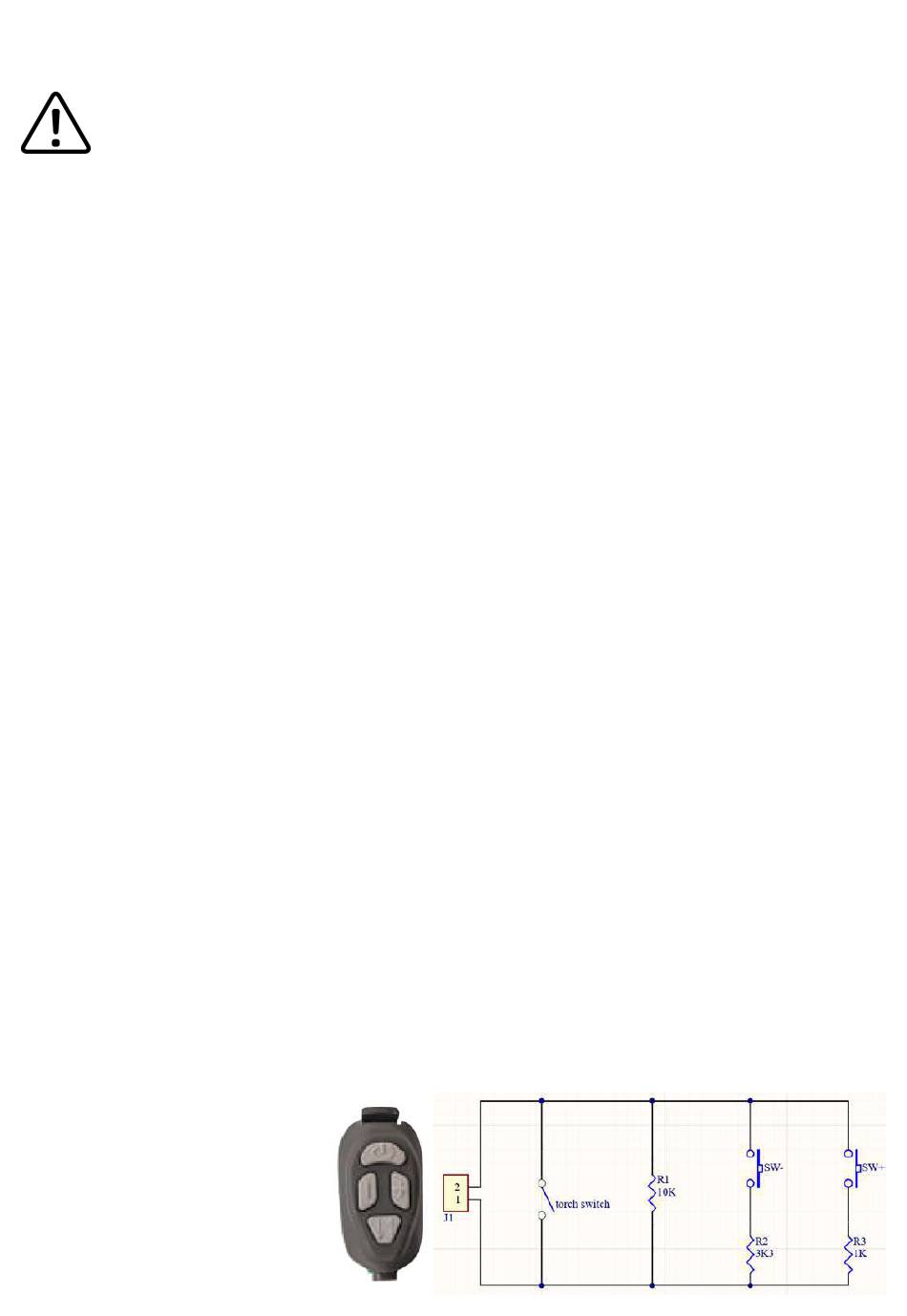

Digital TIG Torch trigger upgrade for TIG-110
Button Action
Top Button Torch Trigger
Bottom Button N/A
Left Button Decrease Current (-)
Right Button Increase Current (+)
4 button trigger module shown
