OPERATION - SYNERGIC MIG
Before starting any welding activity ensure that you have suitable eye protection and
protective clothing. Also take the necessary steps to protect any persons within the welding
area.
MIG/MAG Synergic Welding Mode
Synergic Welding Mode:
Synergic mode is where Welding Power (voltage) and Wire Feed Speed are adjusted together, (rather
than separately), via a single control.
The Evolve 200 has been pre-program with various welding parameters including; MIG welding wire size,
the material type and shielding gas being used.
With this information, the machine sets itself up with the ideal parameters for welding.
You can then for added convenience see and compare additional features such as material thickness
being welded.
In most cases, It's wire feed speed within the machine's synergic programming that sets the welding
power output to match your application. So, increasing wire feed speed will increase the machines
power output to suit.

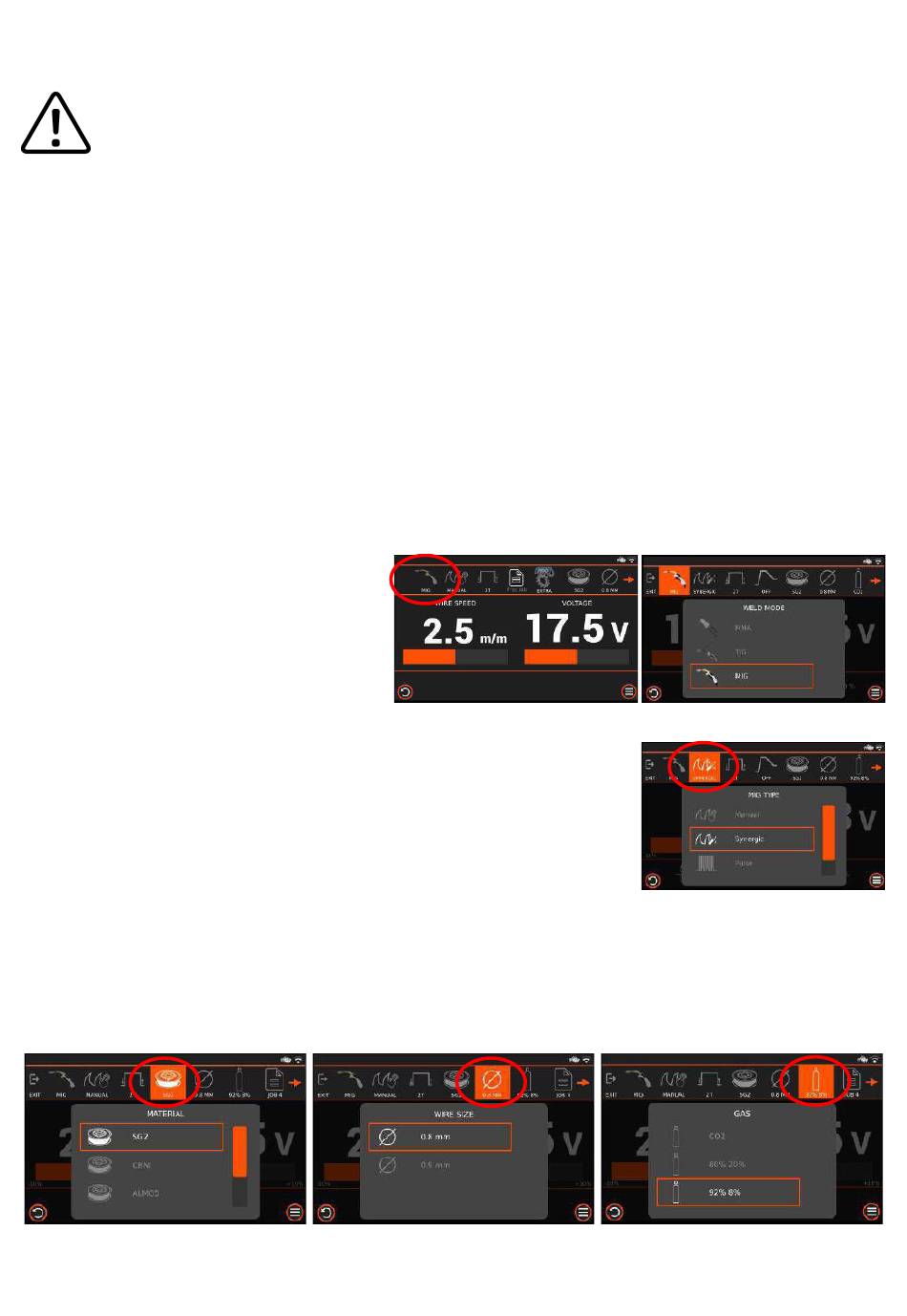

Selecting MIG mode:
Following on from manual MIG mode (see
from page 65 for details) selecting MIG is
easily actioned by pressing the MMA/TIG/
MIG icon to select MIG welding mode.
Upon selecting MIG, the MIG corresponding
icon will be shown as circled red right.
Selecting Synergic MIG mode:
Press the Manual/Synergic/Pulse/Double Pulse icon to select MIG manual
mode. Upon selecting synergic mode, only the Synergic corresponding icon
will be shown as circled red right.
The control panel image right is an example of the Evolve 200 now set up
in synergic MIG mode.
Material, Wire Size and Gas Selection:
In Synergic MIG mode, selecting material, wire size and shielding gas will have an effect on the welding
characteristics, for example improves default ignition and burnback settings along with user setup ease.
Press in turn, the material, wire size and gas icon to select the relevant choices.
Upon selecting your chosen specifications, the corresponding icons will be shown as circled red below.
