OPERATION MIG
Before starting any welding activity ensure that you have suitable eye protection and
protective clothing. Also take the necessary steps to protect any persons within the welding
area.
Display Area Top Bar - MIG Mode (continued)

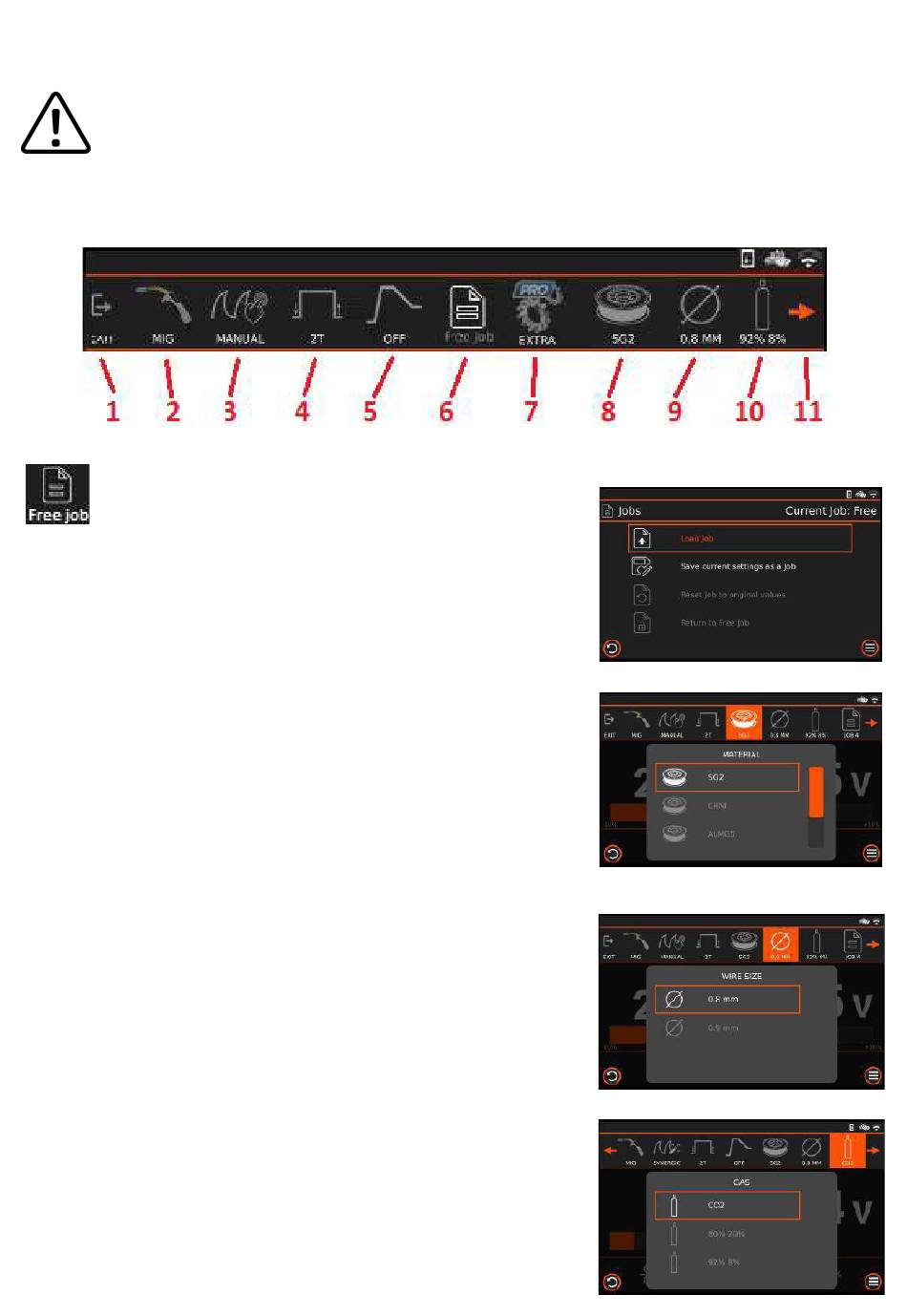

This multi icon bar shows the operator a quick view of MIG options and settings. The icons shown will
change depending on MIG background settings. Pressing the icons will allow entry to chosen setting.
6. Memory function:
The Evolve 200 is capable of storing 100 Jobs in it's memory and the jobs menu can be accessed
from pressing the job menu icon as shown left. If a Job No is
selected, the reference number of the Job is showing in the
icon display. If 'Free' is displayed, this indicates that no job is selected.
•
Load job
•
Save Current Settings as a Job
•
Reset Job to original values
•
Return to Free Job
8. Material type: (Manual, Synergic and Pulse Mode)
Pushing the button allows access to selecting the welding wire
material type set up in the machine.
•
0.8
•
0.9
•
1.0
•
1.2
Please Note:
Depending on the material selected, wire size options may change.
9. Welding Wire Size: (Manual, Synergic and Pulse Mode)
Pushing the button allows access to selecting the MIG welding wire
size set up in the machine.
•
SG2: Mild Steel
•
CRNI: Stainless Steel
•
ALMG5: Aluminium Magnesium (AM5356)
•
ALSI5: Aluminium Silicon (AM4043)
•
CUSI3: Silicon Bronze
10. MIG welding gas: (Manual, Synergic and Pulse Mode)
Pressing the gas selection icon button allows the operator to change the
MIG welding gas, the chosen gas corresponding icon will be shown in the
top menu bar, as shown right.
Please Note:
Depending on the material selected, gas selection options may change.
