Jasic EVOLVE 200 Operator's Manual page 43

OPERATION TIG
Before starting any welding activity ensure that you have suitable eye protection and
protective clothing. Also take the necessary steps to protect any persons within the welding
area.

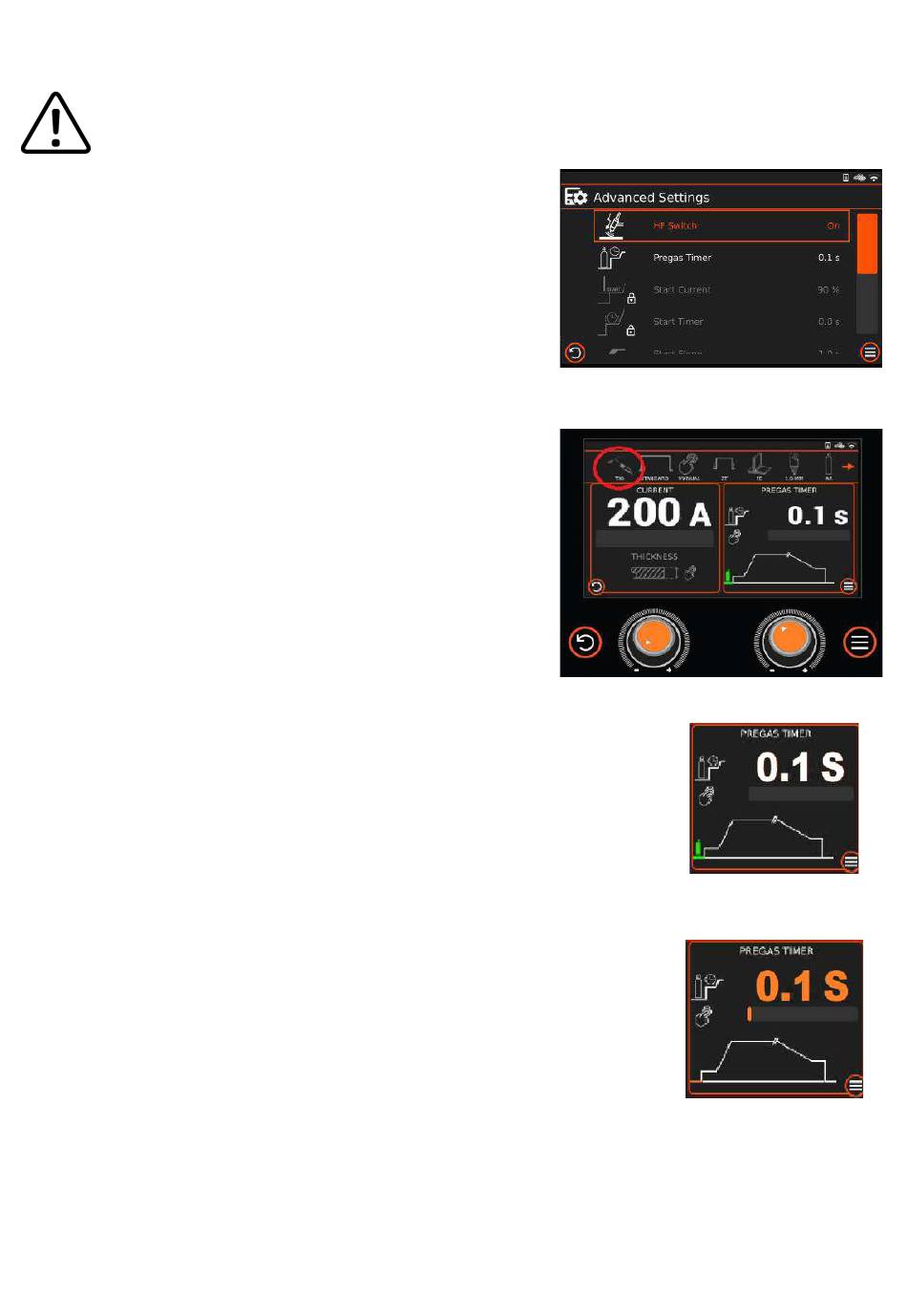

TIG welding parameter settings
Please remember that the advanced options listed will depend
on a number of factors, If for example you have TIG Pulse, TIG
Mix or Spot mode selected you would see additional options
listed than if you had TIG standard selected. You may also note
that some functions and locked, this is because some settings
will only adjust in manual mode rather than in Synergic mode.
TIG welding
Select TIG welding mode by pressing the welding mode icon (circled red), and from the drop down menu
select TIG (other choices are MMA and MIG) and the TIG icon will
then be shown as in the image right (circled red).
TIG Welding Current Adjustment
TIG welding current adjustment can now be carried out via the
panel control current dial A (as shown right) rotating the dial
either clockwise or anticlockwise which will increase or decrease
the welding amperage (200A as shown right) will be displayed
within the current display above the left control dial.
Welding current adjustment can be carried out during welding.
TIG Welding Parameters Adjustment
As shown in the previous pages (40-42), you can select and adjust various TIG
parameters with the right control dial which are shown in the right display area
of the user screen such as pre-gas time, start current, start time, slope up and
slope down times, final current, final current time and post-gas time as well as
Pulse and Mix features if these modes have been activated.
As shown in the example right, the Pregas timer is shown and the value set is 0.1
seconds.
To select the various parameter settings, rotate the right control dial and as you rotate clockwise or
anti-clockwise the parameter icon will be highlighted green.
Once the parameter icon is highlighted green, press left control dial and you will
note that the Pregas time is now orange and that again in colour area of the
until start slope is highlighted, pressing and then rotating the right control dial
clockwise or anti-clockwise will adjust the value of the chosen parameter.
When adjusting the chosen parameter the value change will also be noted by
the orange bar below increasing or decreasing in length accordingly.
43
