Double Pulse Mig - Jasic EVOLVE 200 Operator's Manual

SET-UP GUIDE
For Double Pulse MIG welding, set up as below and select 2T/4T trigger mode dependant on user requirements.

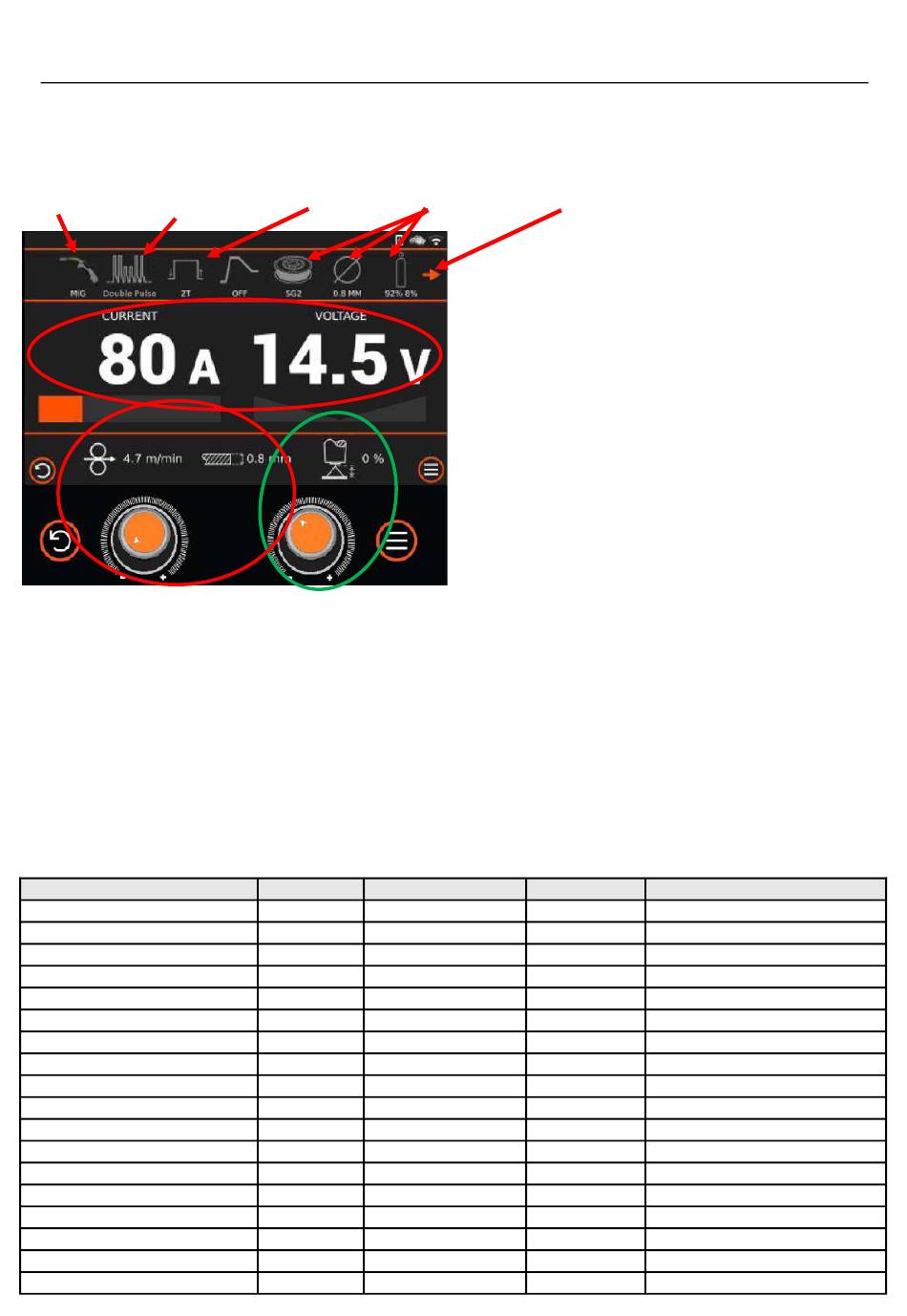

This multi icon bar shows the operator a quick view of MIG options and settings.
The icons shown will change depending on MIG background settings.
Pressing the icons will allow entry to chosen setting.
MIG Mode Double Pulse Mode
Pressing the EXTRA icon will open up the advanced settings menu and from here you can select various
additional MIG welding parameters as shown in the below table.
Rotating and pressing the left control dial will allow you to select, adjust and save MIG parameter settings.
You can also use the touch screen to navigate through and adjust settings as recommended below.
The left control dial and display areas highlighted red when rotated clockwise or anti-clockwise in synergic MIG
mode gives the operator the ability to control, adjust and see simultaneously welding current, wire feed speed
and material thickness change to suit the required settings. The adjustable range will be determined by the
material type, wire size and shielding gas that has been selected
The right control dial and display area that is highlighted green when rotated in synergic MIG mode gives the
operator the ability to control voltage trim (stick out).
Parameter
Job/Material
Start Force
Hot Start
PRE-GAS TIME
START CURRENT
START CURRENT TIME
START SLOPE
INDUCTANCE
BURNBACK TIMER
DOUBLE PULSE MODE
DOUBLE PULSE FREQUENCY
DOUBLE PULSE LOW CURRENT
DOUBLE PULSE BALANCE
STOP SLOPE
STOP CURRENT TIME
STOP CURRENT
POST-GAS TIME
GLICK Level
2T Mode Set Accordingly Further Menu options (including Extra)
Units Adjustable Range
--- ---
% 0 ~ 10
- On / Off
Seconds 0 ~ 10
% (of peak) 20 ~ 150
Seconds 0 ~ 10
Seconds 0 ~ 10
- -10 ~ +10
- -10 ~ +10
- Standard/Advanced
Hz 0.5 ~ 5
% 10 ~ 90
% 10 ~ 90
Seconds 0 ~ 10
Seconds 0 ~ 10
% (of peak) 20 ~ 150
Seconds 0.1~ 10
% 20 ~ 90% ~ Off
DOUBLE PULSE MIG/MAG
Once you have set the machine to MIG mode and
synergic mode, it's important that you set the following
up correctly:
•
Set the material type.
•
Set the wire size being used.
•
Set shielding gas being used.
The above settings are crucial in order to set up the MIG
synergic programs correctly.
Pressing and then rotating the left control dial will allow
you to select, adjust, recall and save various MIG
welding parameter settings. You can also use the touch
screen to navigate through and adjust settings as
recommended below.
Guide Setting
---
3
Off
0.2
80
0
0
0
0
User choice
1
50
50
0
0
50
0.5
Off
85
Notes
Not available in 4T
Not available in pulse standard
Not available in pulse standard
Not available in 4T
Not available in 2T
