OPERATION MIG
Before starting any welding activity ensure that you have suitable eye protection and
protective clothing. Also take the necessary steps to protect any persons within the welding
area.
MIG - Advanced settings menu (continued)
Please Note:
The advanced options listed will depend on a number of factors,
for example, if in either MIG synergic, pulse or double pulse
mode with 'spot' mode selected, you would see additional
options listed than if you were in manual MIG mode.
You may also note that some functions are locked (shown with
a padlock symbol), this is because some options can only be
adjusted in manual mode rather than in Synergic mode.

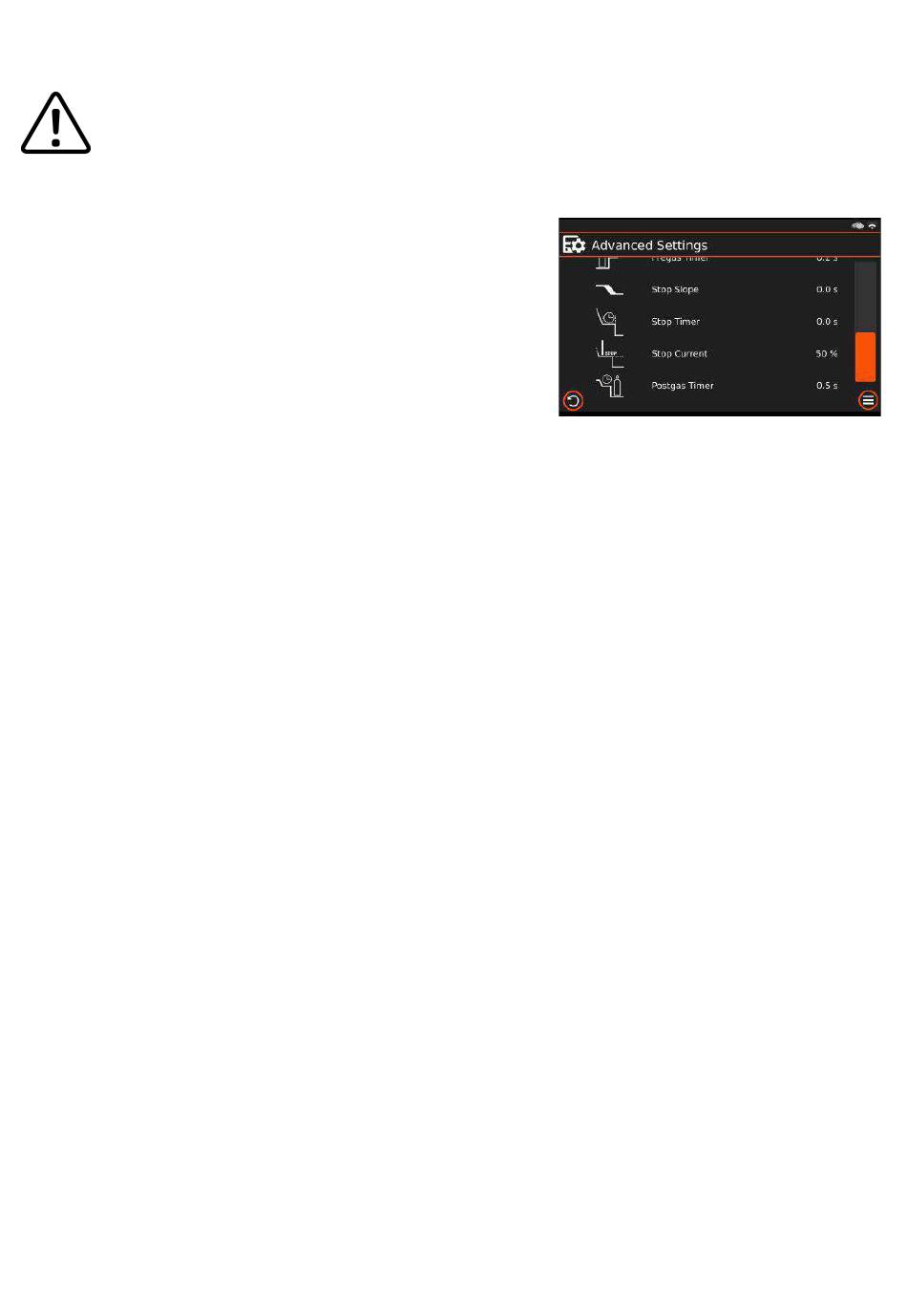

The MIG Advanced settings options list, values and description
are as shown below, all options possible are listed regardless of what MIG mode or options is selected.
Double Pulse Frequency: (standard or advanced)
When in double pulse mode, Select double pulse frequency setting function by rotating the left control
dial until double pulse frequency is highlighted, pressing and the rotating the left dial will allow you
adjust double pulse frequency in Hz from 0.5 to 5Hz.
Double Pulse Balance: (advanced only)
When in double pulse mode, Select double pulse balance setting function by rotating the left control
dial until double pulse balance is highlighted, pressing and the rotating the left dial will allow you adjust
double pulse balance in percentage from 10 to 90%.
Pulse Low Current: (advanced only)
When in double pulse mode, Select double pulse balance setting function by rotating the left control
dial until double pulse balance is highlighted, pressing and the rotating the left dial will allow you adjust
double pulse balance in percentage from 10 to 90%.
Stop Slope: (Synergic and Pulse modes only)
Select the stop slope time setting function by rotating the left control dial until stop slope is highlighted,
pressing and the rotating the left dial will allow you to adjust the downslope time in seconds.
Stop Timer: (Synergic and Pulse modes only)
Select the stop timer setting function by rotating the left control dial until start timer is highlighted,
pressing and then rotating the left dial will allow you to adjust and final current time.
Stop Current: (Synergic and Pulse modes only)
Select the initial current setting function by rotating the left control dial until start current is highlighted,
pressing and then rotating the left dial will allow you to adjust and set the final current.
Post Gas Timer:
Select the post flow time setting function by pressing the adjustment control knob until post gas is
highlighted and then rotating the left dial will allow you to adjust post flow gas time in seconds.
GLICK Level: (4T Synergic and Pulse modes only)
When in MIG 4T mode, Select Glick level setting function by rotating the left control dial until Glick level
is highlighted, pressing and the rotating the left dial will allow you to turn Glick level on/off.
Restore Default Settings:
Selecting Parameter reset to factory settings is done by rotating the left control dial until restore default
settings is highlighted, pressing and then rotating the left dial will retore all MIG parameters to default
factory settings.
