Jasic 315P AC/DC Digital Operator's Manual
  1. Manuals
  2. Brands
  3. Jasic Manuals
  4. Welding System
  5. 315P AC/DC Digital
  6. Operator's manual

Jasic 315P AC/DC Digital Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
List Price €0000
Order Code: 14.10.00315001
Key Features
• TIG Pulse AC/DC with digital control
• Program memory storage
• Peak current control, 2T/4T
• Pre-post flow time, up/down slope
• Pulse adjustment
• Pulse frequency, pulse duty, arc force, cleaning width
• Remote control interface
• AC function for aluminium and aluminium alloys
• DC TIG function for carbon steel,
copper and non-ferrous metals
• Smooth arc and stable welding performance
• Integrated water cooler
Technical Data
AC 400V - 50/60 Hz
AC 30 - 320
DC 10 - 320
50
Dimensions LxWxH
820 x 420 x 960
Accessories/Optional Items
Part Number
Description
* 14.00.00303000 Earth Clamp and 3m Cable
14.00.33000000 Electrode Holder and 3m Cable
* 14.00.00000011 Water Cooler
* 14.00.00001000 Trolley
* 14.00.40000000 T18 4m Torch
14.00.40000001 T18F 4m Torch
14.00.40800000 T18 8m Torch
14.00.40800001 T18F 8m Torch
14.00.00000010 Foot Control
* Comes as Standard
List Price €1932.00
Ieff
13A
13.1
315A @ 20%
Class: IP21S/B
76
€ List Price
27.60
28.00
314.00
250.00
130.00
134.00
170.00
174.00
42.00

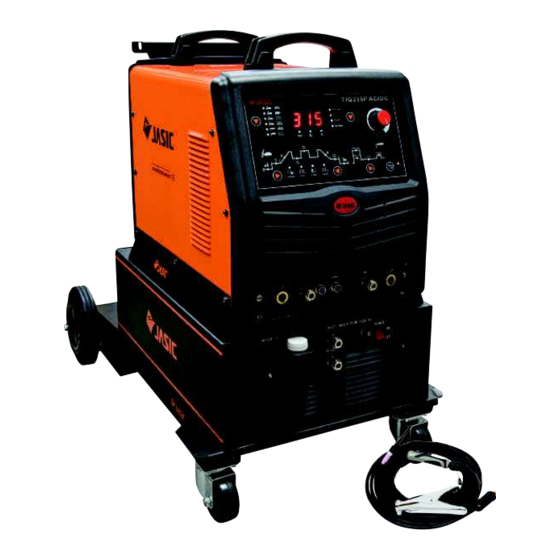

TIG 315P AC/DC Digital Water Cooled
The JASIC TIG 315 Pulse AC/DC is a technologically advanced
three-phase inverter power source is suitable for medium to large
production work.
The innovative and user-friendly digital panel allows full control
of the welding parameters.
The excellent technical characteristics of the 315 AC/DC make it
an ideal choice for professionally qualified TIG welders that require
precise and reliable performance.
This modular design TIG welding system includes the trolley
& water cooler as standard.
1
5
Process Selection Switch
1
2
Digital Display
3
Control Function Switch
4
Adjustment Dial
2
4
3
7
6
8
5
Parameter Adjustment Switch
6
Parameter Adjustment Switch
7
MMA Features
8
Foot Control Option
* *
25.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 315P AC/DC Digital and is the answer not in the manual?

Questions and answers

Related Manuals for Jasic 315P AC/DC Digital

Summary of Contents for Jasic 315P AC/DC Digital

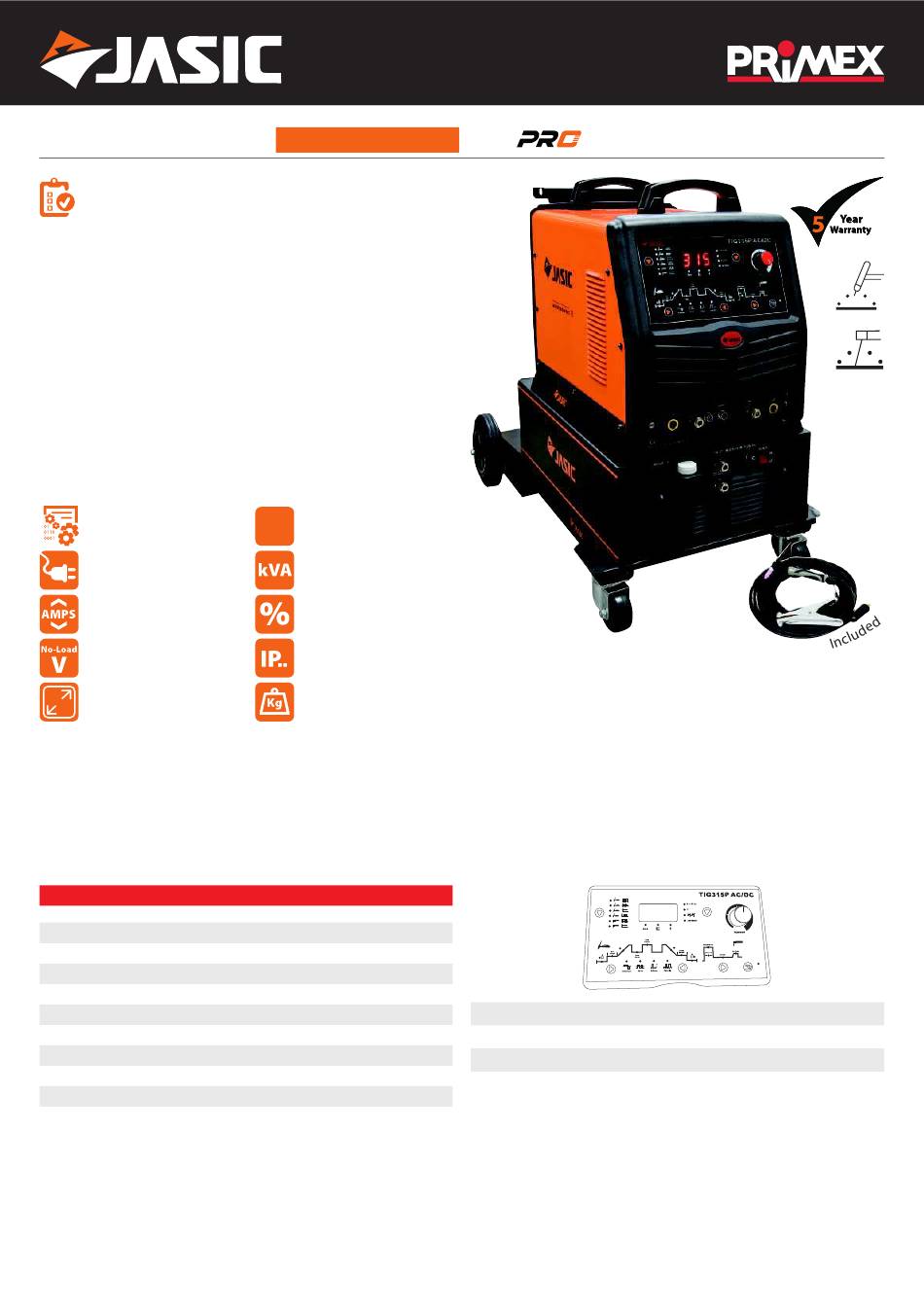

  • Page 1 AC 30 - 320 315A @ 20% DC 10 - 320 Class: IP21S/B The JASIC TIG 315 Pulse AC/DC is a technologically advanced Dimensions LxWxH three-phase inverter power source is suitable for medium to large production work. 820 x 420 x 960 The innovative and user-friendly digital panel allows full control of the welding parameters.
  • Page 2 TIG Series TIG 200P AC/DC Digital (JT-200D) TIG 315P AC/DC Digital (JT-315D) Operator Manual...
  • Page 3 Your new product Thank you for selecting this Jasic Technology, Wilkinson Star product. This product manual has been designed to ensure that you get the most from your new product. Please ensure that you are fully conversant with the information provided paying particular attention to the safety precautions. The information will help protect yourself and others against the potential hazards that you may come across.

  • Page 4: Safety Precautions

    Safety Precautions These general safety norms cover both arc welding Insulate yourself from work and ground using dry insulating mats or covers big enough to prevent any physical contact machines and plasma cutting machines unless with the work ground. otherwise noted. Never touch the electrode if you are in contact with the work The equipment must only be used for the purpose it was ground, or another electrode from a different machine.
  • Page 5 Do not weld on coated metals, unless the coating is Replace the coverings and protections and close all doors removed from the weld area, the area is well ventilated, and when the intervention is finished, and before starting the while wearing an air-supplied respirator. The coatings on equipment.
  • Page 6 Keep your head and face away from the cylinder valve outlet RF Declaration when opening the cylinder valve. Equipment that complies with directive 2004/108/EC Always secure the cylinder safely concerning electromagnetic compatibility (EMC) and the technical requirements of EN60974-10 is designed for use in Never deface or alter any cylinder industrial buildings and not those for domestic use where electricity is provided via the low voltage public distribution...

  • Page 7: Product Overview

    Product Overview The JT-200D and 315D are a series of digital controlled AC/ is,the performance of welding machine will not be affected DC pulsed TIG/MMA inverter welding machines with by the change of the parameters of certain components. It excellent performance and utilising advanced technology can also compensate for any change of the working system.
  • Page 8 are programmable, which offers a facility for a user‘s special application. Remote control available The machine offers an analog remote control mode (foot control), which can realise real-time adjustment of TIG welding current over 10m away. Robot system for automatic welding available The machine is provided with RS-485 communication interface, and it is easy for users to use with an automatic welding system or with other equipment with the embedded...

  • Page 9: Technical Data

    Technical data Parameter JT-200D AC/DC JT-315D AC/DC Input voltage Range 3-phase 280~420V AC, 50/60Hz Single-phase 190~250V AC, 50/60Hz Rated input capacity (KVA) Rated input power (KW) Recommended fuse capacity (A) Rated duty cycle @ 40 TIG: 315@20% - MMA: 250@40% TIG: 200@35%- MMA: 160@40% No-load voltage (V) Insulation class...
  • Page 10 Controls Front view JT-200D Front view JT-315D Control panel Control panel Negative output socket Negative output socket Torch gas connector Torch gas connector Torch switch connector Torch switch connector Remote control connector Remote control connector Positive power connector Water connection Mains switch Positive power connector Adjustment control...
  • Page 11 Rear View JT-200D Rear View JT-315D Data plate Data plate Power cable input 10. Power cable input 11. Shield gas input connector 11. Water input connector 12. Serial number 12. Shield gas input connector 13. Serial number 14. Mains switch...
  • Page 12 Control Panel 1. Welding mode selector 2. Parameter and alarm displays 3. Parameter adjustment knob 4. Mains on off switch 5. TIG parameter selection area 6. MMA parameter selection area 7. Remote control selection JT-200D panel shown 1—Welding mode selecting zone It is used to select the welding mode.
  • Page 13 5—TIG parameter selecting zone 1-Pre-flow time 7-Pilot arc current 2-Initial current 8-Post-flow time 3-Upslope time 9-Pulse frequency 4-Base current 10-Pulse duration ratio 5-Peak current 11-AC frequency 6-Downslope-time 12-Cathode current 6-MMA Parameter selection area   1-Arc ignition current 2-Arc ignition time 3-Welding current 4-Arc force current 5-MMA parameter selecting key...
  • Page 14 Parameter setting Operation hints Selection and adjustment of parameters ● Press “↓” in parameter display selecting zone to select the parameter to be displayed. ● Press “↓” in welding mode selecting zone to select welding mode (totally 6 welding modes). ●...
  • Page 15 Program key setting arc is ignited. Arc ignition time is the time the arc ignition MMA (DC) current lasts. When in high current ignition mode, the arc ignition current is generally 1.5~3 times the welding current, and the arc ignition time is 0.02~0.05s. When in low current ignition mode, the arc ignition current is generally 0.2~0.5 times the welding current, and the arc ignition time is 0.02~0.1s.
  • Page 16 electrode. When in AC TIG or for special materials, the time MMA (AC) should be longer. Upslope time (tr): It indicates the time taken for the current to rise from 0 to the pre-set value, and it should be set according to users’...
  • Page 17 Cleaning strength (100%*Tc/Tp): Generally, in AC welding, when taking the electrode as the anode, the current is called the cathode current. Its main function is to break up the oxidized layer of the work piece, and the cleaning strength is the percentage cathode current holding in the AC period.
  • Page 18 higher frequency to the peak pulsed current with lower TIG operation modes frequency, some special welding requirements can be met. Torch trigger Complicated complex waveform DC pulsed welding can be Mode no. Operation operation and obtained by selecting the operation mode 18/19 or self- current curve programming in pulsed welding mode.
  • Page 19 Standard 4T mode: ① Push the torch trigger: arc is ignited and current reaches the initial value. ② Release it: current rises gradually. ③ Push it again: current drops to pilot arc current value. ④ Release it: arc stops. Double operation 4T mode: ①...
  • Page 20 Cycle double operation mode without initial current: ①" Push the torch trigger: arc is ignited and current rises gradually. The torch trigger can be released at any time. ②" Push the torch trigger and release it at once: current drops to pilot arc current value. ③"...
  • Page 21 Manual pulsed single operation mode: ①" Push the torch trigger: arc is ignited and current reaches the preset value. ②" Release it: current drops to pilot arc current value. ③" Push it again: current rises to the preset value, and then turn to ②.

  • Page 22: Installation

    Installation Unpacking MMA welding DC Check the packaging for any signs of damage. Insert the cable plug with electrode holder into the “+” socket on the front panel of the welding machine, and tighten it clockwise. Carefully remove the machine and retain the packaging until the installation is complete.
  • Page 23 Operation parameters to the proper value according to the relevant Before starting any welding activity ensure that you have content in this manual, and TIG welding can be carried out. suitable eye protection and protective clothing. Also take The arc ignition mode of this machine is non contact arc the necessary steps to protect any persons within the ignition.

  • Page 24: Maintenance And Troubleshooting

    Maintenance and troubleshooting The following operation requires sufficient professional Troubleshooting knowledge on electric aspects and comprehensive Before arc welding machines are dispatched from the safety knowledge. Make sure the input cable of the factory, they have already been checked thoroughly. The machine is disconnected from the electricity supply and machine should not be tampered with or altered.
  • Page 25 Phenomena Phenomena Cause Solution The power cord is not well connected. Reconnect the power cord. The fan does not work or it works The fan does not work or it works The fan does not work or it works The fan does not work or it works The fan does not work or it works The fan does not work or it works Input failure...
  • Page 26 Phenomena Phenomena Cause Solution Replace it with electrode of better quality. Remove the oxidized layer of the electrode. The electrode you use is The electrode you use is The electrode you use is The electrode you use is Arc is hard to start Arc is hard to start Arc is hard to start Arc is hard to start...

  • Page 27: Electrical Schematic

    Electrical schematic...

  • Page 28: Parts List

    Parts list JT-200D...
  • Page 29 JT-200D Part no Description Part no Description 10014869 Front Panel 10020665 Secondary power transformer 10038551 Panel overlay 10037776 Secondary inverter driver board 10040580 Summary board 10005305 Glaze resistor 10006803 Electric current trans 10020809 Power line 10004946 Power switch 10013302 Back panel 10004919 Knob 10022039...
  • Page 30 JT-315D...
  • Page 31 JT-200D / JT-315D DIGITAL AC/DC PULSE TIG/MMA WELDING MACHINE Order code ! JT-200D, JT-315D © Wilkinson Star Limited Issue 1 January 2014 Product is subject to change without notice xxix...
  • Page 32 Appendix PROGRAMMING GUIDE FOR USERS (TIG MODE) Skip this chapter over if user-programming function (TIG mode) is not to be used. 4 programmable TIG operation modes (No.16-19) are available for this welding machine, and all the 4 modes are clearly defined when leaving the factory.
  • Page 33 mode codes. To plan and design a new TIG operation mode is actually to design a code sequence group and to program it into the welding machine. The code sequence of operation mode is composed of the following. Operation mode code sequence: C0, C1, C2, C3, C4, C5, C6, C7, C8, C9 •...
  • Page 34 During welding, users always enter into operation mode control after the torch trigger is pushed and arc is successfully ① ignited, so users do not need to care about the arc ignition requirements of welding in the code design. Operation mode control will be exited once arc stops. If users want to enter into it again, arc should be ignited for another ②...
  • Page 35 Attached Table 1 TIG operation mode code sequences list Description Code sequences Code sequences Code sequences Code sequences Code sequences Code sequences Code sequences Code sequences Code sequences Code sequences Code sequences Mode (SEE TEXT FOR DETAILS) Follow mode 1T/spot welding mode Standard 2T mode Double operation 2T mode Standard 4T mode...
  • Page 36 Attached Table 2 TIG operation mode code function Code Operation stipulation Code Operation stipulation Transfer code in torch trigger operation condition: Wait for the torch trigger operation. Stop arc if Immediate executive code: triple or quartic operation, turn to next step if Execute order X immediately.
  • Page 37 3. Operation mode programming After designing a group of operation code sequence, you can enter into the operation mode programming state and input the code sequence into the machine. The main steps of operation mode programming are described as below. Access programming state ①...

This manual is also suitable for:

200p ac/dc digitalTig seriesJt-200dJt-315d
