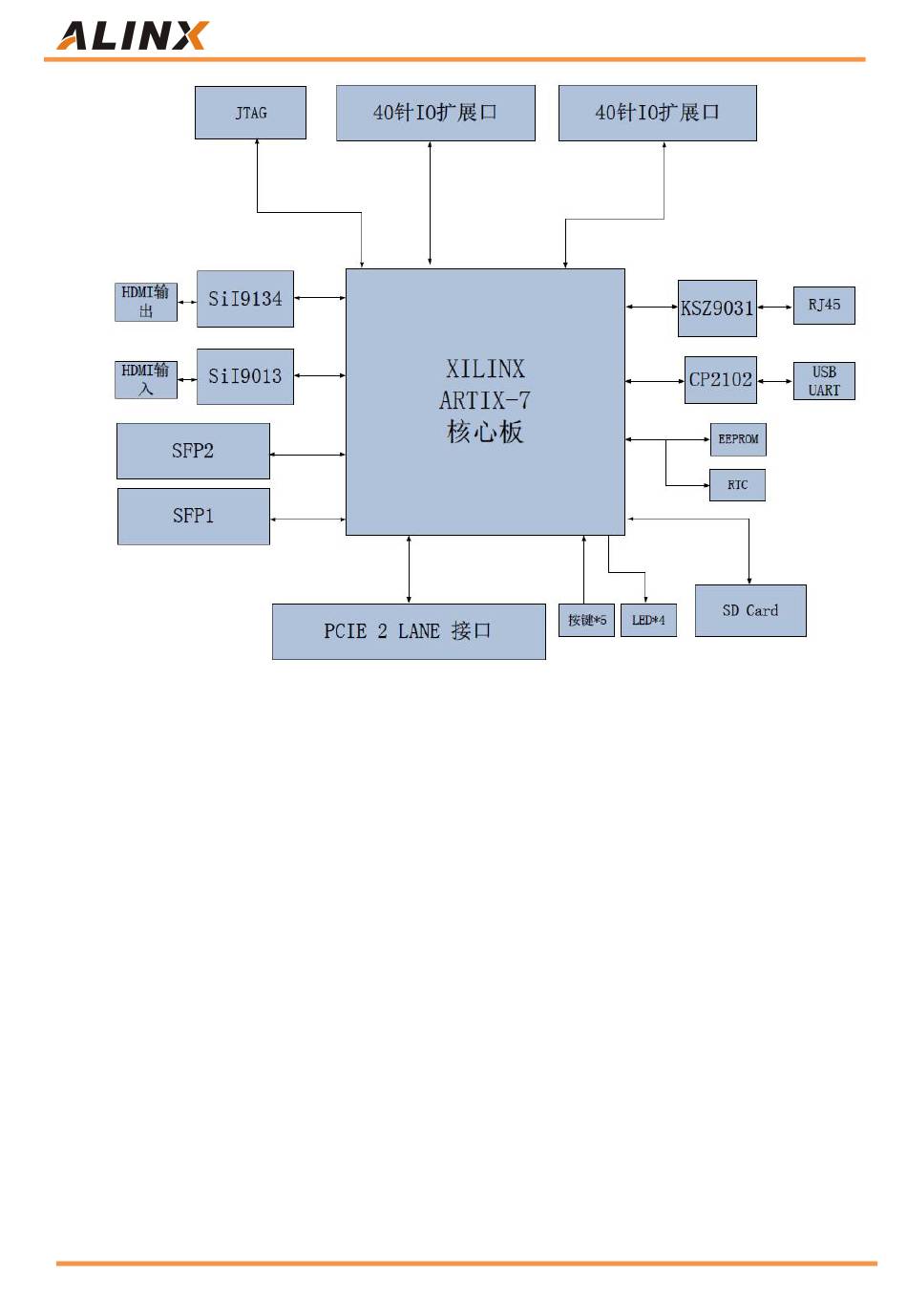

Figure 1-1-1: The Schematic Diagram of the AX7A035
Through this diagram, you can see the interfaces and functions that the
AX7A035 FPGA Development Board contains:
 Artix-7 FPGA core board
The core board consists of XC7A35T + 8Gb DDR3 + 128Mb QSPI
FLASH. There are two high-precision Sitime LVDS differential crystals,
one at 200MHz and the other at 125MHz, providing stable clock input
for FPGA systems and GTP modules.
 1-channel PCIe x2 interface
Supports PCI Express 2.0 standard, provides PCIe x 2 high-speed data
transmission interface, single channel communication rate up to
5Gbaud
