Part 3.14: LED Light

There are 7 red LEDs on the AX7A035 FPGA carrier board, one of which
is the power indicator (PWR), two are USB Uart data receiving and transmitting
indicators, and four are users LED lights (LED1~LED4). When the board is
powered on, the power indicator will light up; User LED1~LED4 are connected
to the normal IO of the FPGA. When the IO voltage connected to the user LED
is configured low level, the user LED lights up. When the connected IO voltage
is configured as high level, the user LED will be extinguished. The schematic

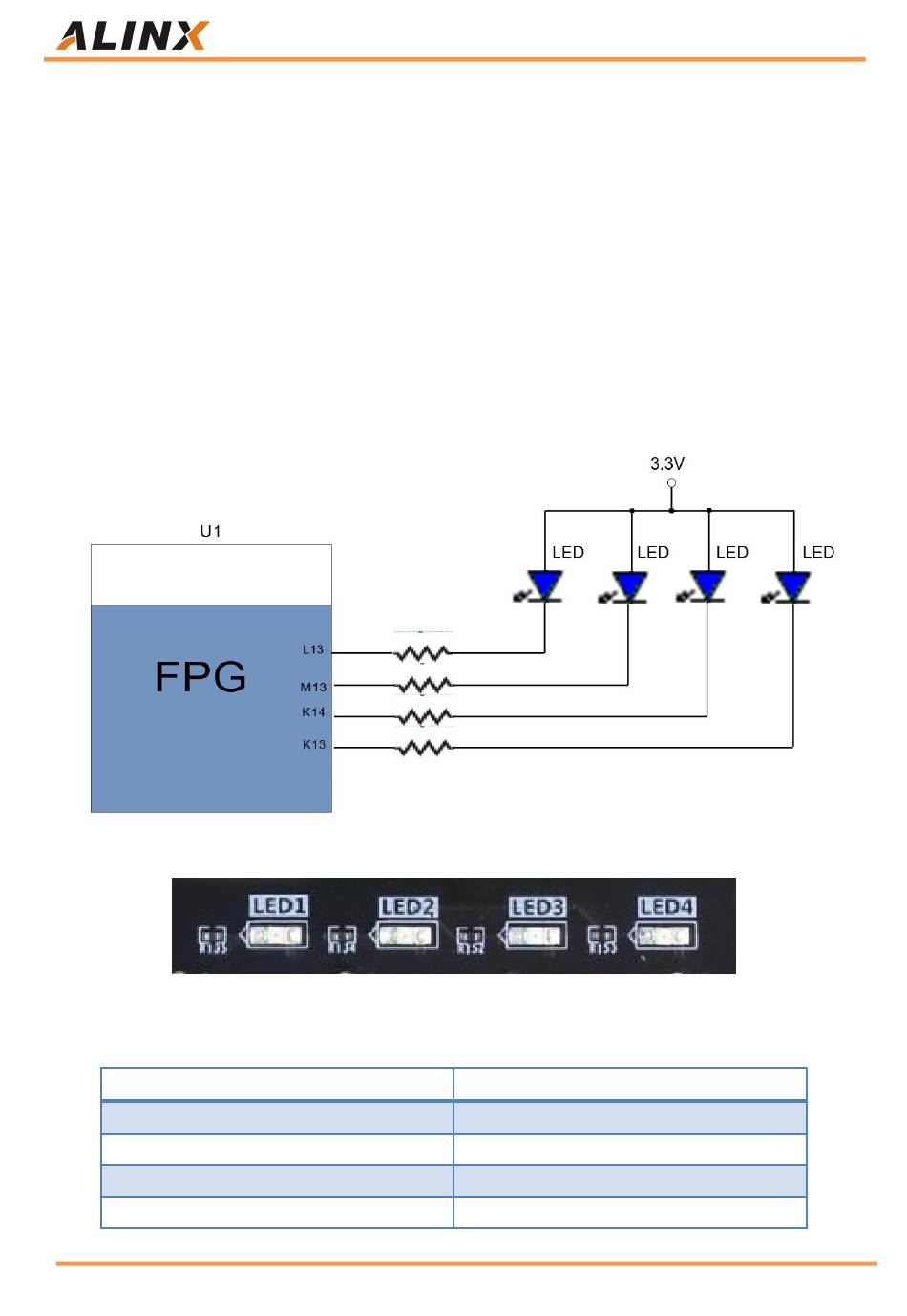

diagram of the user LEDs hardware connection is shown in Figure 3-14-1.
Figure 3-14-2: The User LED on the Carrier Board
Pin assignment of user LED lights
56 / 59
ARTIX-7 FPGA Development Board AX7A035 User Manual
Figure 3-14-1: The User LED Schematic
Signal Name
LED1
LED2
LED3
LED4
FPGA PIN
L13
M13
K14
K13
