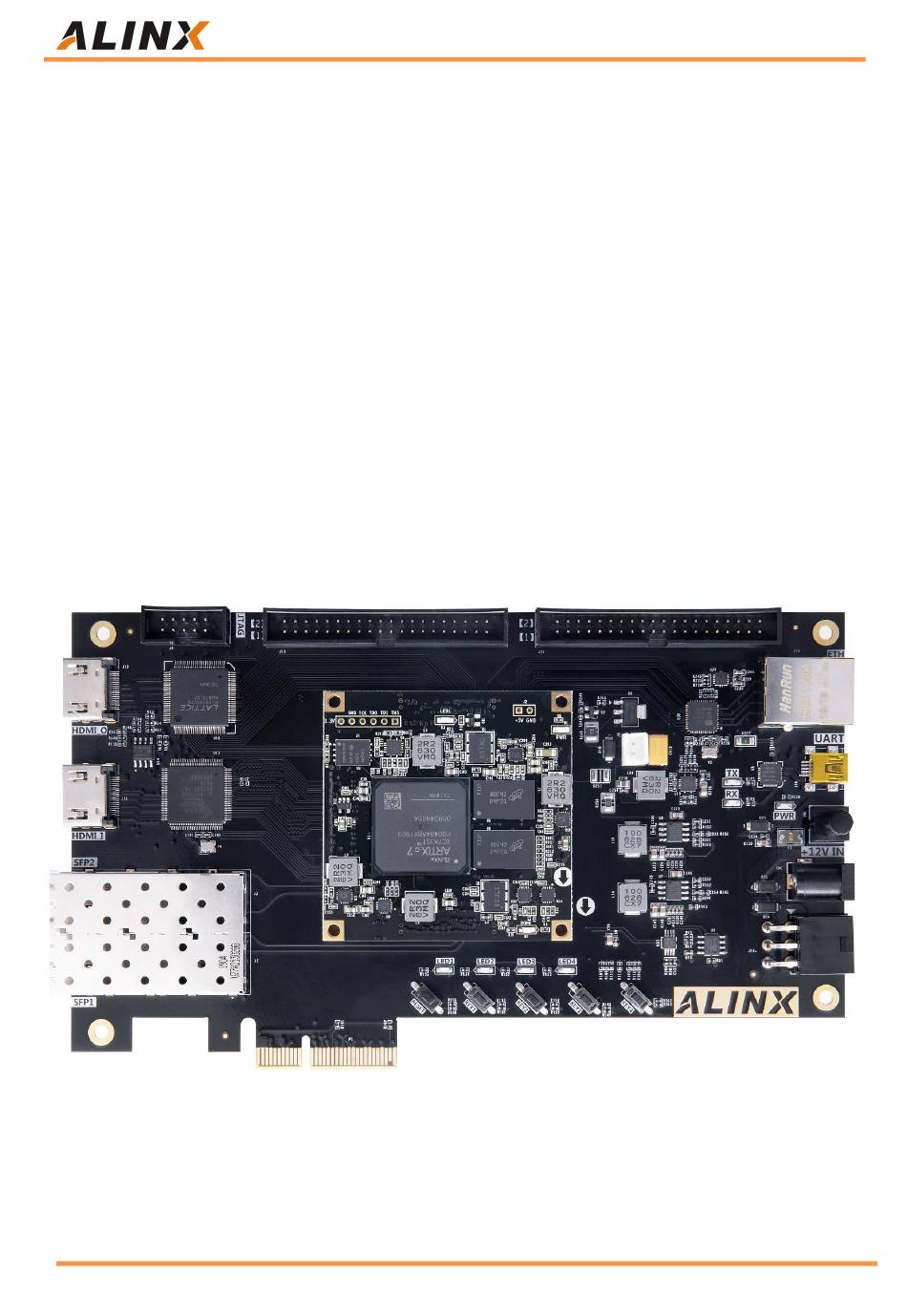

This ARTIX-7 FPGA development platform (Module: AX7A035) adopts the
core board + carrier board mode, which is convenient for users to use the core
board for secondary development.
In the design of carrier board, we have extended a wealth of interfaces for
users, such as 1 PCIex2 interface, 2 SFP cage, 1 HDMI Output interface, 1
HDMI Input interface, 1 Gigabit Ethernet interface, Uart Interface, SD card slot
etc. It meets user's requirements for PCIe high-speed data exchange, video
transmission processing and industrial control. It is a "Versatile" ARTIX-7 FPGA
development platform. It provides the possibility for high-speed video
transmission, pre-validation and post-application of network, fiber and PCIe
communication and data processing. This product is very suitable for students,
engineers and other groups engaged in ARTIX-7 FPGA development.
