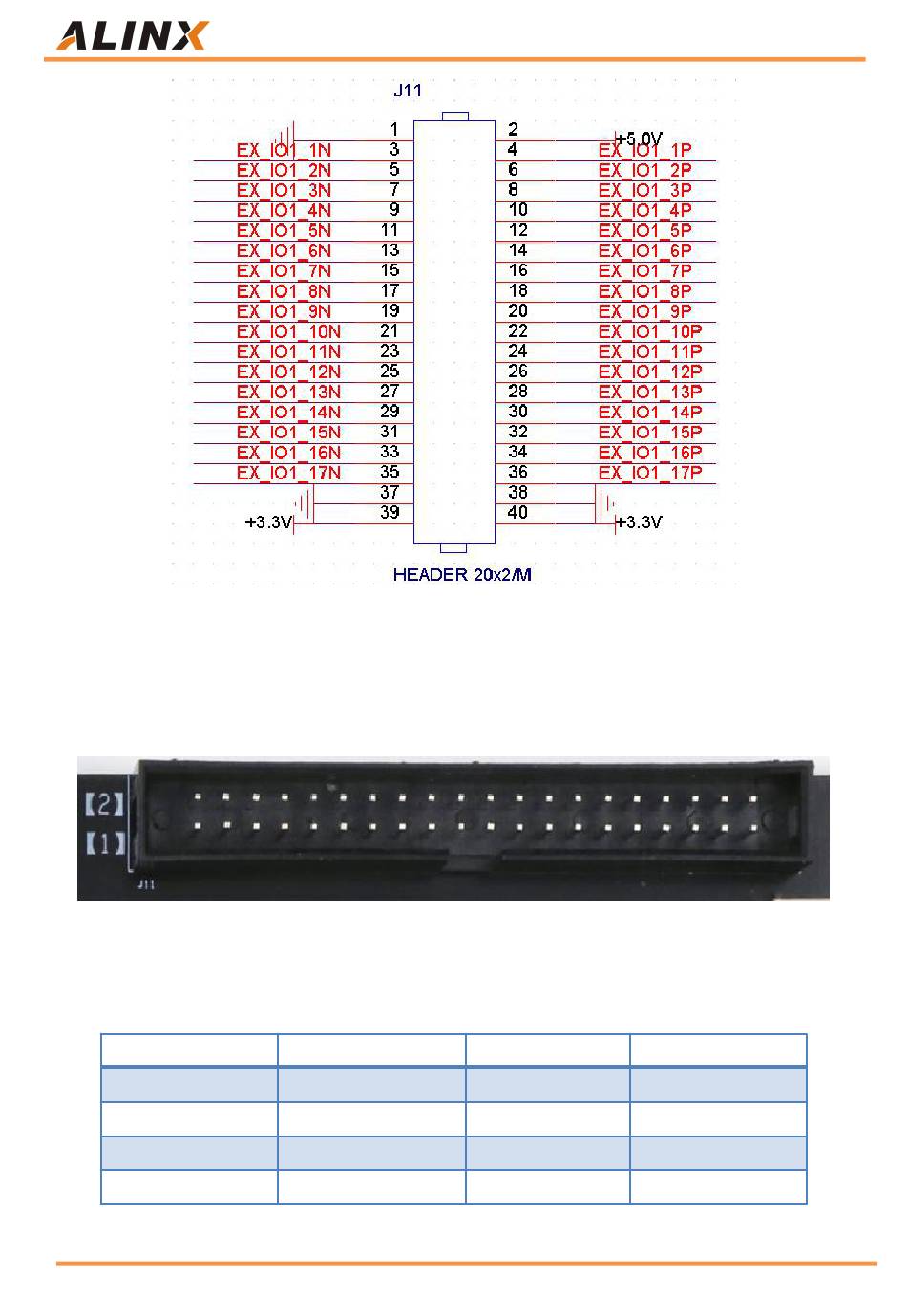

Figure 3-11-1: Expansion header J11 schematic
The figure 3-11-2 detailed the J11 expansion port on the carrier board. The
Pin1 and Pin2 of the expansion port are already marked on the board.
Figure 3-11-2: Expansion header J11 on the Carrier Board
J11 Expansion Header Pin Assignment
Pin Number
1
3
5
7
51 / 59
ARTIX-7 FPGA Development Board AX7A035 User Manual
FPGA Pin
GND
G21
C22
F19
Pin Number
2
4
6
8
FPGA Pin
+5V
G22
B22
F20
