Part 2.8: Power Interface On The Core Board - Alinx AX7A035 User Manual

GND, +3.3V these six signals.
The JTAG interface J1 on AC7A035 FPGA core board uses a 6-pin
2.54mm pitch single-row test hole. If you need to use the JTAG connector to
debug on the core board, you need to solder a 6-pin single-row pin header.
Figure 2-7-2 shows the JTAG interface J1 on the AC7A200 FPGA core board.

Part 2.8: Power Interface on the Core Board

In order to make the AC7A035 FPGA core board work alone, the core
board is reserved 2-pin power supply interface J2. If the user wants to debug
the function of the core board separately (without the carrier board), the
external device needs to provide +5V to supply power to the core board.
Figure 2-8-1：Power Interface schematic on the Core Board
23 / 59
ARTIX-7 FPGA Development Board AX7A035 User Manual

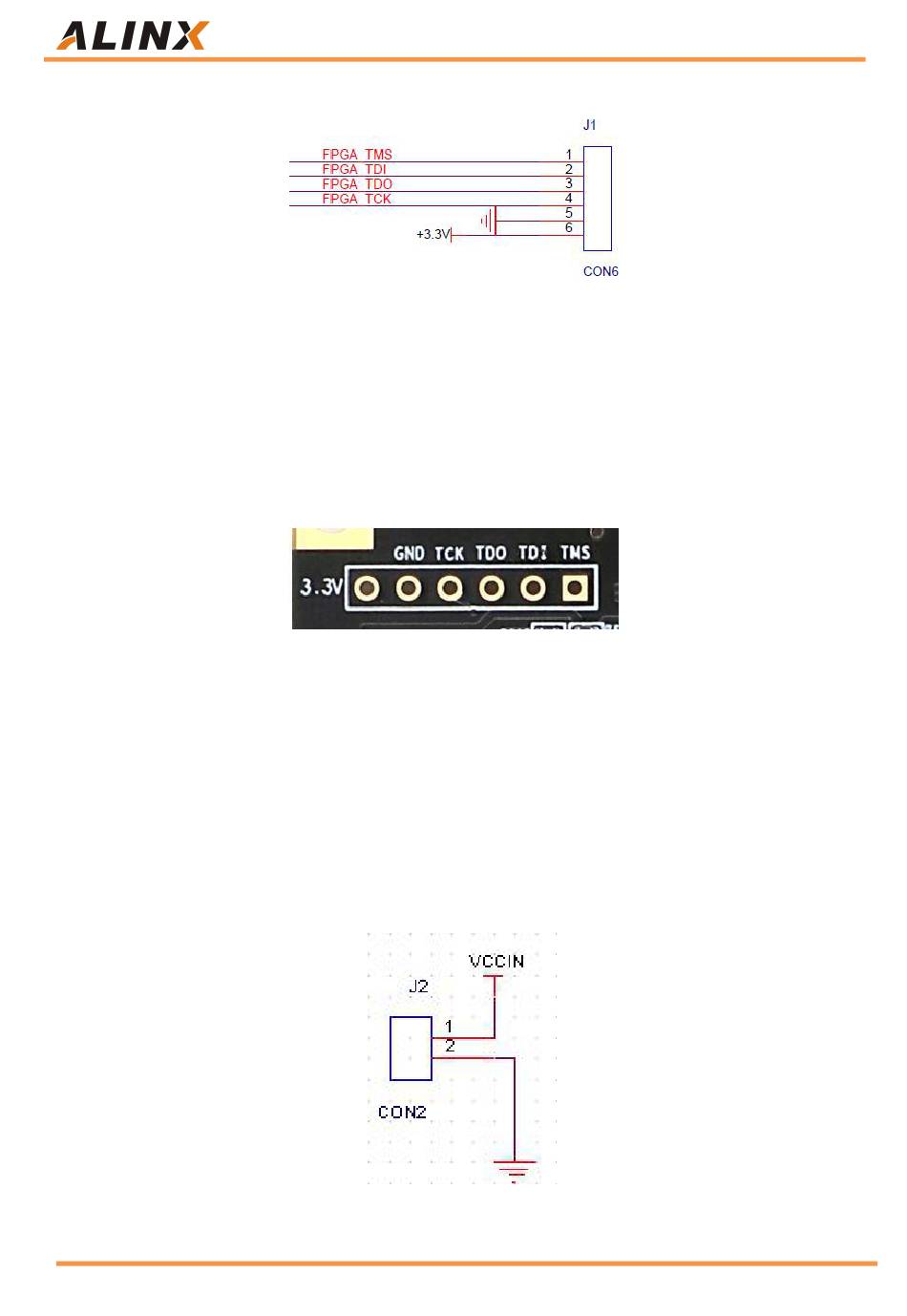

Figure 2-7-1: JTAG Interface Schematic
Figure 2-7-2 JTAG Interface on Core Board
