ARTIX-7 FPGA Development Board AX7A035 User Manual
The fan has been screwed to the development board before leaving the
factory. The power of the fan is connected to the J8 socket. The red is positive
and the black is negative.

Part 3.17: Carrier Board Size Dimension

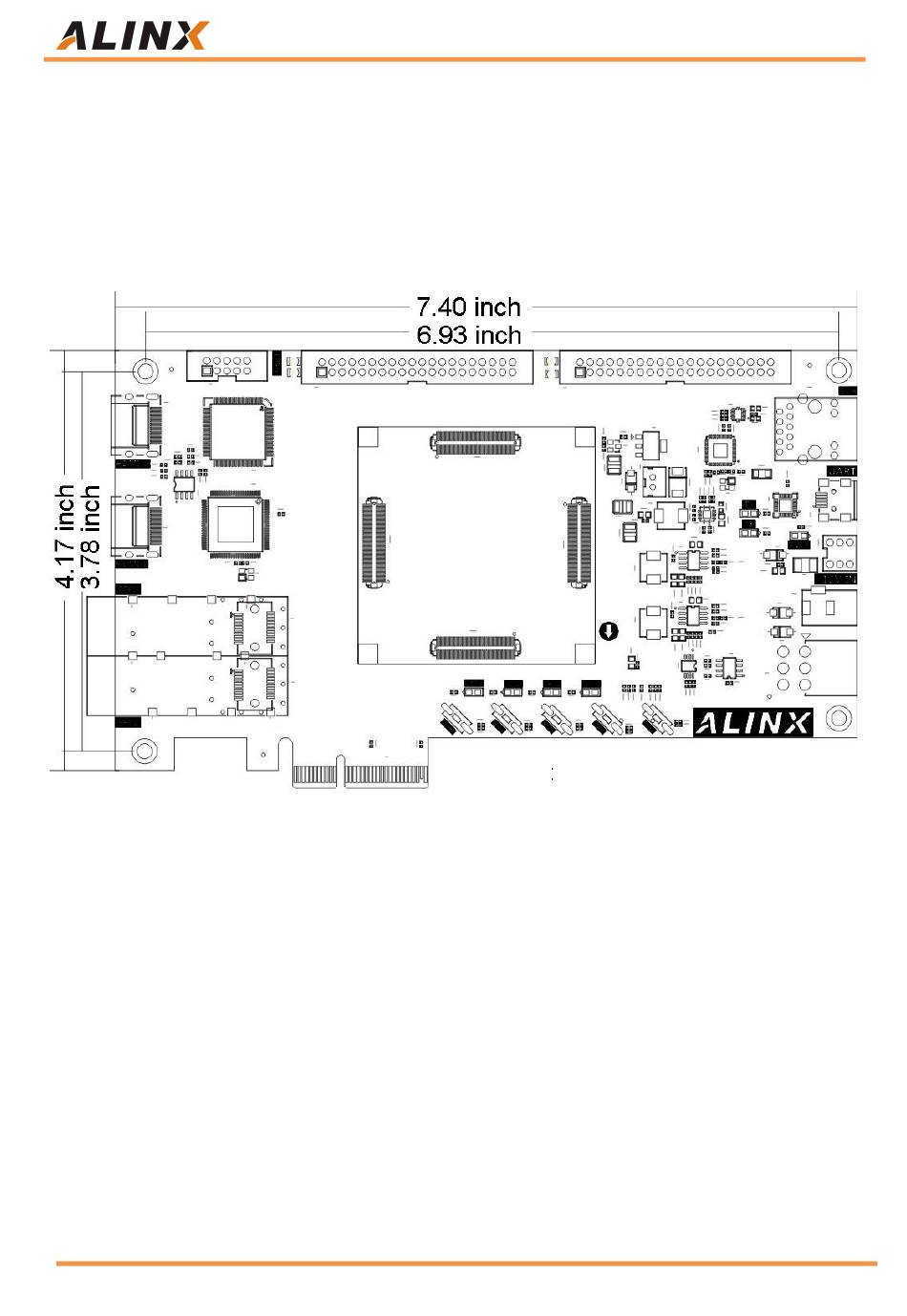

Figure 3-17-1: Carrier Board Size Dimension
