Part 2.3.2: 125MHz Active Differential Crystal
G2 in Figure 2-3-3 is the 125MHz active differential crystal, which is the
reference input clock provided to the GTP module inside the FPGA. The crystal
output is connected to the GTP BANK216 clock pins MGTREFCLK0P (F6) and
MGTREFCLK0N (E6) of the FPGA.

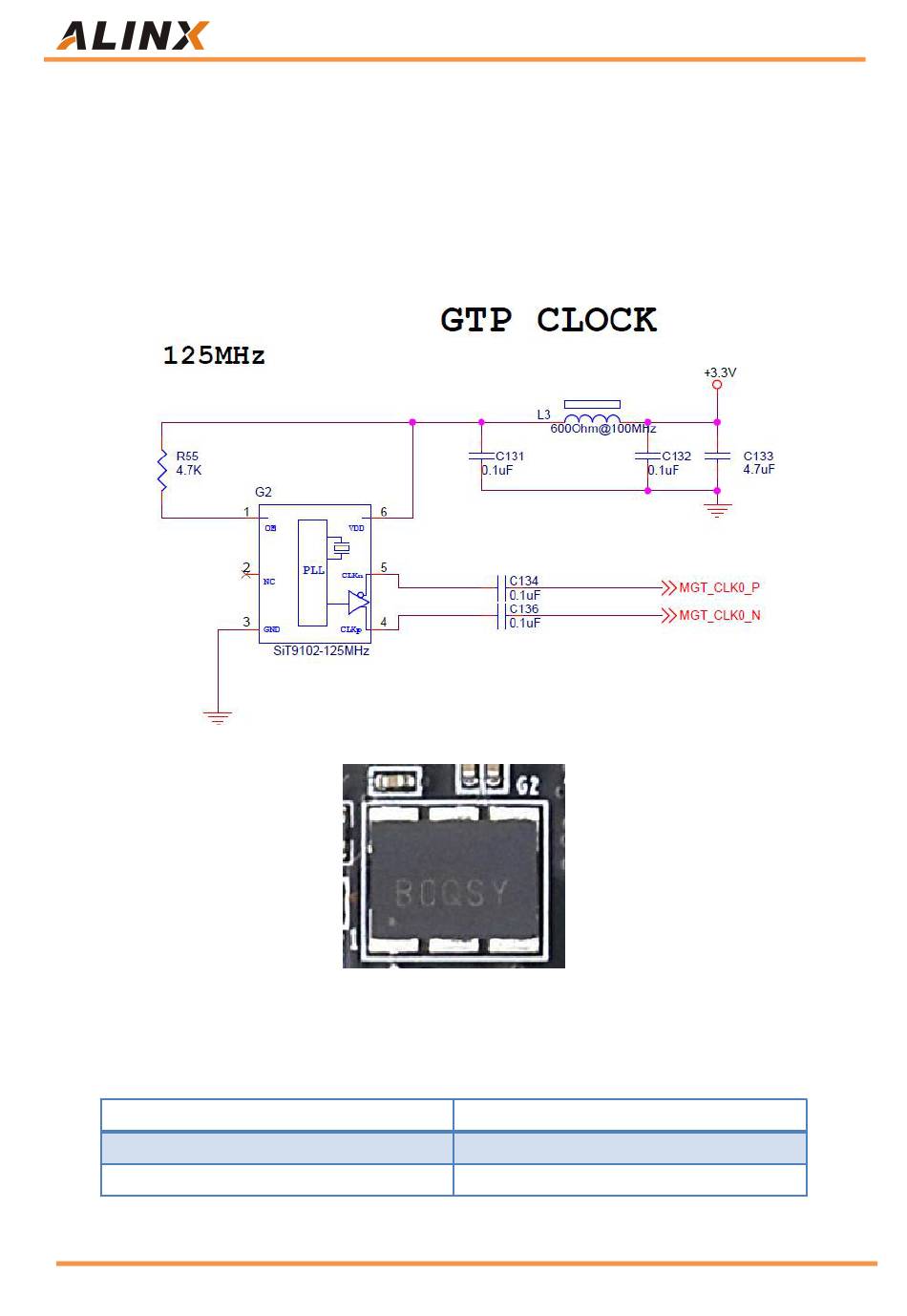

Figure 2-3-3: 125MHz Active Differential Crystal Schematic
Figure 2-3-4: 125MHz Active Differential Crystal on the Core Board
125MHz Differential Clock Pin Assignment
MGT_CLK0_P
MGT_CLK0_N
15 / 59
ARTIX-7 FPGA Development Board AX7A035 User Manual
Net Name FPGA PIN
F6
E6
