Part 3.9: Eeprom 24Lc04 - Alinx AX7A035 User Manual

Figure 3-8-3: Serial Port communication LED Indicators Schematic
USB-to-UART pin assignment:

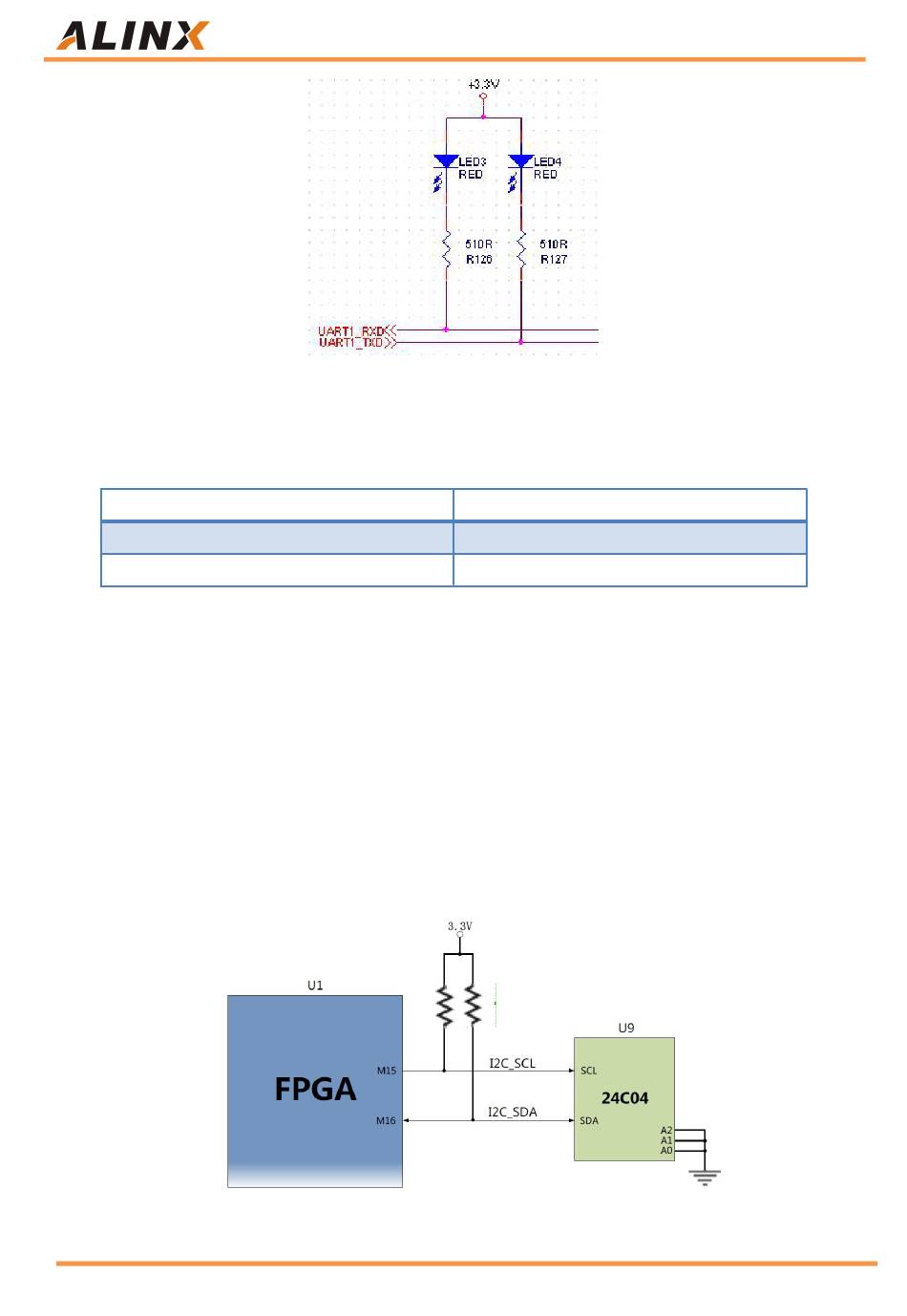

Part 3.9: EEPROM 24LC04

AX7A035 carrier board contains an EEPROM, model 24LC04, and has a
capacity of 4Kbit (2*256*8bit). It consists of two 256-byte blocks and
communicates via the IIC bus. The onboard EEPROM is to learn how to
communicate with the IIC bus. The I2C signal of the EEPROM is connected to
the BANK15 IO port on the FPGA side. Figure 3-9-1 below shows the design of
the EEPROM
48 / 59
ARTIX-7 FPGA Development Board AX7A035 User Manual
Signal Name
UART1_RXD
UART1_TXD
Figure 3-8-1: EEPROM Schematic
FPGA PIN
L14
L15
