Using
Combo
AutoTest
DSAM Product Family Quick-Start Guide Rev. G
– the meter is receiving power,
– the RF cable is connected to the meter (on the back
panel), and
– your DSAM has been configured to conduct AutoTest
measurements (see
page 20).
Use the Help system on your DSAM to learn more about
each AutoTest. Press SHIFT+? to find out what each test
does, how it works, how to configure it, how to interpret the
results, and more.
To access Combo AutoTest mode, use the arrow keys to
highlight the ComboTest option on the AutoTest mode
menu (Figure 20 on page
Combo AutoTest mode screen you see will look similar to
Figure 21.

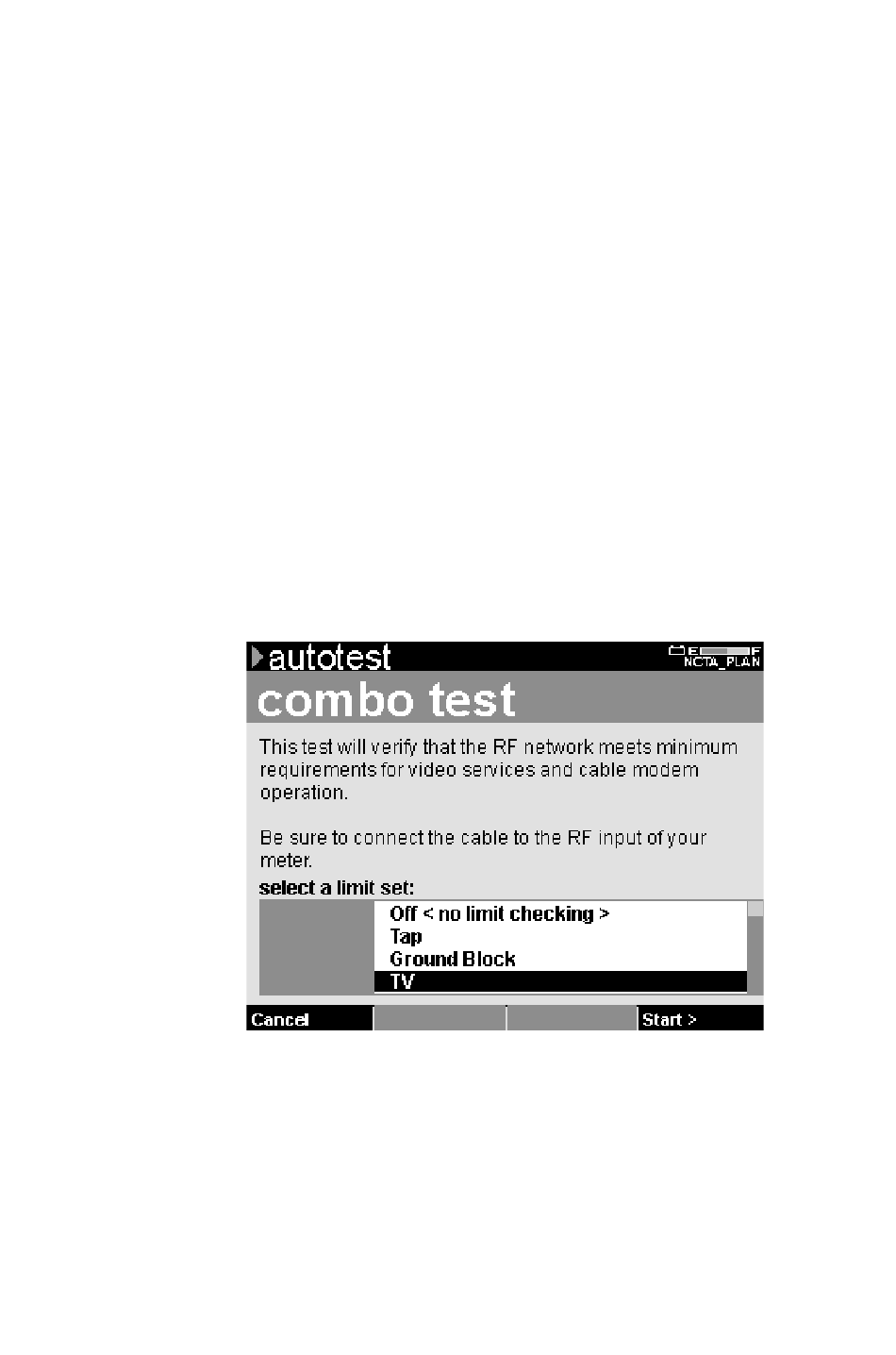

Figure 21 Combo AutoTest Mode Screen
Each Combo AutoTest is based on three types of configu-
ration:
– your configuration of one Video Channels AutoTest
and one Cable Modem AutoTest,
Chapter 2 DSAM Operation
Using AutoTest Mode
"Configuring the Meter" on
36), and press ENTER. The first
37
