Chapter 2 DSAM Operation

Configuring the Meter

Channel Plan

Configuration

A CATV system is comprised of channels representing the

channel plan for that system. Each channel is identified by

its carrier type, frequency, and other parameters. The

parameters (characteristics) of individual channels can be

edited within a plan to meet a variety of measurement

objectives.

To view the CONFIGURE CHANNEL menu

press the CONFIGURE mode key

then press the Channel Plan softkey.

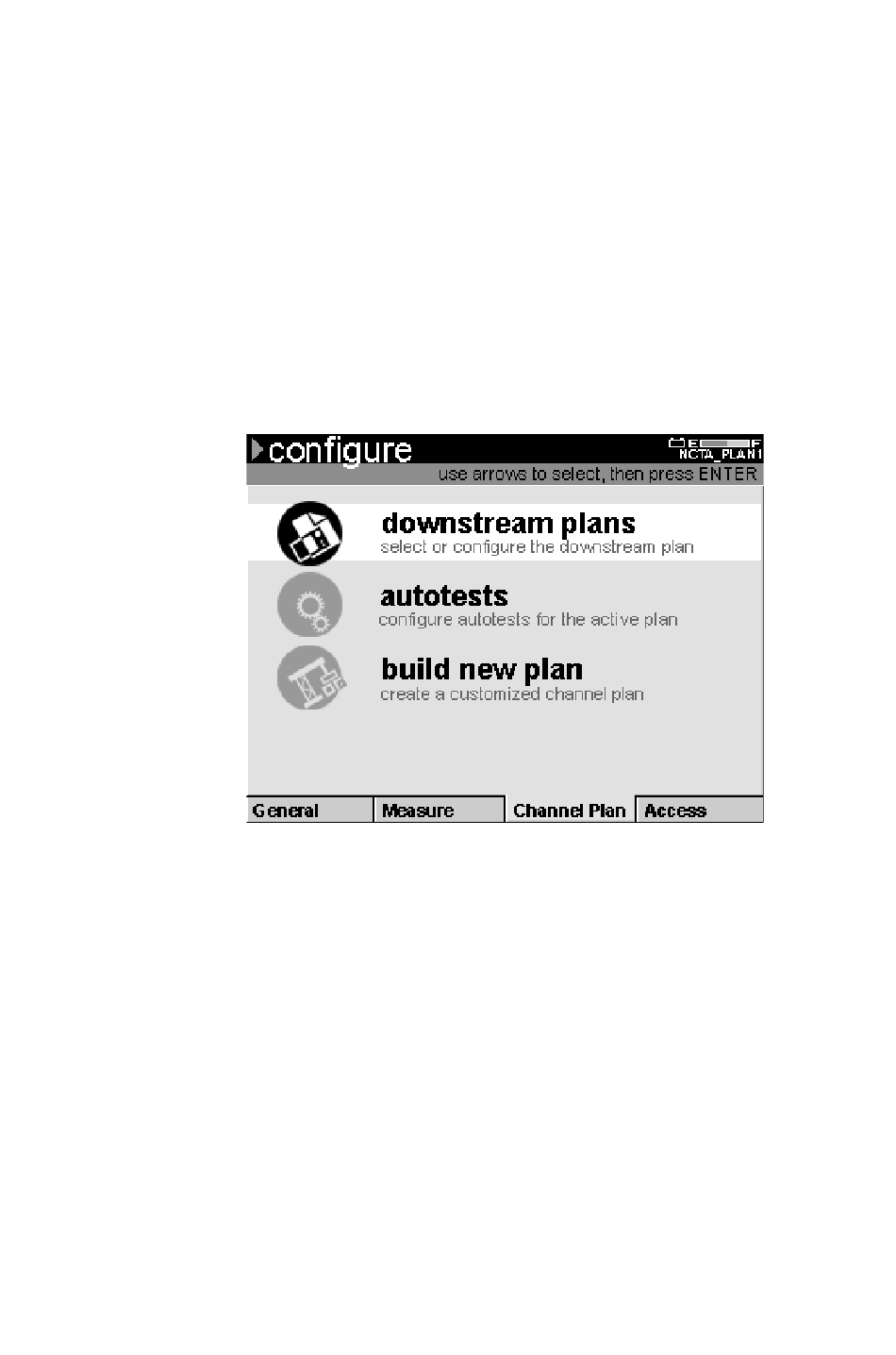

Figure 11 Configure Mode Channel Plan Menu

Your DSAM has a default (NCTA) channel plan. You can

build, clone, or synchronize customized plans.

Use channel plan configuration to:

– select a plan,

– edit a plan,

– enable/disable channels,

– configure Miniscan channels,

– configure AutoTests, and

– build a new plan

DSAM Product Family Quick-Start Guide Rev. G
