Chapter 2 DSAM Operation
Using Measure Mode
Performing
Level measurement mode views and analyzes the signal
level of each carrier within a channel (as defined by the
signal level
active channel plan).
measurements
To access Level mode, use the arrow keys to highlight the
Level option on the Measure mode menu (Figure 13 on
page 27), and press ENTER. (Or, press the SHIFT key
and the LEVEL softkey.) The first Level mode screen you
see will look similar to Figure 16.

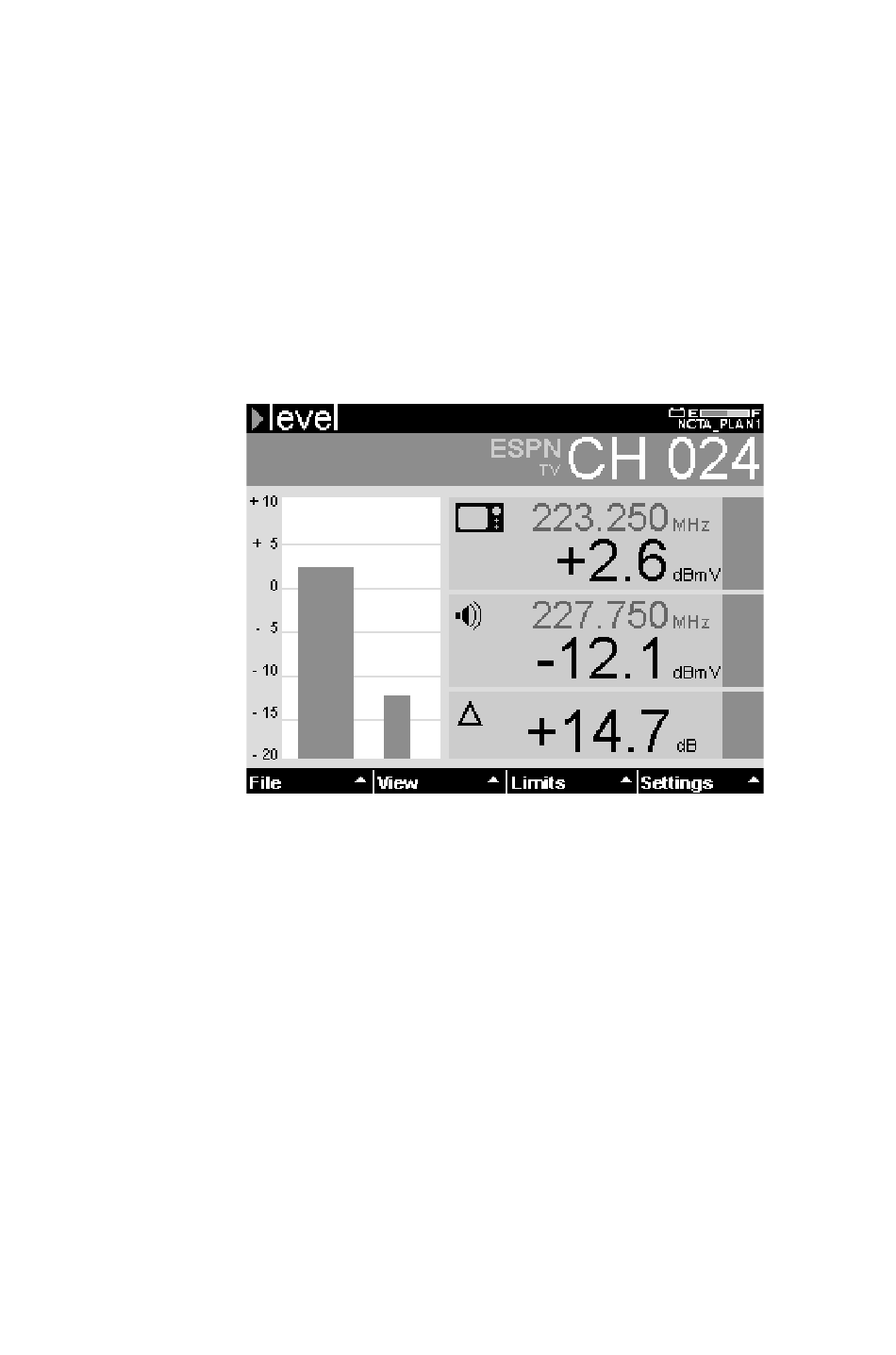

Figure 16 Level Mode Screen
To configure the Level measurement feature, select the
channel plan to be tested and the tuning mode you prefer.
If desired, you can select a set of measurement limits and
the parameters of those limit sets.
Press SHIFT+9 to automatically adjust the analog meter to
the best reference setting. Use the arrow keys to adjust
the setting by one (1) dB per key press.
The Help system offers additional instruction about these
tasks.
DSAM Product Family Quick-Start Guide Rev. G 31
