Chapter 2 DSAM Operation
Using Measure Mode
Performing
miniscan
measurements
32
Miniscan Mode views and analyzes the carrier levels of up
to twelve channels and displays the results on a single
screen.
To access Miniscan Mode, use the arrow keys to highlight
the Miniscan option on the Measure mode menu
(Figure 13 on page
SHIFT key and the MINISCAN softkey.) The first Miniscan
Mode screen you see will look similar to

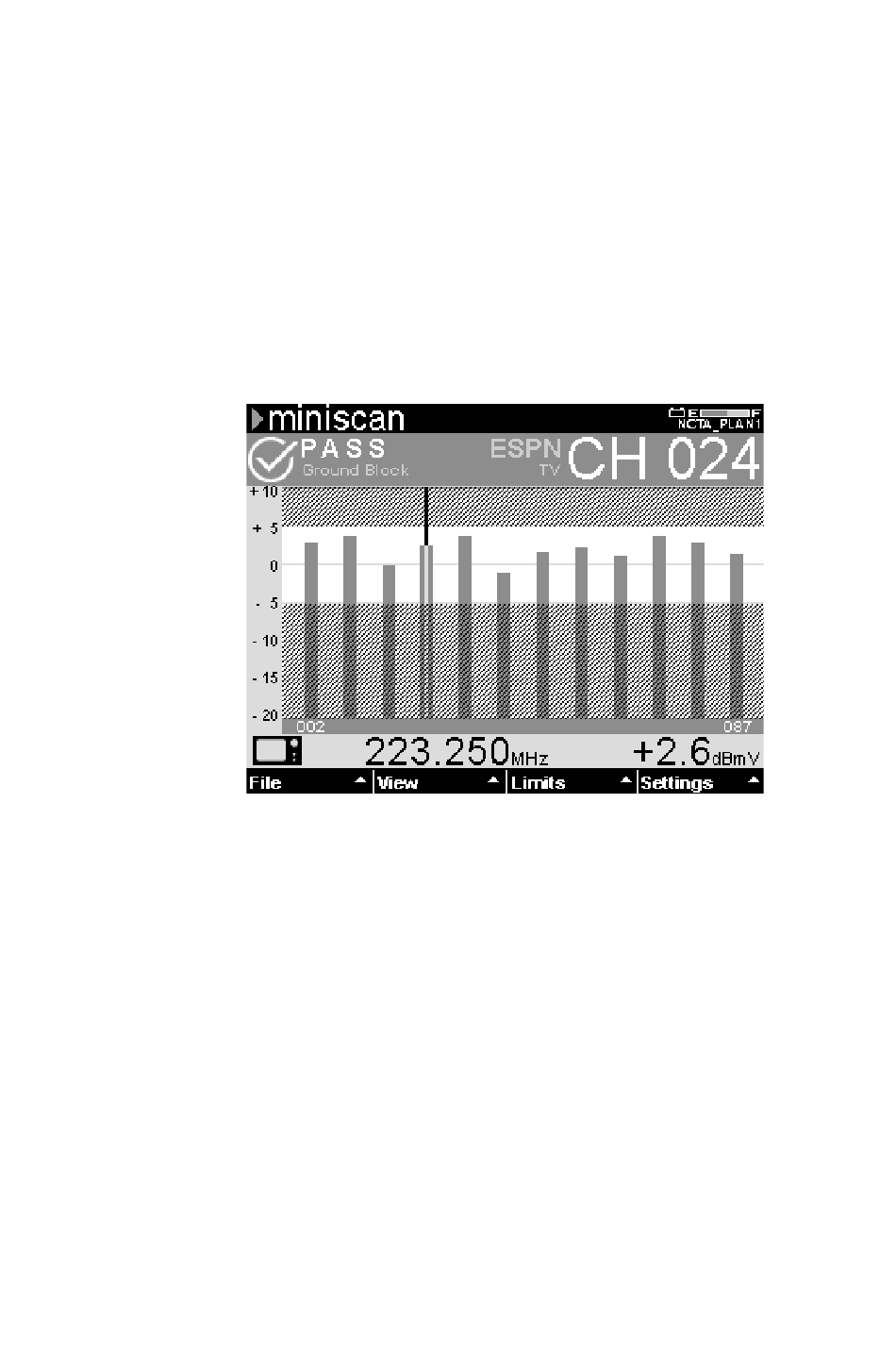

Figure 17 Miniscan Mode Screen
To configure the Miniscan measurement feature, select:
the channel plan to be tested, up to twelve channels for
Miniscan measurement, a set of measurement limits
(based on test location), the parameters of those limit sets,
and the resolution of the Miniscan graph for the best
viewing.
Use the up and down arrow keys to adjust the reference
setting of the graph by one (1) dB per key press. Use the
right and left arrow keys to move the vertical marker to the
next or previous channel.
DSAM Product Family Quick-Start Guide Rev. G
27), and press ENTER. (Or, press the
Figure 17.
