Using the
display
softkeys
DSAM Product Family Quick-Start Guide Rev. G
Press the ACCESS mode key to display the Access mode
menu (see Figure 23 on page
Press the CONFIGURE mode key to display the Configure
mode menu (see
Four Display Softkeys (directly below the display screen)
are used to select screen-specific options or to select pop-
up menus associated with each key.

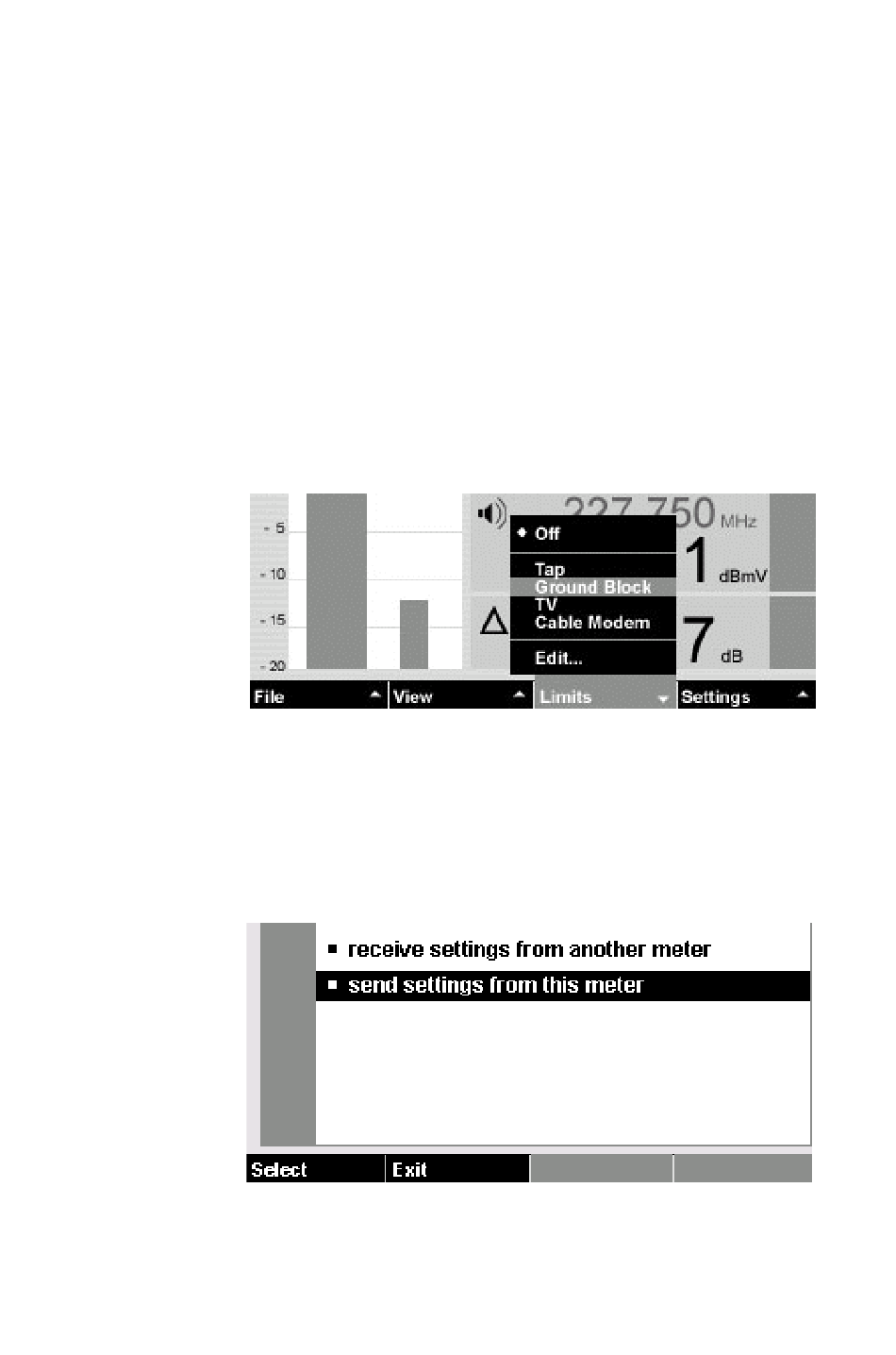

In Figure 4, the softkey below Limits was pressed to
access the Limits pop-up menu in Level Mode.
Figure 4 "Limits" Softkey Selected
In Figure 5, the softkey below Select may be pressed to
select the highlighted option; the softkey below Exit may
be pressed to exit to the previously viewed screen.
Figure 5 "Select" and "Exit" Softkey Options
Chapter 2 DSAM Operation
41).
Figure 9 on page
Using the Keypad
21).
17
