Using AutoTest Mode

DSAM Product Family Quick-Start Guide Rev. G

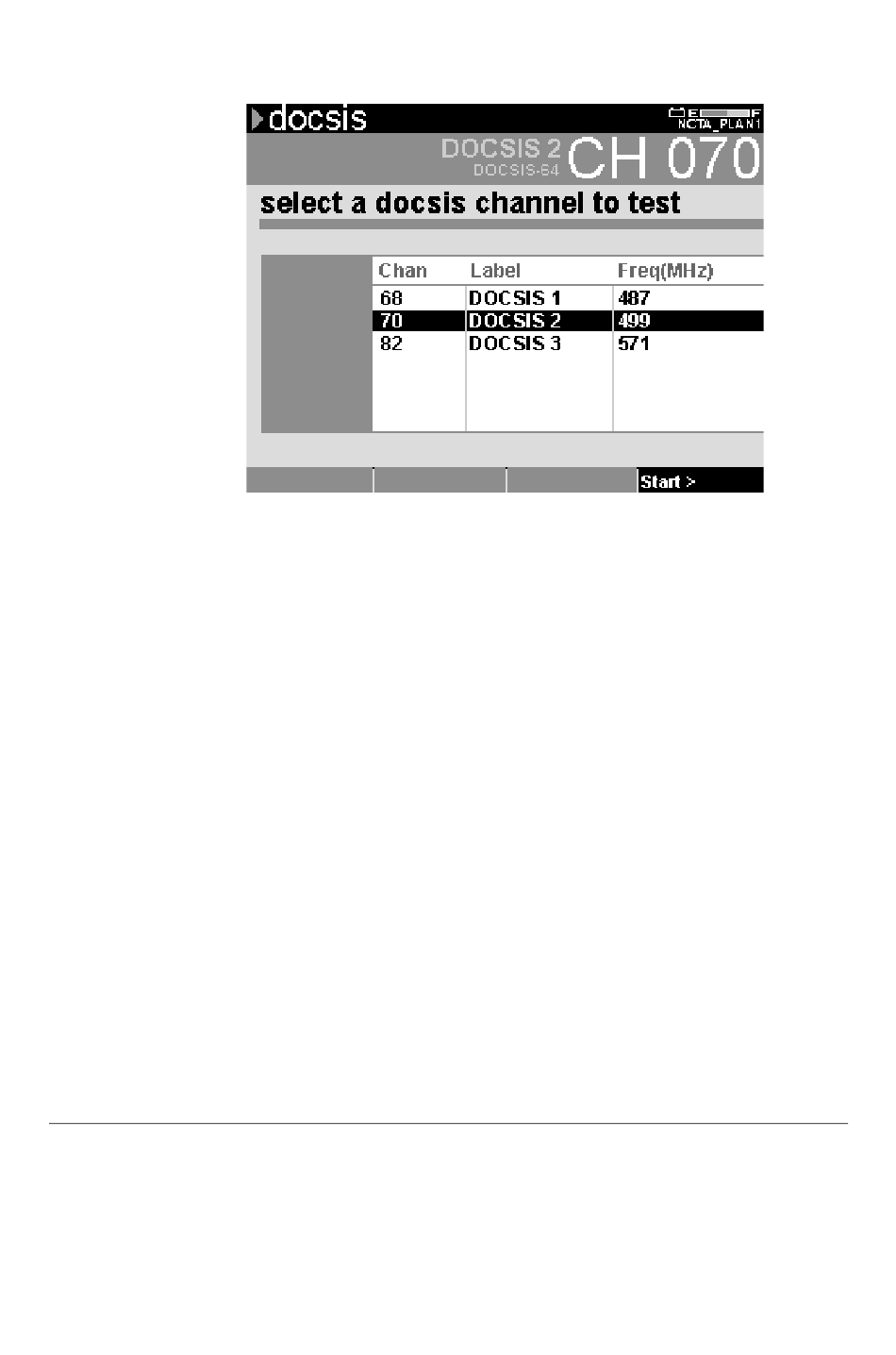

Figure 19 DOCSIS Mode Screen
To configure DOCSIS Mode:
– confirm that you are testing the correct channel plan
(plan label is in upper right corner),
– confirm that you are testing the correct DOCSIS
channel in that plan,
– confirm (if required by the system administrator) that
the roving MAC address on this meter is recognized
by the CMTS,
– select a set of measurement limits (based on test
location), and
– if necessary, edit the parameters of the limit set you
have selected.
The Help system offers additional instruction about these
tasks.
AutoTests are automated test sequences. Four types of
user-configurable AutoTests are available on this meter:
Chapter 2 DSAM Operation

Using AutoTest Mode

35
