Chapter 2 DSAM Operation
Using the Keypad
Using the
mode keys
16
– four Display Softkeys (directly below the display
screen) used to select screen-specific options or to
select pop-up menus associated with each key
– four directional Arrow Keys (located directly below
the two center softkeys) used to navigate up, down,
right, and left among the displayed menus and
measurement features
– an Enter Key used to select highlighted menu items
and input alphanumeric data
– an Exit Key used to depart from the currently viewed
screen to a previously viewed option
– four Mode Keys
meter's four primary functional modes
– twelve Alphanumeric Keys used for data entry and
for shortcut access to specific features (as a shift key
function)
– a Shift Key used in conjunction with the alpha-
numeric keys or the display softkeys for shortcut
access to specific features
– a Power Key used to turn the meter on and off.
Use the mode keys
level menu of features associated with each mode.

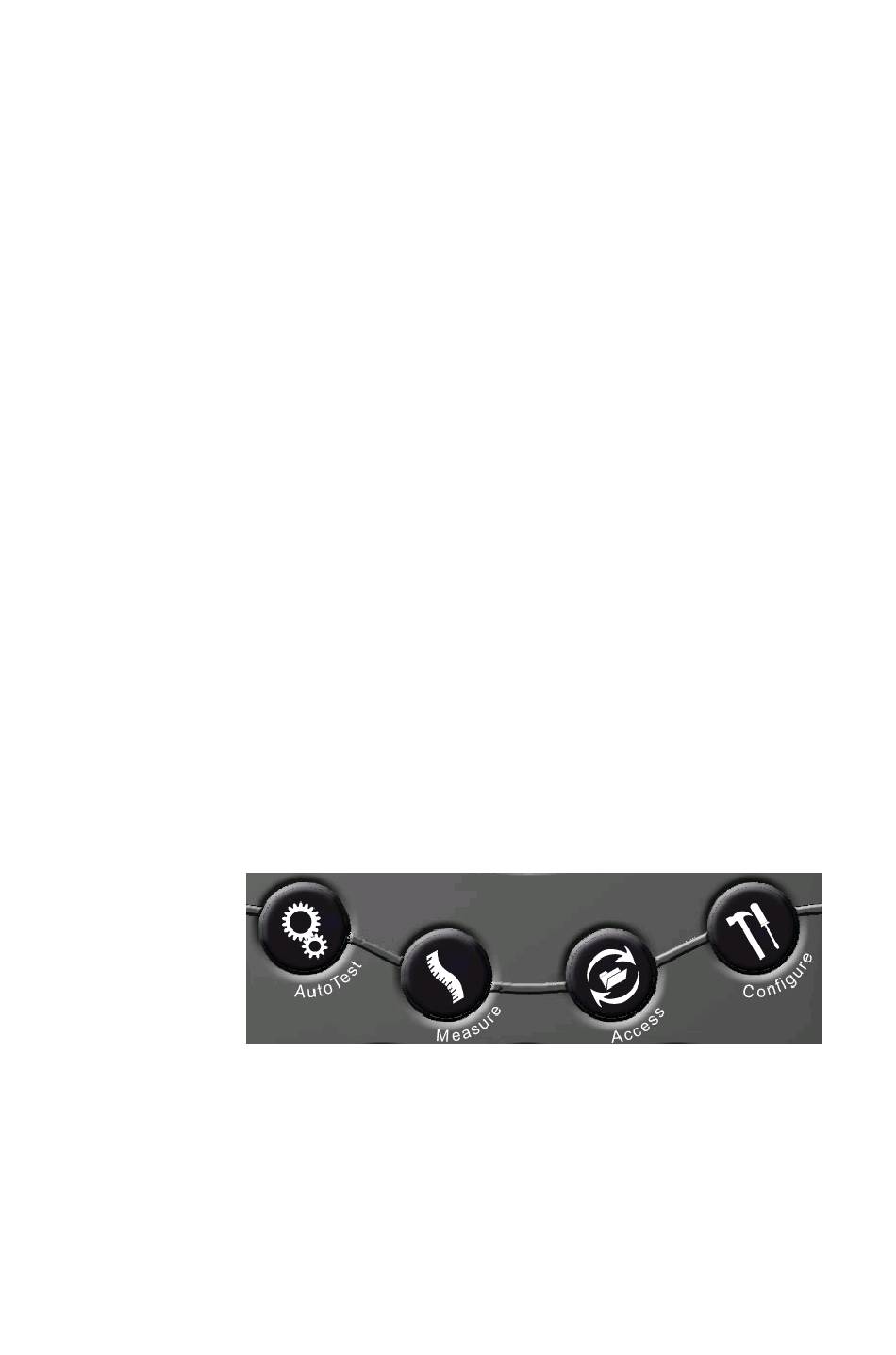

Figure 3 DSAM Mode Keys
Press the AUTOTEST mode key to display the AutoTest
mode menu (see
Press the MEASURE mode key to display the Measure
mode menu (see
DSAM Product Family Quick-Start Guide Rev. G
(Figure 3) used to access the
(Figure 3) to directly access the top
Figure 20 on page
Figure 13 on page
36).
27).
