Chapter 2 DSAM Operation
Using Measure Mode
Service
Measurement
Menu
28
Use the Help system on your DSAM to learn more about
each measurement mode. Press SHIFT+? to find out what
each option does, how it works, how to configure it, how to
interpret the results, and more.
To view the MEASURE SERVICE menu
the MEASURE mode key
press the Service softkey. Use the arrow keys to highlight
the type of measurement you wish to perform and press
ENTER to access that option.
Here's another quick way to access Measure mode
options: Press the SHIFT key to display the options above
each softkey and press the softkey directly under the
option of your choice.

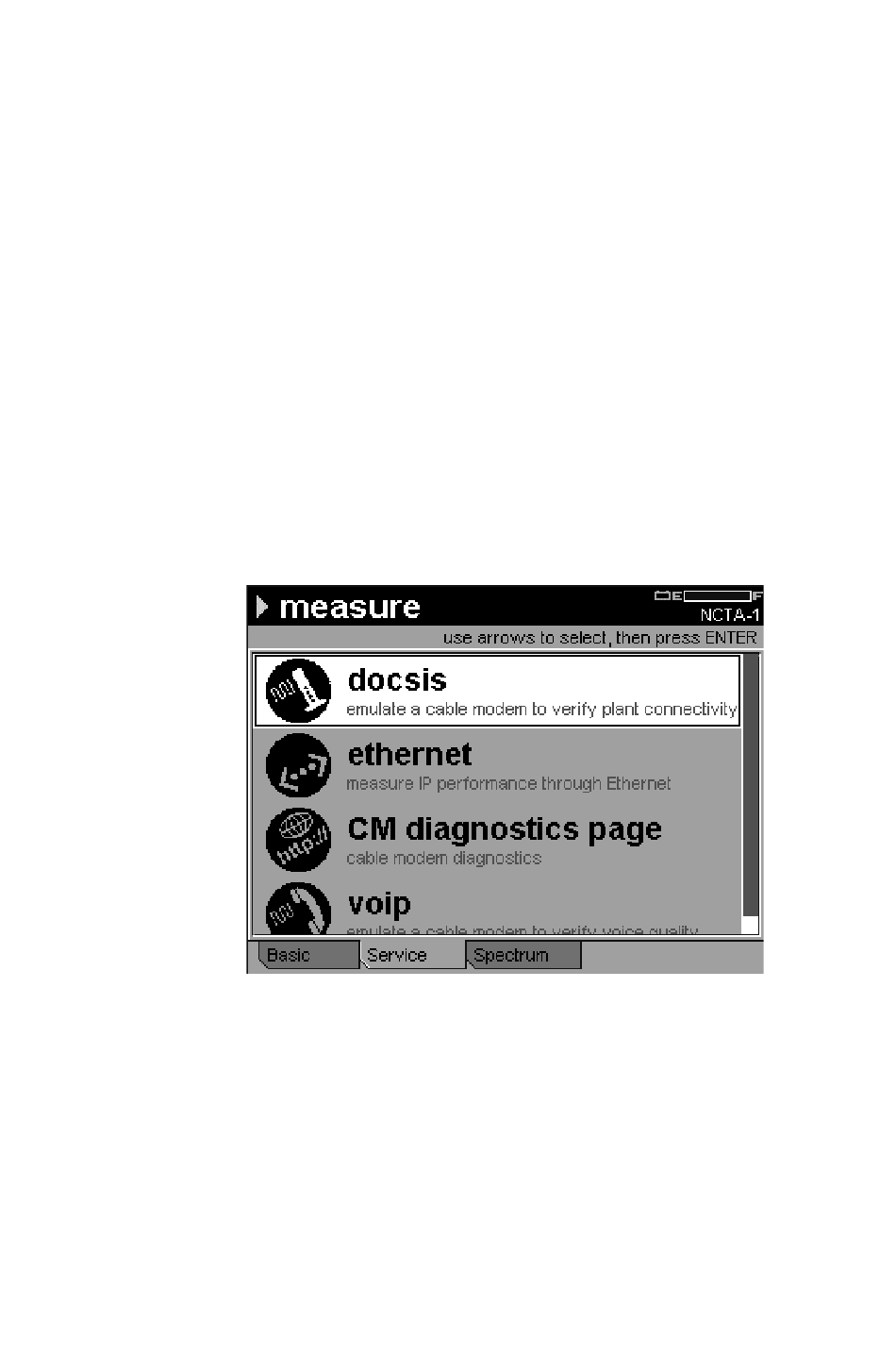

Figure 14 Measure Mode Service Menu
Use measure service menu to select:
– DOCSIS - analyzes the digital performance of a user-
selected DOCSIS channel to verify downstream/
upstream connectivity,
DSAM Product Family Quick-Start Guide Rev. G
(Figure
(Figure 3 on page
14), press
16), then
