Chapter 2 DSAM Meter Operation
Using Measure Mode

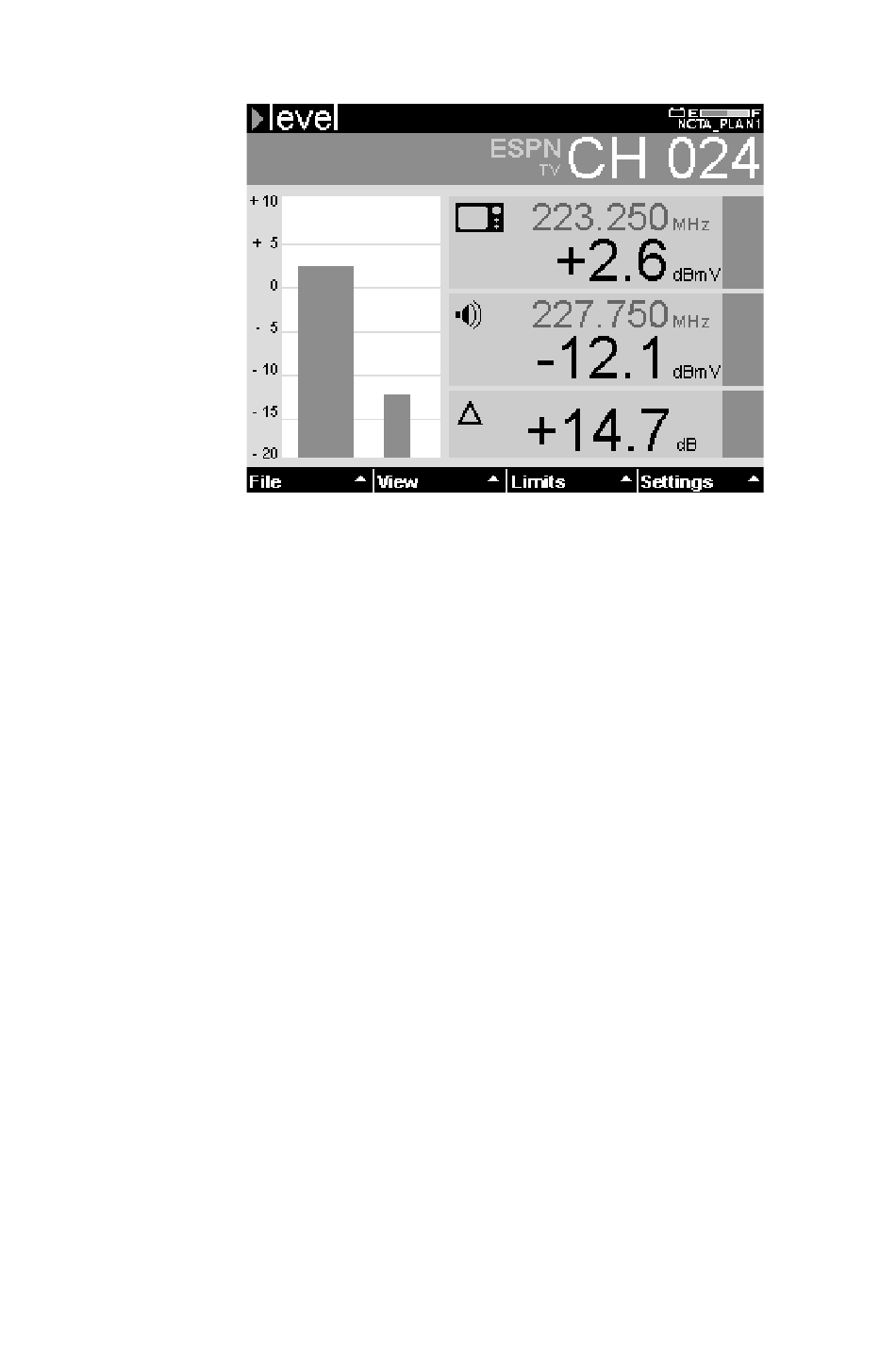

Figure 19 Level Mode Screen
To configure the Level measurement feature, select the
channel plan to be tested and the tuning mode you prefer.
If desired, you can select a set of measurement limits and
the parameters of those limit sets.
Performing
Miniscan Mode views and analyzes the carrier levels of up
to twelve channels and displays the results on a single
MiniScan
screen.
Measurements
To access Miniscan Mode, use the arrow keys to highlight
the Miniscan option on the Measure mode menu
(Figure 15 on page 30), and press Enter. Or, press the
Shift key and the MiniScan softkey.) The first Miniscan
Mode screen you see will look similar to Figure 20 on
page 34.
DSAM Product Family Quick-Start Guide Rev. 001 33
