Chapter 2 DSAM Meter Operation
Using Measure Mode
Performing
Signal level
Measurements
32

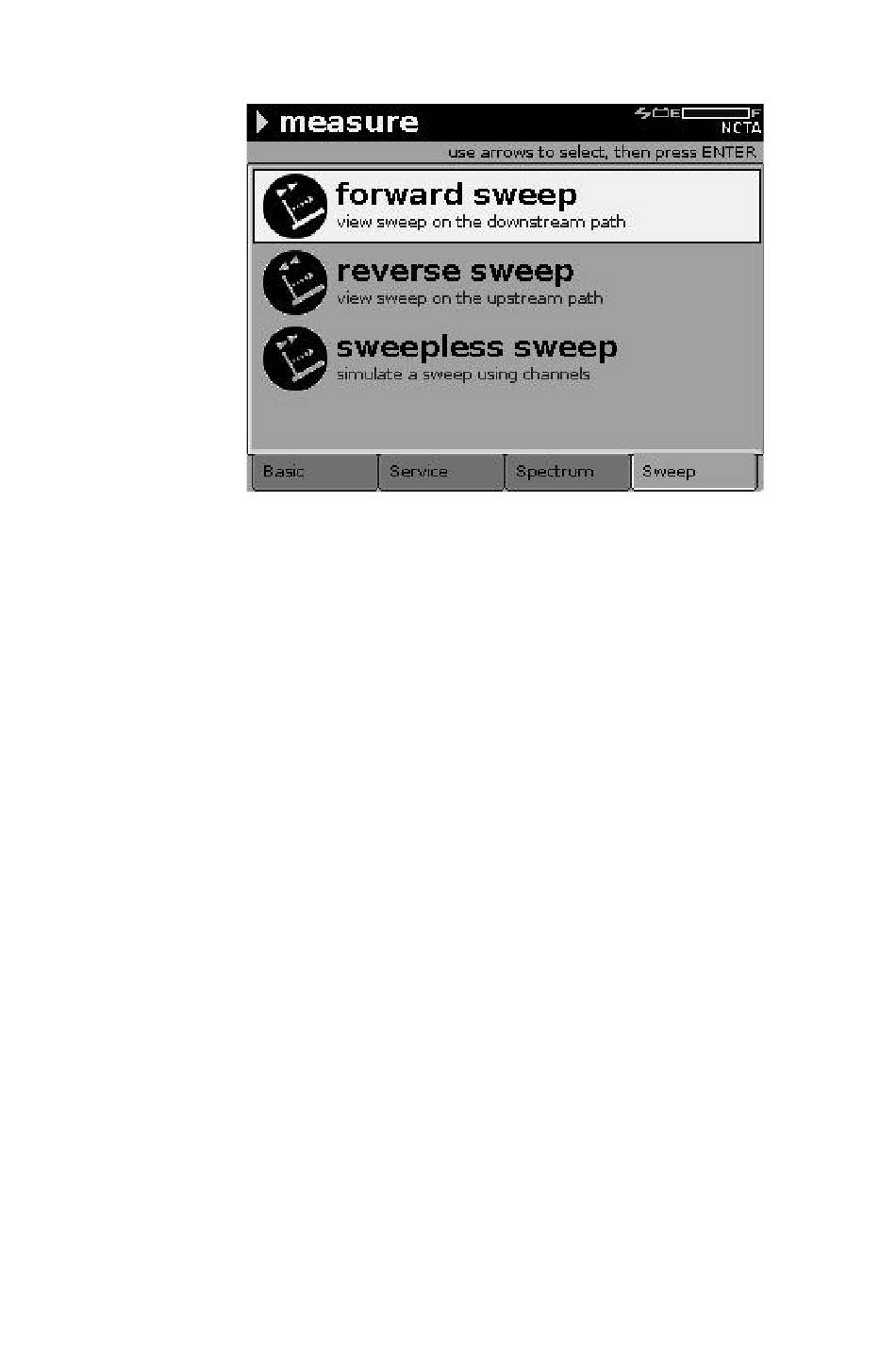

Figure 18 Measure Mode Sweep Menu
Level measurement mode views and analyzes the signal
level of each carrier within a channel (as defined by the
active channel plan).
To access Level mode, use the arrow keys to highlight the
Level option on the Measure mode menu
page 30), and press Enter. (Or, press the Shift key and
the Level softkey.) The first Level mode screen you see
will look similar to
DSAM Product Family Quick-Start Guide Rev. 001
Figure 19 on page
(Figure 15 on
33.
