Configuring the Meter
Measurement
Configuration
Channel Plan
Configuration
26
To view the Configure Measure menu
page 26), press the Configure mode key
page 18), then press the Measure softkey.

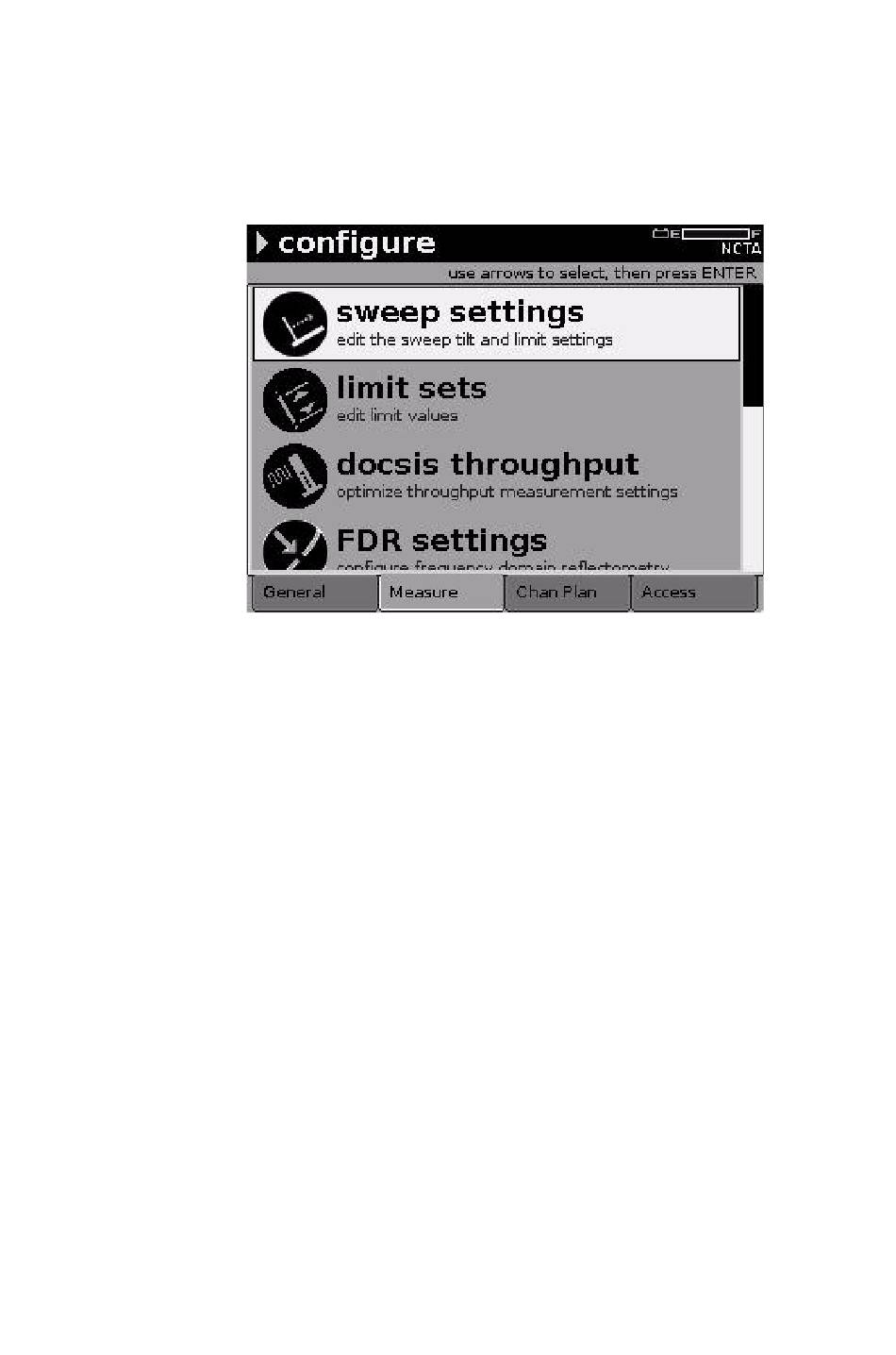

Figure 12 Configure Mode Measure Menu
Use measure configuration to specify:
– sweep settings
– limit sets
– DOCSIS® throughput
– FDR settings
– other (measurement) settings, such as the roving
MAC address for cable modem tests
– VoIPCheck
– test point compensation
– loopback reference
A CATV system is comprised of channels representing the
channel plan for that system. Each channel is identified by
its carrier type, frequency, and other parameters. The
